2017 Suzuki RV200L7 Battery Holder Diagram

← All diagrams

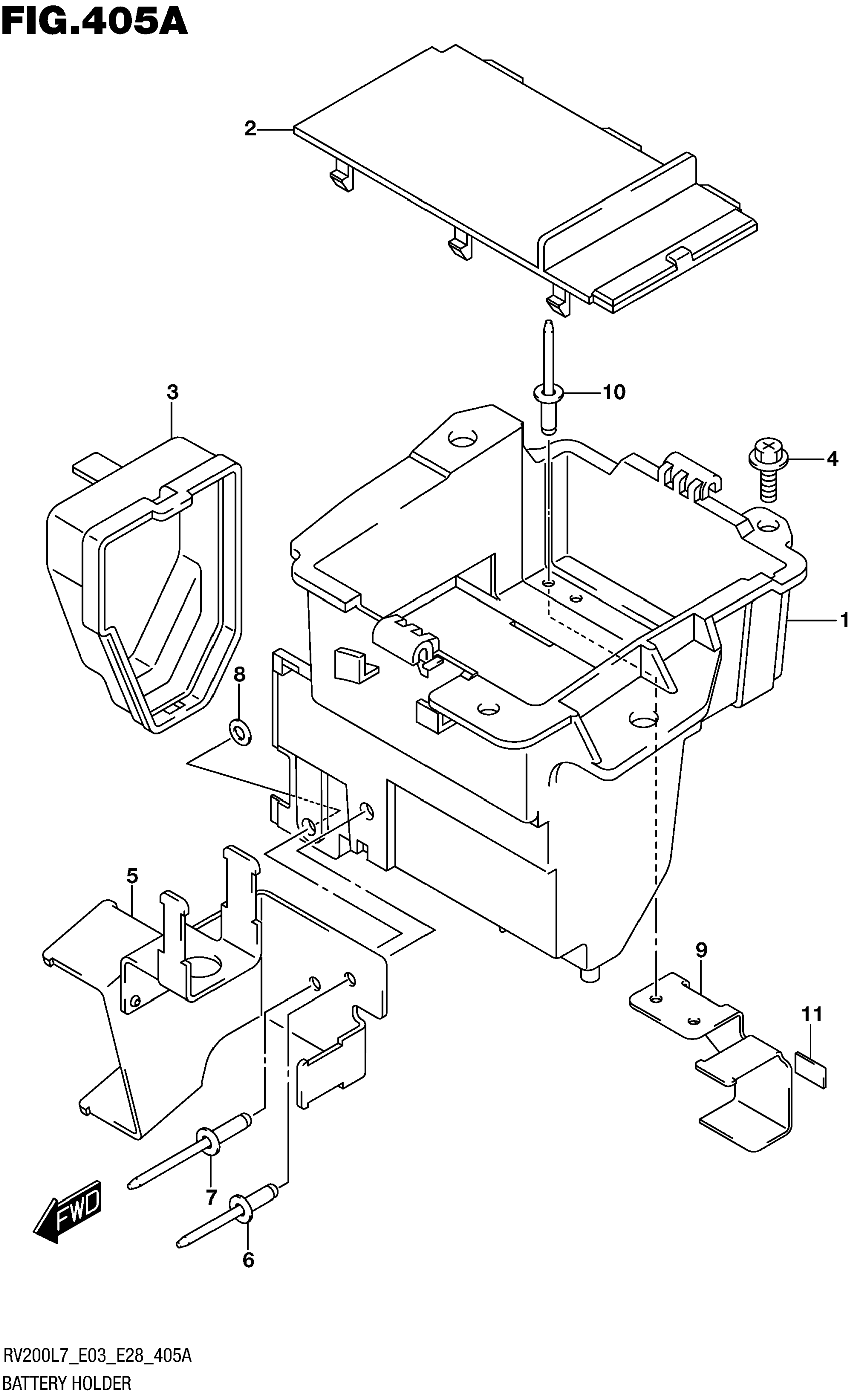

Find the part on the Battery Holder diagram for your 2017 Suzuki RV200L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RV200L7 Battery Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, BATTERY

47411-13G10

1
Out of stock

2

COVER, BATTERY HOLDER

47413-13G01

1
Out of stock

3

CAP, BATTERY HOLDER

47421-13G10

1
Out of stock

4

SCREW (6X16)

09122-86005

2
Out of stock

5

PLATE, ELECTRIC PARTS

47410-13G10

1
Out of stock

6

RIVET

09229-04038

1
Out of stock

7

RIVET

09229-04020

1
Out of stock

8

WASHER

08322-0104A

1
Out of stock

9

PLATE, FUEL CUT SENSOR

47414-13G60

1
Out of stock

10

RIVET

09229-04038

2
Out of stock

11

CUSHION, FUEL CUT SENSOR PLAT | CUT AS REQUIRED

47161-19C00

1
Out of stock
