1972 Yamaha RT2MX (RT2MX) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1972 Yamaha RT2MX (RT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

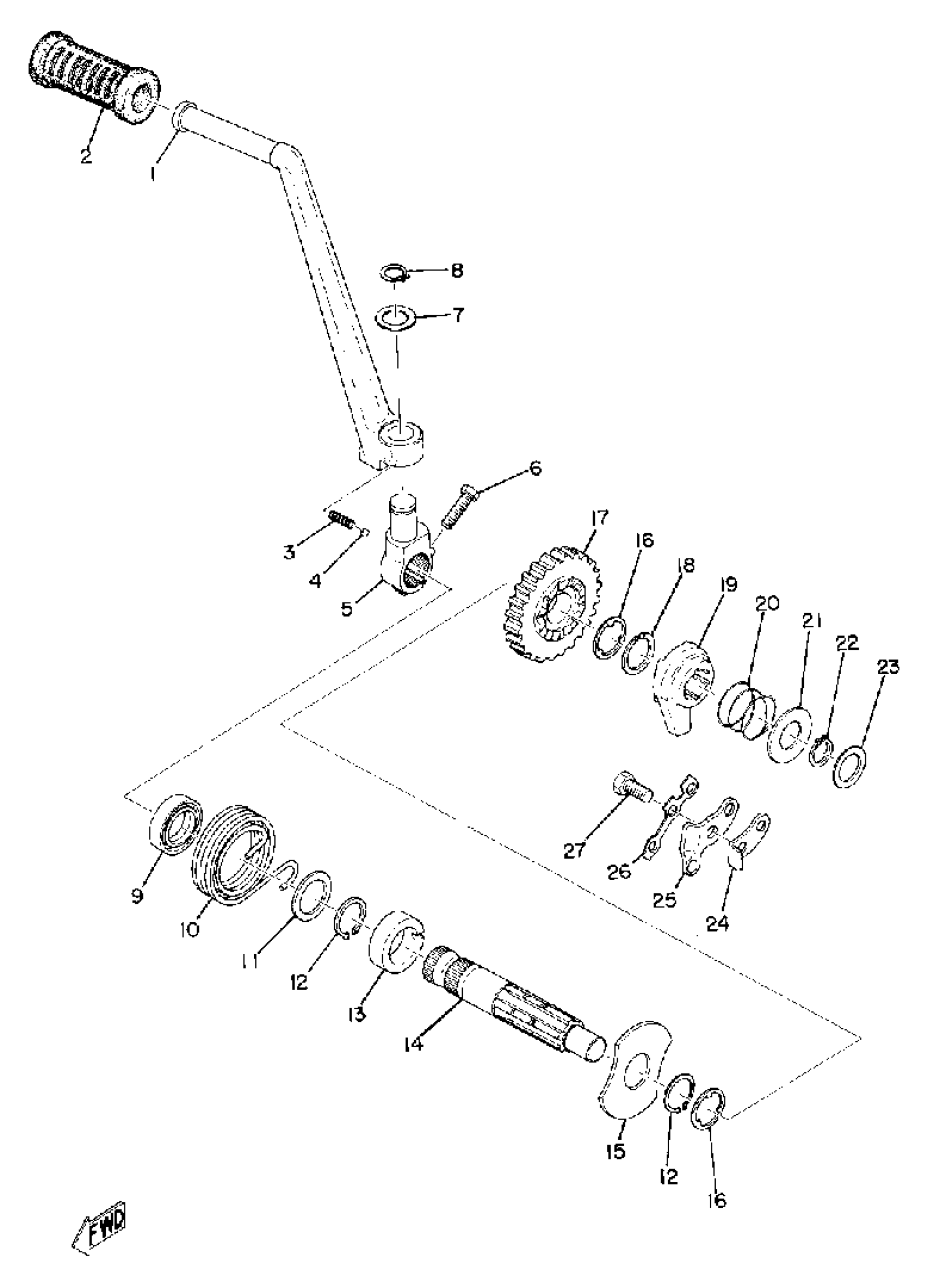

1972 Yamaha RT2MX (RT2MX) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK, KICK

(322-15611-02-91)

1
Out of stock

2

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

3

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

4

BALL (12R)

93507-32031-00

1
Out of stock

5

NO LONGER AVAILABLE

322-15621-01-00

1
Out of stock

6

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

7

WASHER, PLATE (2K7)

90201-17682-00

1

$1.71

In stock

8

CIRCLIP (E-12)

93430-12022-00

1
Out of stock

9

OIL SEAL (20X30X6-648)

93101-20048-00

1

$7.31

In stock

10

SPRING TORSION 291156650000

90508-32061-00

1
Out of stock

11

SHIM 1

(137-17427-00-09)

1
Out of stock

12

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

13

SPACER (278-15666-01)

278-15666-00-00

1
Out of stock

14

AXLE, KICK

308-15661-00-00

1
Out of stock

15

COVER,SPRING

278-15676-00-00

1
Out of stock

16

WASHER, CLAW (168-15653-00)

90214-16009-00

1
Out of stock

17

GEAR, KICK (24T)

308-15641-00-00

1
Out of stock

17

GEAR, KICK (24T)

308-15641-00-00

1
Out of stock

18

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

19

WHEEL, RATCHET

(308-15671-00-00)

1
Out of stock

20

SPRING COMPRESSION168156750000

90501-16107-00

—
Out of stock

21

WASHER, PLAIN (1JL)

90201-155K6-00

—
Out of stock

22

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

23

SHIM

132-15644-00-00

1
Out of stock

24

STOPPER

214-15668-00-00

1
Out of stock

25

GUIDE, RATCHET WHL

(291-15674-00-00)

1
Out of stock

26

WASHER, LOCK

(291-15686-00-00)

1
Out of stock

27

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock
