1972 Yamaha RT2MX (RT2MX) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1972 Yamaha RT2MX (RT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

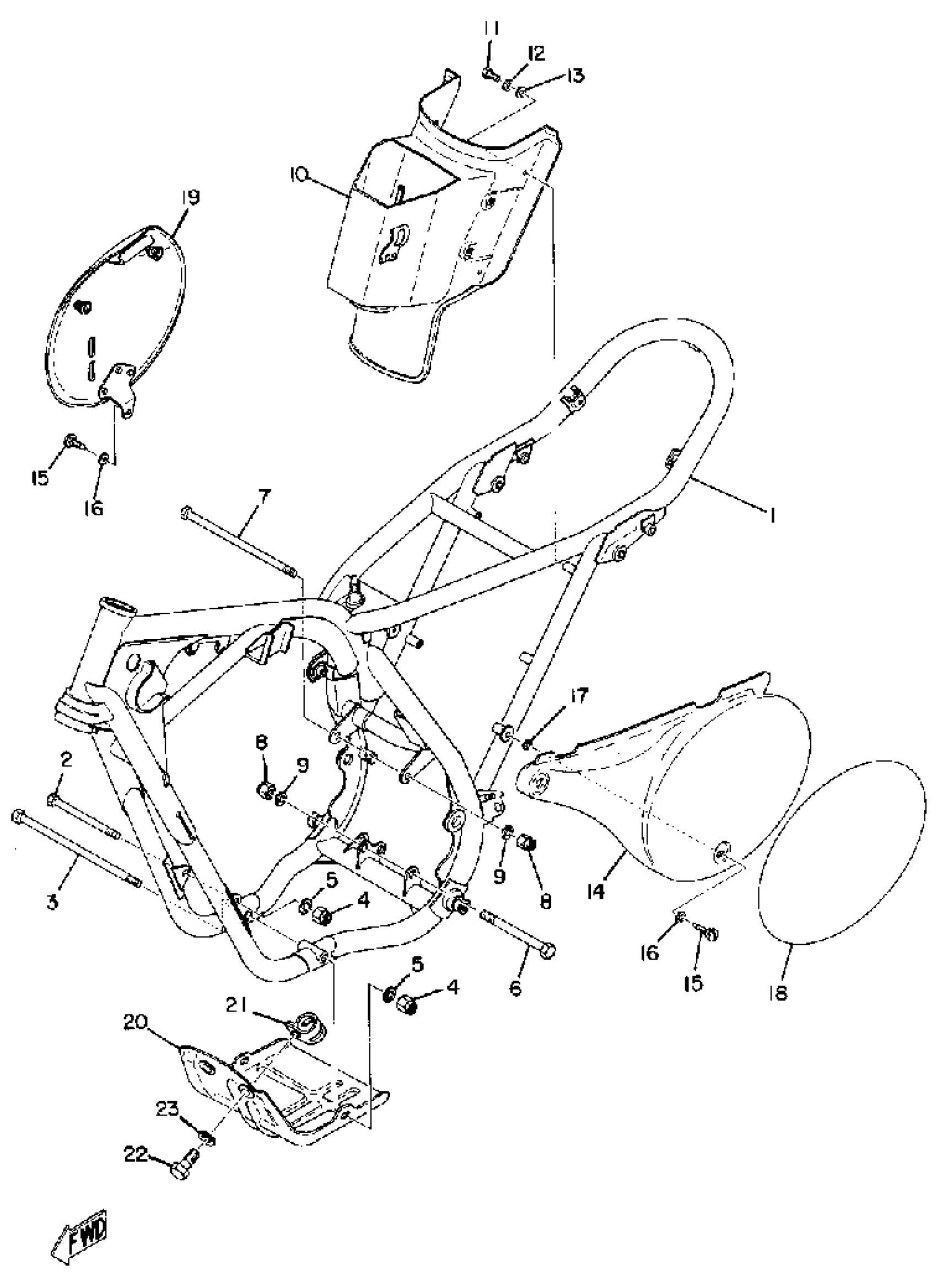

1972 Yamaha RT2MX (RT2MX) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(322-21110-01-33)

1
Out of stock

2

BOLT, FLANGE

95817-08115-00

1

$6.57

In stock

3

BOLT (214-21842-00)

90109-08040-00

1
Out of stock

4

NUT, U

95617-08100-00

1

$6.78

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

—

$11.26

In stock

7

BOLT

(90109-10316-00)

1
Out of stock

8

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

BOX, BATT.

(322-21240-00-33)

1
Out of stock

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

14

COVER, SIDE 1

(322-21711-00-00)

1
Out of stock

15

UNAVAILABLE IN PRICE BOOK

302-21714-00-00

1
Out of stock

16

WASHER PLATE 102283270000

90202-06013-00

1
Out of stock

17

NUT(650)

95380-06700-00

—

$6.17

In stock

18

EMBLEM 7

(322-21787-00-00)

1
Out of stock

19

COVER, SIDE 2

(322-21721-00-00)

1
Out of stock

20

BRACKET, PROTC FRT

(214-21433-00-33)

1
Out of stock

21

BRACKET, PROTC FRT

(214-21433-00-33)

1
Out of stock

22

BOLT (661)

97013-06012-00

—

$4.71

In stock

23

UNAVAILABLE IN PRICE BOOK

92901-06038-00

1
Out of stock
