1990 Yamaha RT180 (RT180A) Rear Shocks Diagram

← All diagrams

Find the part on the Rear Shocks diagram for your 1990 Yamaha RT180 (RT180A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

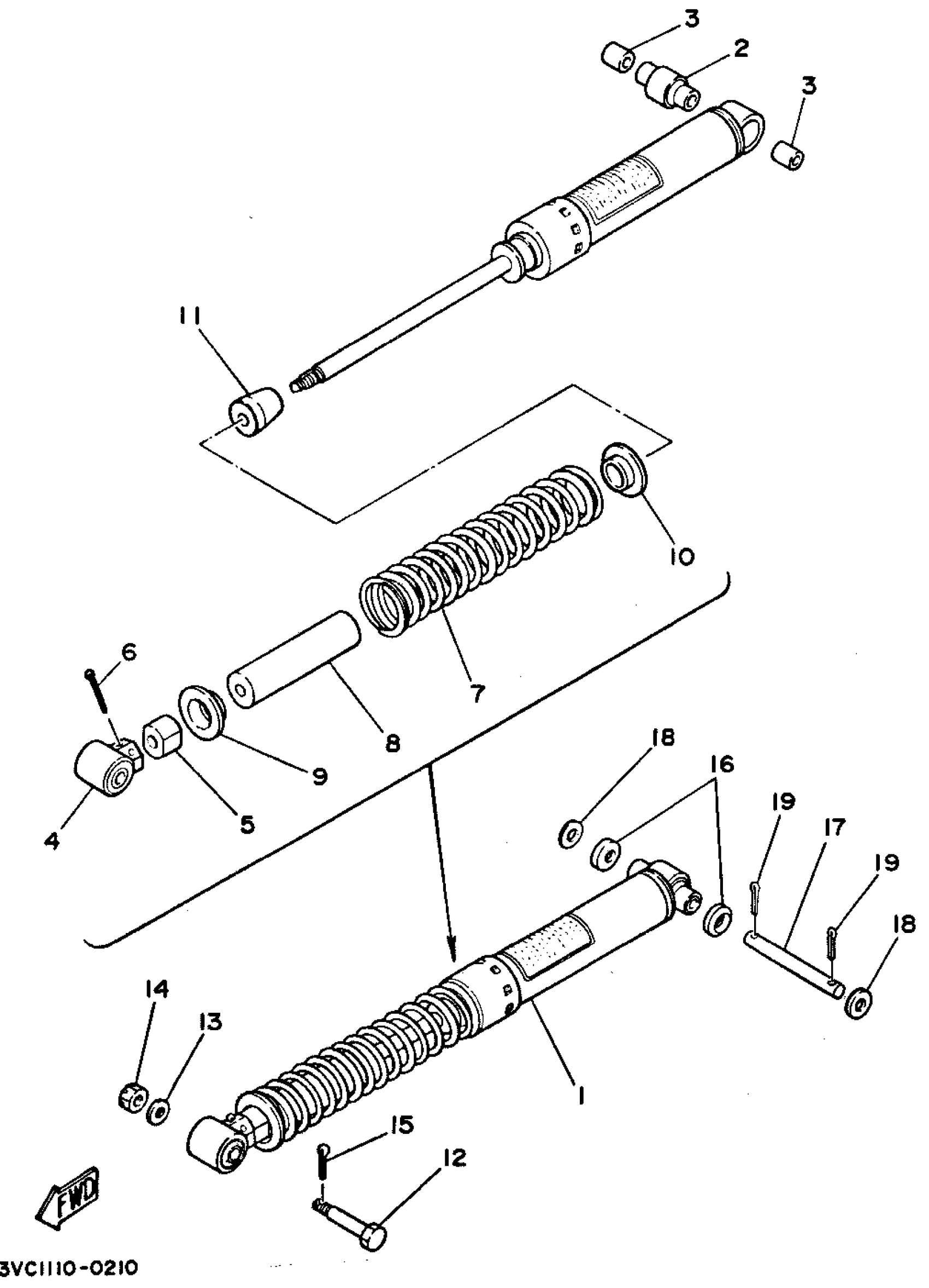

1990 Yamaha RT180 (RT180A) Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOK/ABS ASSY/REAR

3VC-F2210-20-00

1
Out of stock

2

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

—
Out of stock

3

BUSH, SOLID (1M1)

90380-12051-00

1
Out of stock

4

. BRACKET, UPPER

5L9-F2219-00-00

1
Out of stock

5

. SEAT, SPRING UPPER

5L9-F2213-00-00

1
Out of stock

6

PIN, COTTER (AM5)

91490-30045-00

1
Out of stock

7

. SPRING, COMPRESSION

90-50190-51-40

1
Out of stock

8

. SLEEVE, ROD

5L9-F2496-00-00

1
Out of stock

9

. GUIDE, SPRING 1

5L9-F2214-00-00

1
Out of stock

10

. SEAT, SPRING LOWER

3VC-F2223-00-00

1
Out of stock

11

. STOPPER, BUMP

2A-62249-30-00

1
Out of stock

12

BOLT (1M1)

90109-10453-00

—

$15.92

In stock

13

1

$3.00

In stock

14

NUT (682)

95380-10700-00

1

$5.78

In stock

15

PIN, COTTER

91490-20025-00

1

$1.31

In stock

16

COVER, THRUST 2

5L9-F2129-00-00

1
Out of stock

17

PIN, CLEVIS (3Y2)

90240-12075-00

—

$8.32

In stock

18

WASHER, PLATE(663)

92990-12600-00

—

$6.68

In stock

19

PIN, COTTER

91490-30030-00

—

$7.15

In stock
