1990 Yamaha RT180 (RT180A) Swing ARM Diagram

← All diagrams

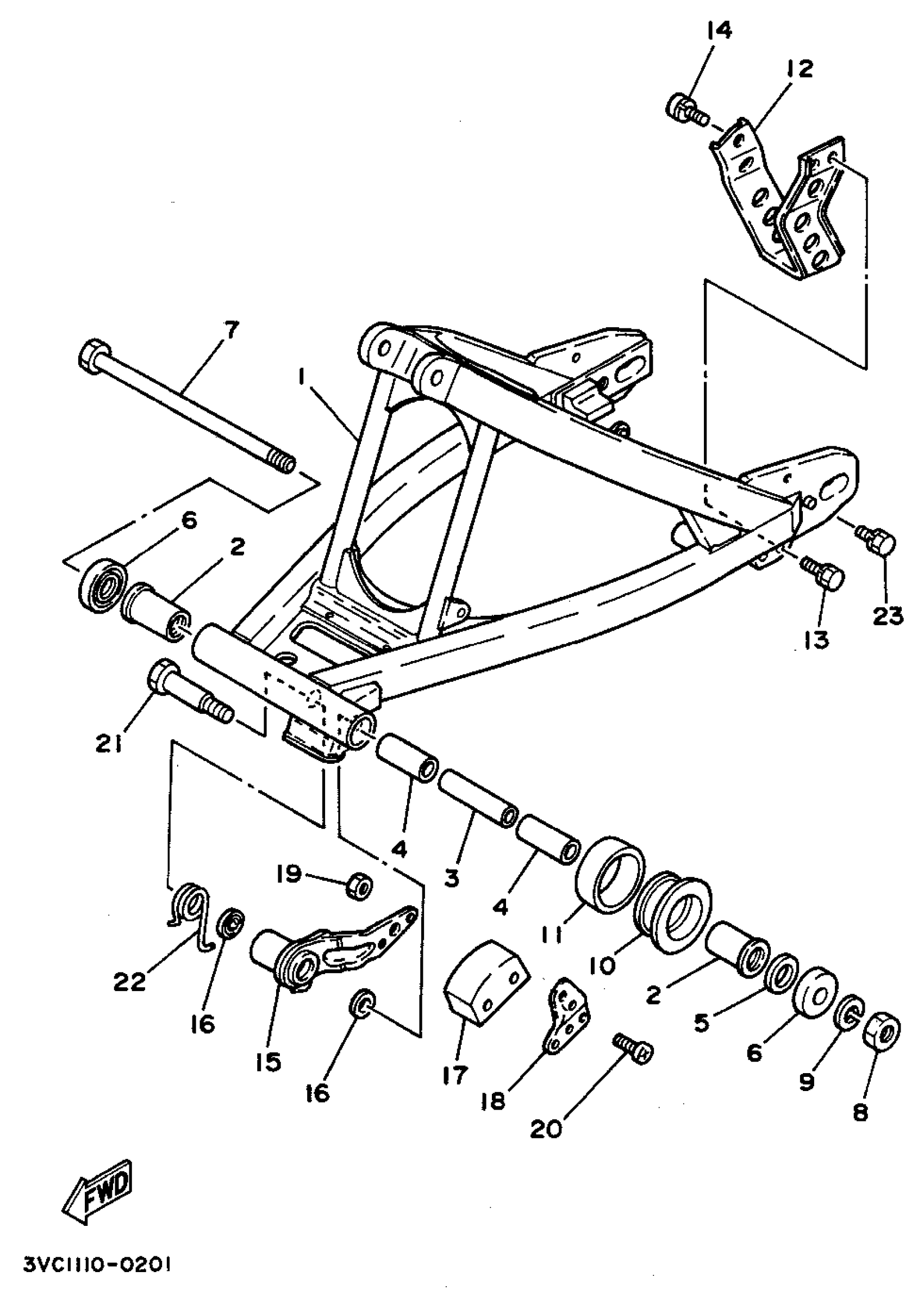

Find the part on the Swing ARM diagram for your 1990 Yamaha RT180 (RT180A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha RT180 (RT180A) Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP

3VC-F2110-00-35

1
Out of stock

2

BUSHING (401-22123-00)

90386-18028-00

1

$21.40

In stock

3

BUSH 2

42L-F2124-00-00

1
Out of stock

4

BUSH, SOLID

90380-12120-00

1
Out of stock

5

SHIM

5L9-F2127-00-00

1
Out of stock

6

COVER, THRUST 1

401-22128-01-00

1

$25.49

In stock

7

SHAFT, PIVOT

5L9-F2141-01-00

1
Out of stock

8

NUT, NYLON

95717-12300-00

1

$5.85

In stock

9

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

10

SEAL, GUARD

2A6-22151-00-00

1

$7.37

In stock

11

SEAL, GUARD 2

2A6-22152-00-00

1

$5.26

In stock

12

GUARD, CHAIN

2A6-22318-00-00

—
Out of stock

13

BOLT,W/WASHER

97502-06420-09

1
Out of stock

14

BOLT, WITH WASHER M8

97506-08512-00

1
Out of stock

15

ARM, TENSIONER

2A6-22179-01-00

—
Out of stock

16

OIL SEAL (2K8)

93109-14021-00

—

$10.60

In stock

17

TENSIONER

2N0-22178-00-00

—
Out of stock

18

GUIDE, CHAIN

5L9-F2187-00-00

1
Out of stock

19

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

20

SCREW, PAN HEAD (686)

98580-05035-00

1

$9.22

In stock

21

BOLT (1J4)

90109-10483-00

—

$8.28

In stock

22

SPRING, TORSION (1J4)

90508-35350-00

—
Out of stock

23

BOLT, WITH WASHER

97502-05216-09

1
Out of stock
