1998 Yamaha RT100 (RT100K) Shift CAM Fork Diagram

← All diagrams

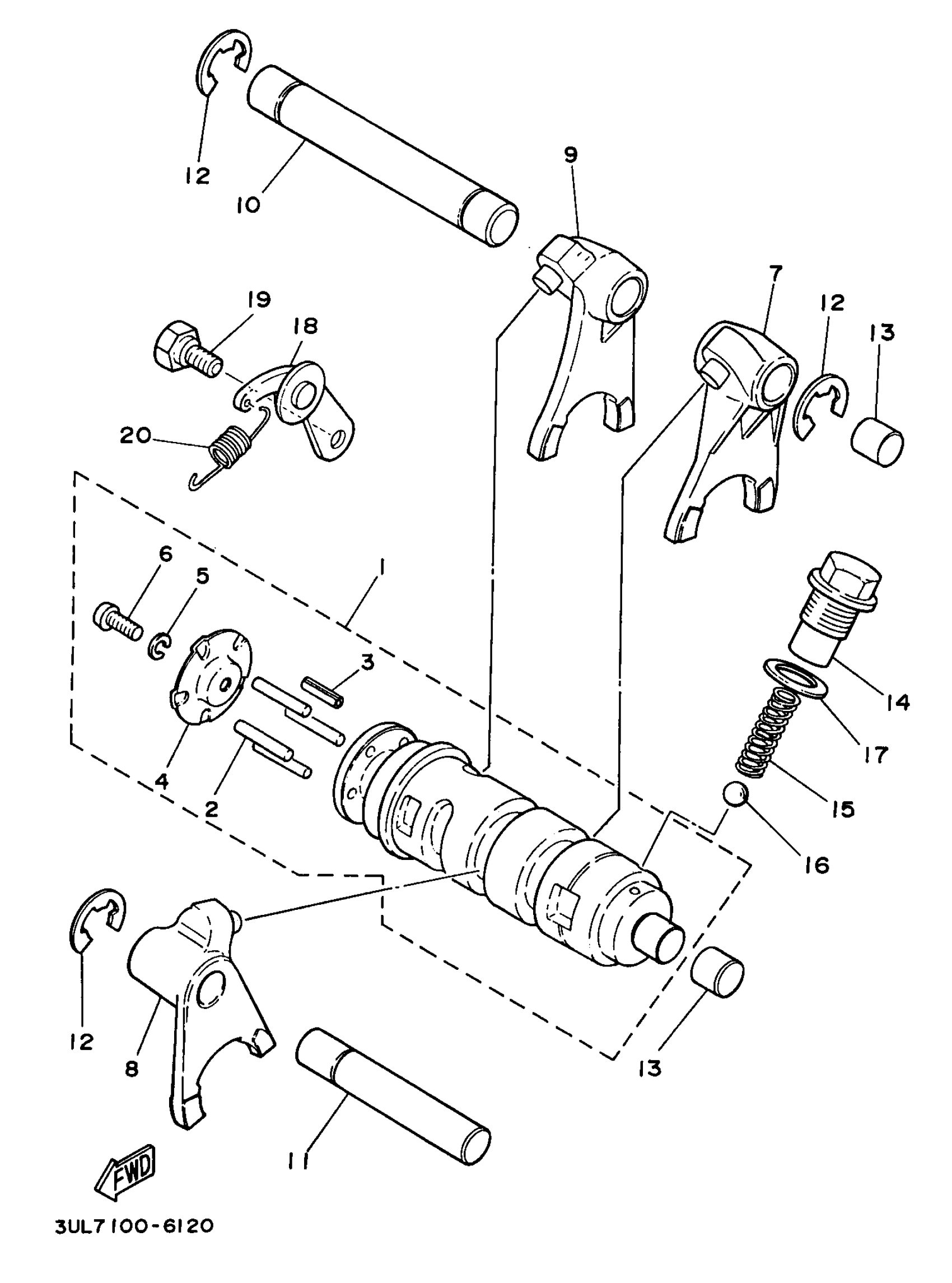

Find the part on the Shift CAM Fork diagram for your 1998 Yamaha RT100 (RT100K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha RT100 (RT100K) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

401-18540-00-00

—

$75.55

In stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

PIN, SPRING (648)

91690-40016-00

1

$6.68

In stock

4

PLATE, SIDE

164-18561-00-00

1

$5.42

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

SCREW, PAN

98517-05012-00

1

$3.91

In stock

7

FORK, SHIFT 1

463-18511-00-00

—

$34.26

In stock

8

FORK, SHIFT 2

463-18512-00-00

1
Out of stock

9

FORK, SHIFT 3

463-18513-00-00

—

$34.14

In stock

10

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

1
Out of stock

11

BAR, SHIFT FORK GUIDE

248-18531-00-00

1

$7.86

In stock

12

CIRCLIP

99006-10600-00

1

$6.91

In stock

13

PLUG, BLIND

214-15385-00-00

—

$6.72

In stock

14

BOLT

90109-14385-00

1

$13.66

In stock

15

SPRING, COMPRESION

90501-12750-00

1
Out of stock

16

BALL

93505-16006-00

—

$2.22

In stock

17

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

18

STOPPER LEVER ASSY

132-18140-01-00

—

$14.20

In stock

19

BOLT

90109-06239-00

—

$5.77

In stock

20

SPRING, TENSION (260)

90506-09112-00

—
Out of stock
← Clutch Shift Shaft →
