2007 Yamaha Vector Mountain (RS90MW) Water Pump Diagram

← All diagrams

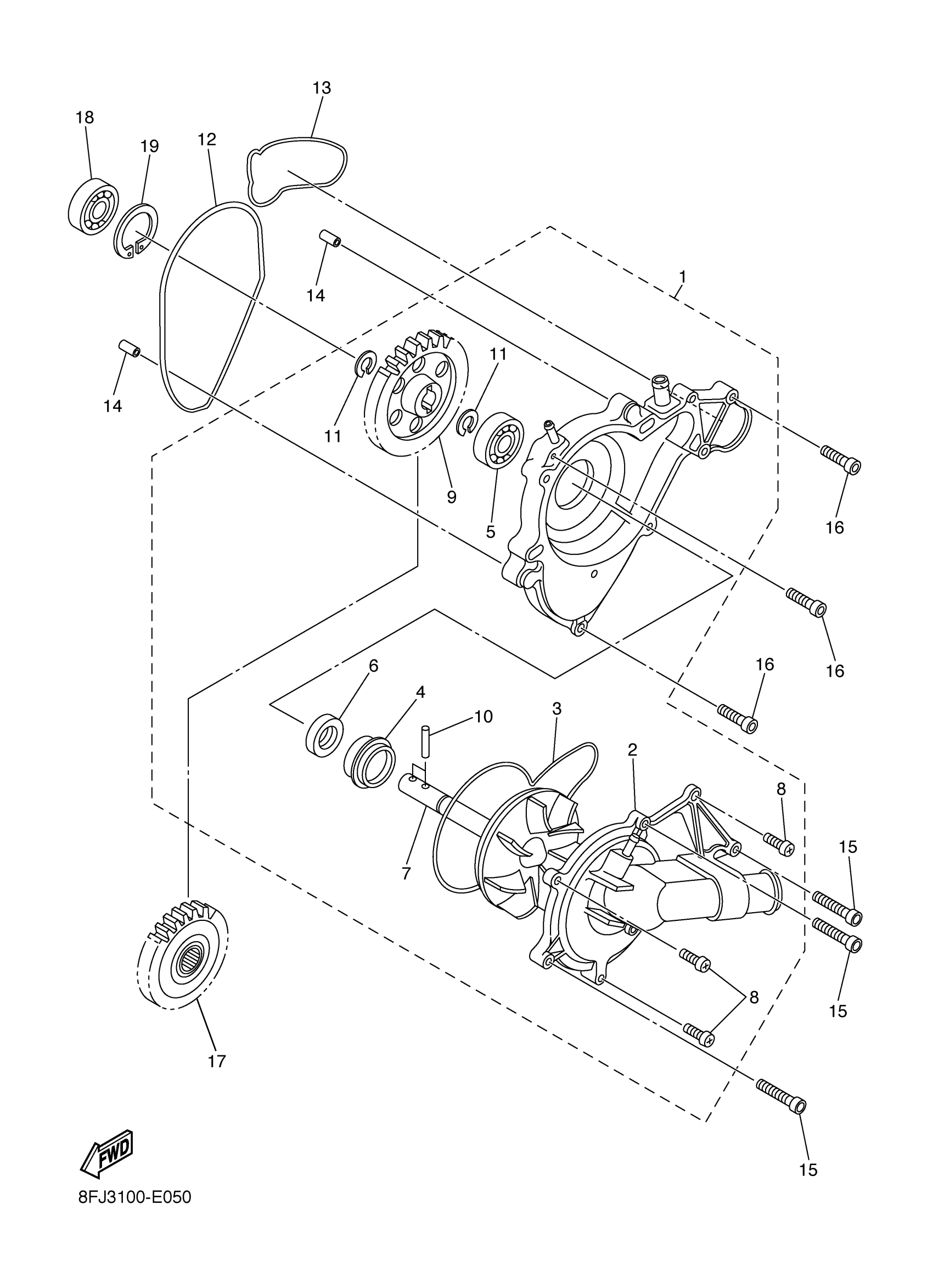

Find the part on the Water Pump diagram for your 2007 Yamaha Vector Mountain (RS90MW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Vector Mountain (RS90MW) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WATER PUMP ASSY

8ES-12420-02-00

1

$368.91

In stock

2

COVER, HOUSING

8ES-12422-00-00

—

$36.62

In stock

3

GASKET, HOUSING COVER 1

8ES-12427-00-00

1

$15.04

In stock

4

SEAL, MECHANICAL

8ES-12438-00-00

1

$39.59

In stock

5

BRG,R-B 6000 26MM 19G KY

93306-00004-00

1

$31.81

In stock

6

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

1
Out of stock

7

IMPELLER SHAFT ASSY

8ES-12450-01-00

1

$31.95

In stock

8

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

9

GEAR, IMPELLER SHAFT

8ES-12459-01-00

—

$72.42

In stock

10

PIN, DOWEL (409)

93604-16092-00

1

$1.94

In stock

11

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

12

GASKET

8ES-12435-00-00

1

$12.46

In stock

13

GASKET

8ES-12434-00-00

1

$3.57

In stock

14

PIN, DOWEL

99530-08012-00

1

$6.62

In stock

15

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

16

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

17

GEAR, DRIVE

8ES-12436-00-00

—

$52.43

In stock

18

BRG,R-B 6000 26MM 19G KY

93306-00004-00

1

$31.81

In stock

19

CIRCLIP(2FL)

93420-26077-00

—

$5.62

In stock
