2007 Yamaha Vector Mountain (RS90MW) Crankcase Diagram

← All diagrams

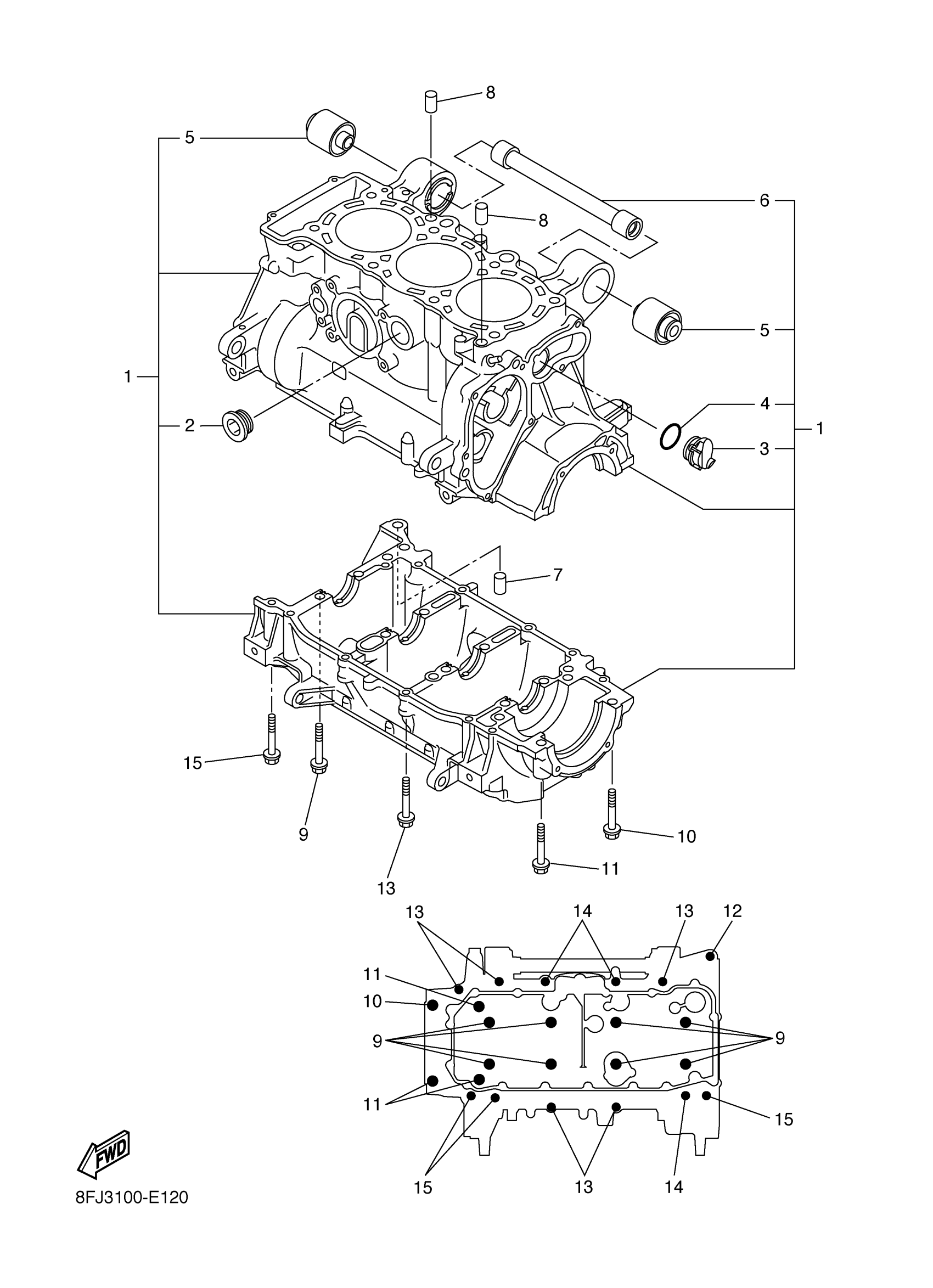

Find the part on the Crankcase diagram for your 2007 Yamaha Vector Mountain (RS90MW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Vector Mountain (RS90MW) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8ES-15109-08-00

—

$3,192.99

In stock

2

PLUG, STRAIGHT SCREW

90340-27001-00

1
Out of stock

3

PLUG, BLIND 1

8ES-15167-00-00

1

$8.69

In stock

4

O-RING(1HX)

93210-24709-00

1
Out of stock

5

DAMPER

8FA-2139X-00-00

—

$38.35

In stock

6

SPACER

8ES-21459-00-00

—

$20.86

In stock

7

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

8

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

9

BOLT, WITH WASHER

90119-09004-00

1

$9.17

In stock

10

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

11

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

12

BOLT

90109-06185-00

1

$6.71

In stock

13

BOLT, FLANGE

95817-06055-00

1

$2.00

In stock

14

BOLT, FLANGE

95817-06080-00

1
Out of stock

15

BOLT, FLANGE

90105-06058-00

1
Out of stock
