2007 Yamaha Vector Mountain (RS90MW) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 2007 Yamaha Vector Mountain (RS90MW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

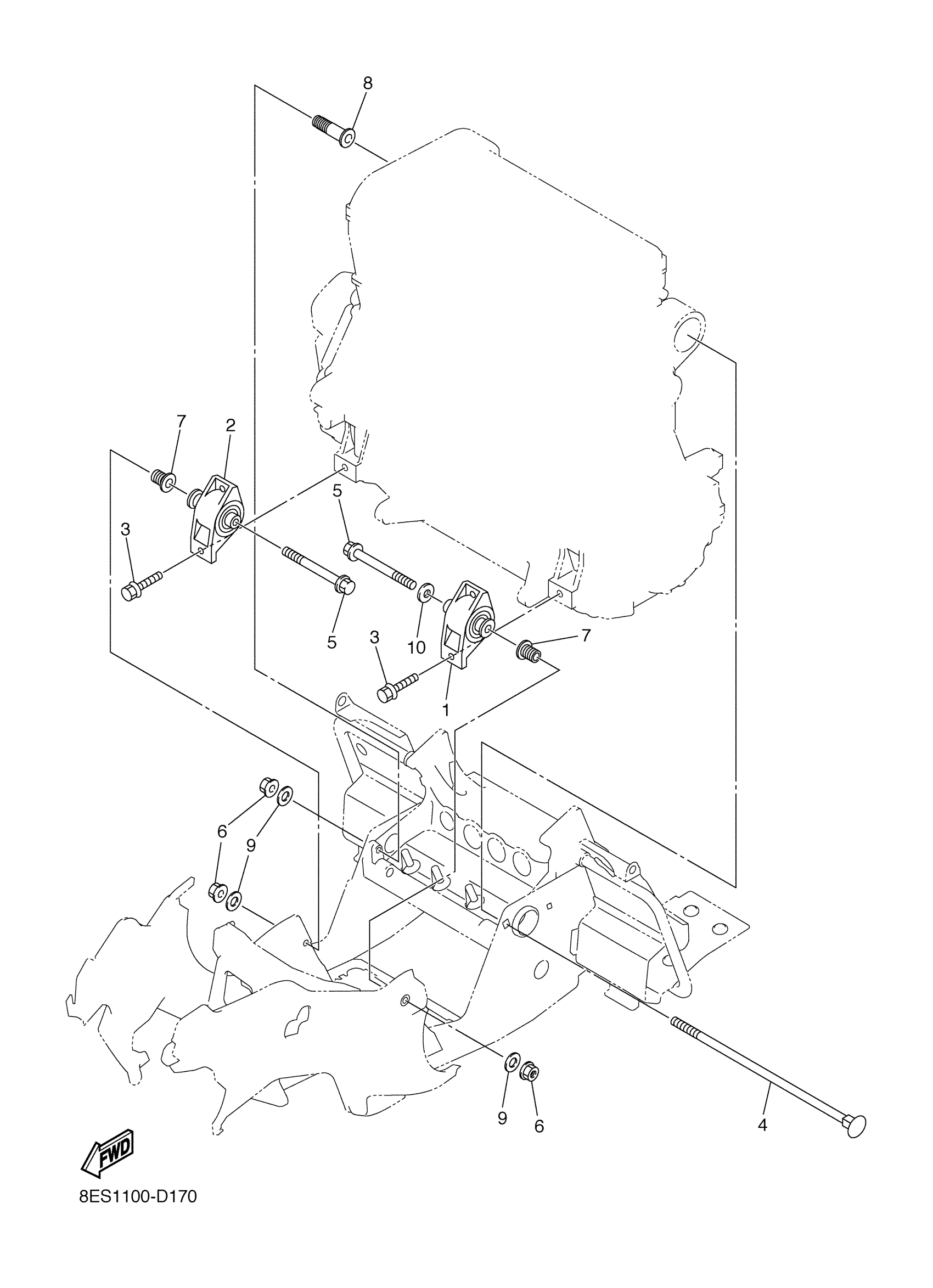

2007 Yamaha Vector Mountain (RS90MW) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE BRACKET COMP.

8ES-21410-00-00

—

$68.37

In stock

2

ENGINE BRACKET COMP. 2

8ES-21420-00-00

—

$67.03

In stock

3

BOLT, FLANGE(6TA)

95817-08030-00

1

$6.17

In stock

4

BOLT, ENGINE MOUNT

8FA-21481-02-00

—

$51.09

In stock

5

BOLT, FLANGE

95817-12100-00

1

$3.02

In stock

6

NUT(3EF)

90179-12657-00

1

$5.32

In stock

7

BOLT, ENGINE ADJUSTING

8FG-21495-00-00

—

$24.86

In stock

8

BOLT

8ES-2149C-00-00

—

$32.60

In stock

9

WASHER, PLATE(8CJ)

90201-120T5-00

1

$4.91

In stock

10

WASHER, PLATE (5E3)

90201-125A3-00

1
Out of stock
