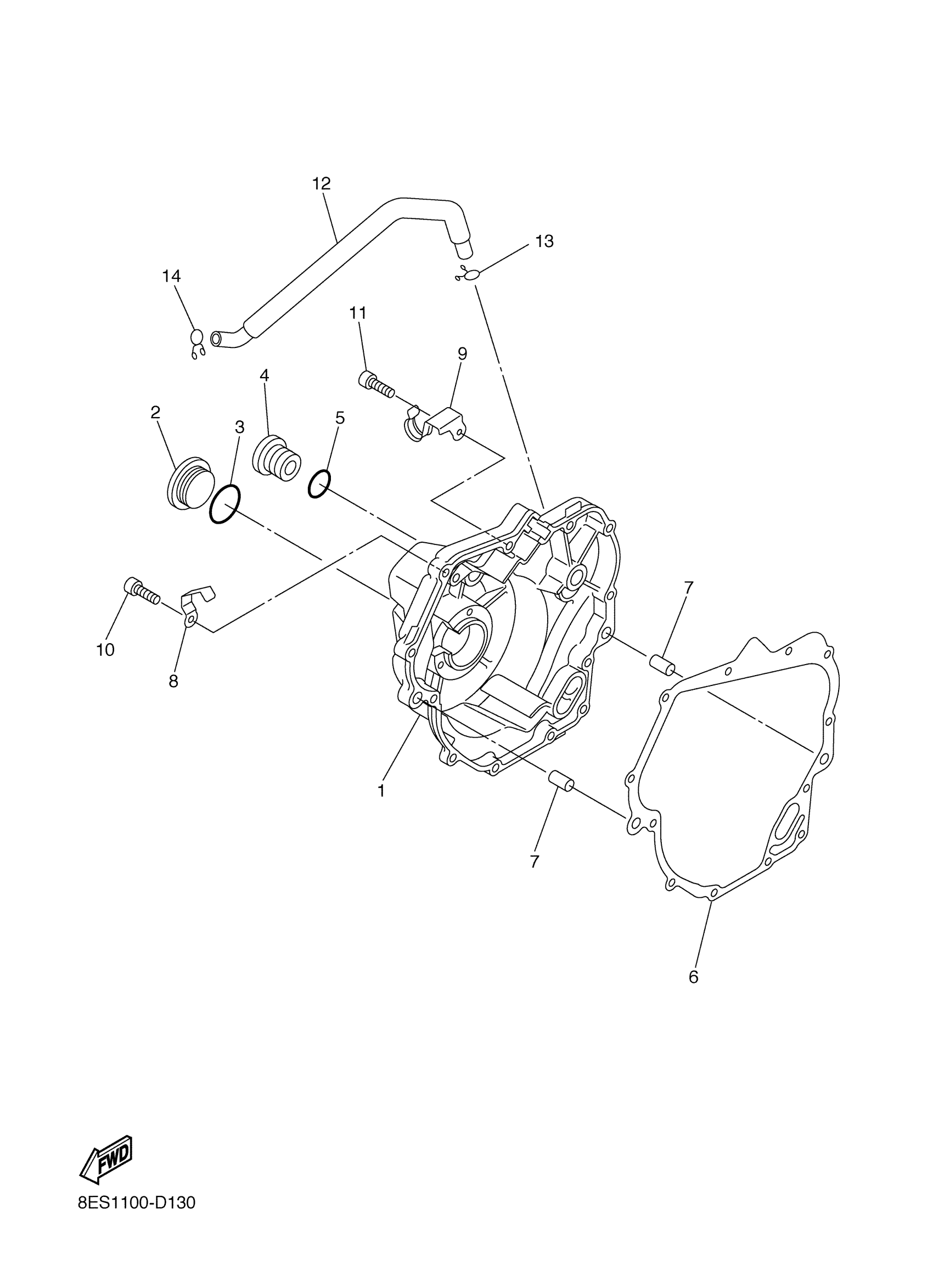

Yamaha RS90MW (VECTOR MOUNTAIN) 8FK5 2007 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 2

8ES-15421-01-00

$250.44

2

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$24.85

3

O-RING (341)

93210-32172-00

$5.39

4

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$10.83

5

O-RING (2H9)

93210-14369-00

$5.42

6

GASKET, CRANKCASE COVER 2

8ES-15461-01-00

$21.85

7

PIN, DOWEL

99530-08012-00

$4.89

8

CLAMP(4AJ)

90462-08225-00

$7.35

9

CLAMP

90465-10038-00

$9.73

10

BOLT

90109-06015-00

$3.73

11

BOLT

90109-06015-00

$3.73

12

HOSE, BREATHER 1

8ES-1531A-00-00

Unavailable

13

CLIP

90467-100A1-00

$5.96

14

CLIP(72X)

90467-11M08-00

$2.50
