1975 Yamaha RS100 (RS100B) Tail Lamp Diagram

← All diagrams

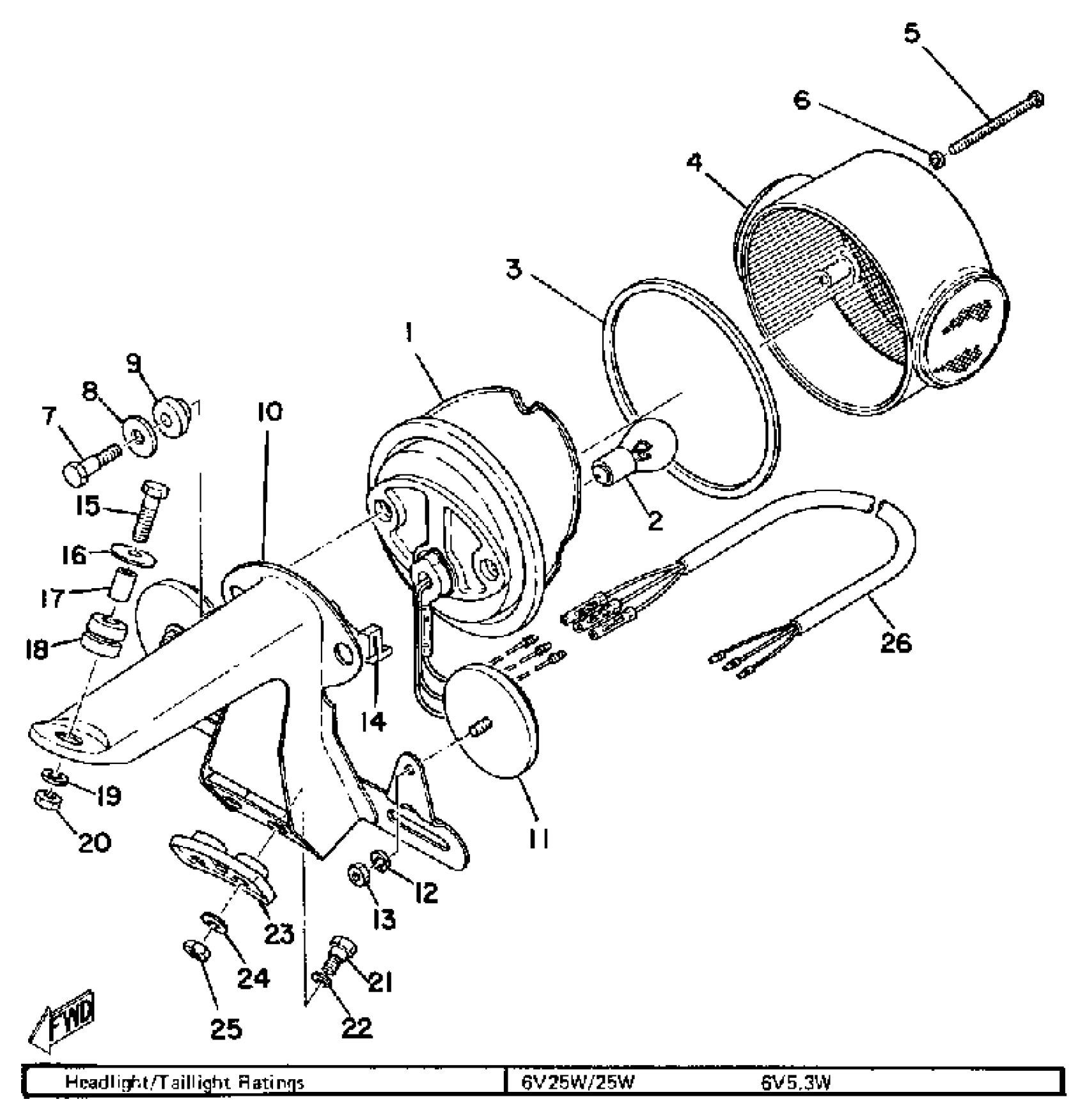

Find the part on the Tail Lamp diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha RS100 (RS100B) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAIL LIGHT UNIT ASSEMBLY

437-84510-62-00

1
Out of stock

1

BASE, TAILLIGHT

(444-84711-61-00)

1
Out of stock

2

. BULB

1M1-84514-60-00

1
Out of stock

3

. GASKET, LENS

275-84523-60-00

1
Out of stock

4

. LENS, TAIL LIGHT

341-84721-60-00

1
Out of stock

5

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

6

. WASHER

341-84722-60-00

1
Out of stock

7

SCREW

(479-84526-00-00)

1
Out of stock

8

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

9

. DAMPER

275-84527-60-00

1
Out of stock

10

BRACKET, LICENCE

(479-84551-01-35)

1
Out of stock

11

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

DAMPER

(437-84527-60-00)

1
Out of stock

15

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

16

WASHER

90209-06012-00

—

$4.71

In stock

17

COLLAR

90387-07020-00

—

$6.17

In stock

18

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

BOLT 168217380000

90109-06017-00

—
Out of stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

DAMPER

214-84553-01-00

—

$6.72

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

26

CORD, TAILLIGHT

(316-84717-70-00)

1
Out of stock
