1975 Yamaha RS100 (RS100B) Handle - Wire Diagram

← All diagrams

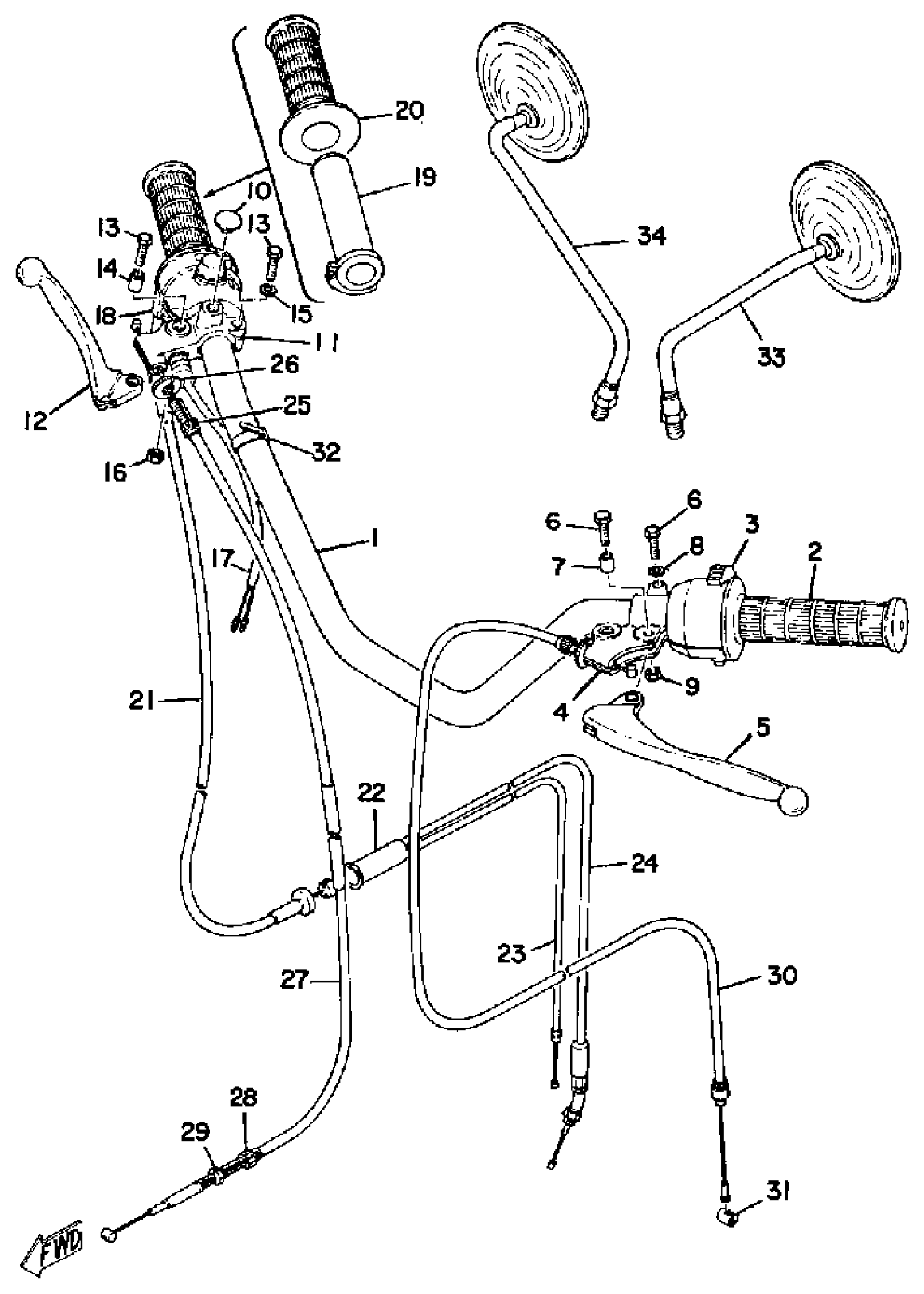

Find the part on the Handle - Wire diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha RS100 (RS100B) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

(337-26111-00-00)

1
Out of stock

1

LEVER HOLDER ASSEMBLY 1 (360-82910-00)

360-82910-02-00

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

2

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

3

SWITCH, HANDLE 3

360-83973-02-00

1
Out of stock

4

—

$24.57

In stock

5

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

6

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

7

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

NUT(650)

95380-06700-00

1

$6.17

In stock

10

PLUG (341-26329-00)

90338-09012-00

1

$7.26

In stock

11

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

12

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

13

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

14

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT(650)

95380-06700-00

1

$6.17

In stock

17

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

18

SWITCH, HANDLE 1

(465-83976-01-00)

1
Out of stock

19

TUBE, GUIDE

214-26243-00-00

—

$39.75

In stock

20

GRIP (R.H)

306-26242-10-00

—

$24.98

In stock

21

CABLE, THROTTLE 1

465-26311-00-00

1
Out of stock

22

CONNECTOR, CABLE

214-26261-01-00

—

$10.29

In stock

23

CABLE,THROTTLE 2

336-26312-00-00

1
Out of stock

24

CABLE, PUMP

(336-26321-01-00)

1
Out of stock

25

BOLT

90123-08002-00

—

$8.93

In stock

26

NUT

90179-08030-00

—

$3.78

In stock

27

CABLE, BRAKE

(336-26341-10-00)

1
Out of stock

28

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

29

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

30

CABLE, CLUTCH

336-26335-10-00

1
Out of stock

31

END, WIRE

164-26363-00-00

—
Out of stock

32

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

33

BACK MIRROR RH (341-26290-01)

341-26290-01-00

1
Out of stock

34

BACK MIRROR RH (341-26290-01)

341-26290-01-00

1
Out of stock
