1975 Yamaha RS100 (RS100B) Flasher Lamp Diagram

← All diagrams

Find the part on the Flasher Lamp diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

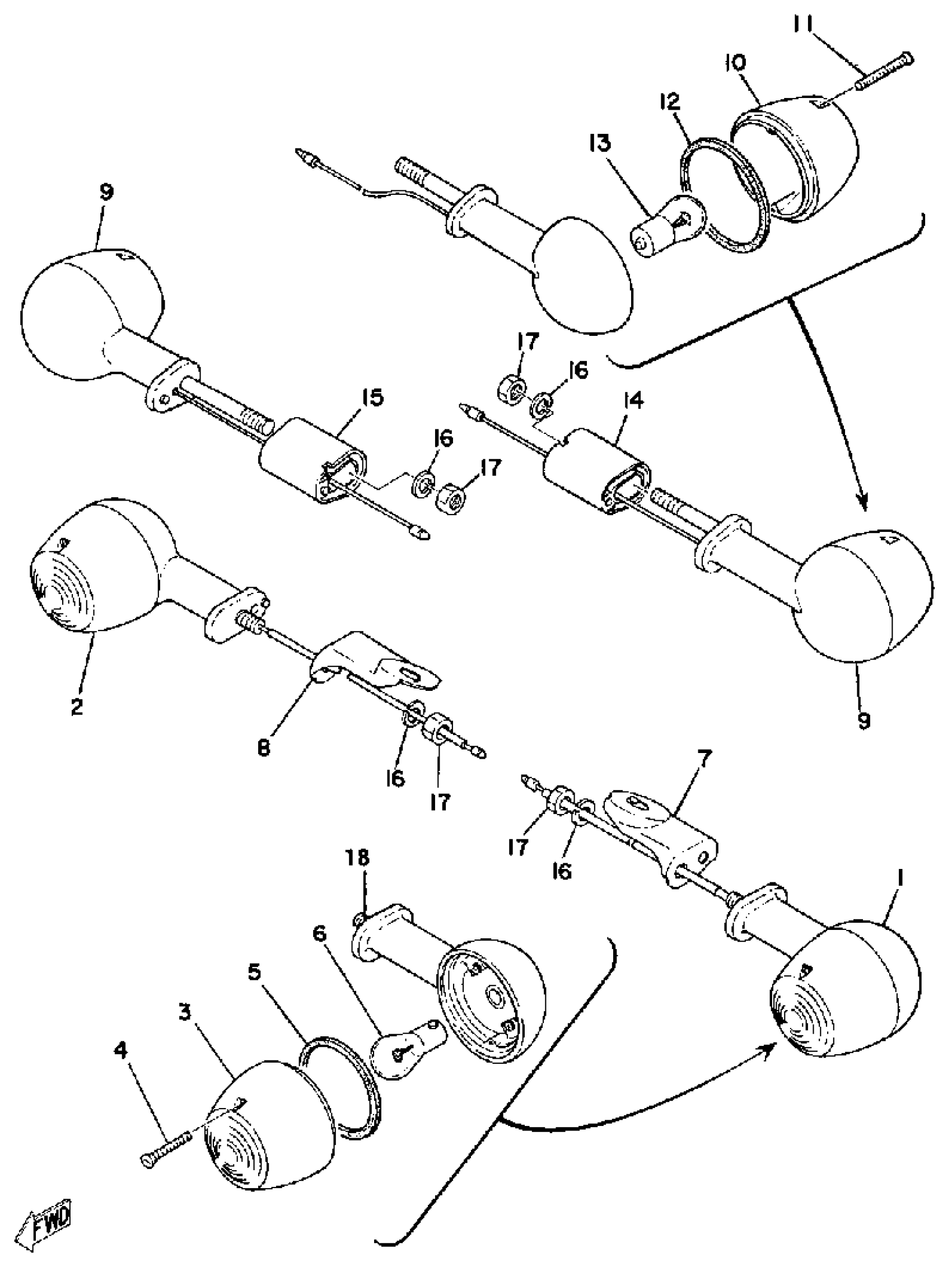

1975 Yamaha RS100 (RS100B) Flasher Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRT FLSHR LITE ASSEMBLY

232-83320-62-93

1
Out of stock

2

FRT FLSHR LITE ASSEMBLY

232-83320-62-93

1
Out of stock

3

LENS, FLASHER

183-83312-70-00

—

$16.88

In stock

4

SCREW, LENS FITTING (3X32)

183-83333-71-00

1

$7.51

In stock

5

GASKET,FLASHER LANS

183-83313-70-00

—

$7.51

In stock

6

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

7

STAY, FLASHER 1

(507-83318-00-00)

1
Out of stock

8

STAY, FLASHER 2

(507-83328-00-00)

1
Out of stock

9

R FLSHR LITE ASSEMBLY

(388-83330-60-93)

1
Out of stock

10

. LENS, REAR RED FLASHER

211-83332-75-00

1
Out of stock

11

SCREW, LENS FITTING (3X32)

183-83333-71-00

1

$7.51

In stock

12

GASKET,FLASHER LANS

183-83313-70-00

—

$7.51

In stock

13

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

14

COLLAR, FLASHER 1

(353-83316-30-00)

1
Out of stock

15

COLLAR, FLASHER 2

(353-83326-30-00)

1
Out of stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

17

NUT(6L2)

95333-08600-00

—

$3.20

In stock

18

. BOLT, STUD

360-83367-09-00

1
Out of stock
