1975 Yamaha RS100 (RS100B) Head Lamp - Speedometer Diagram

← All diagrams

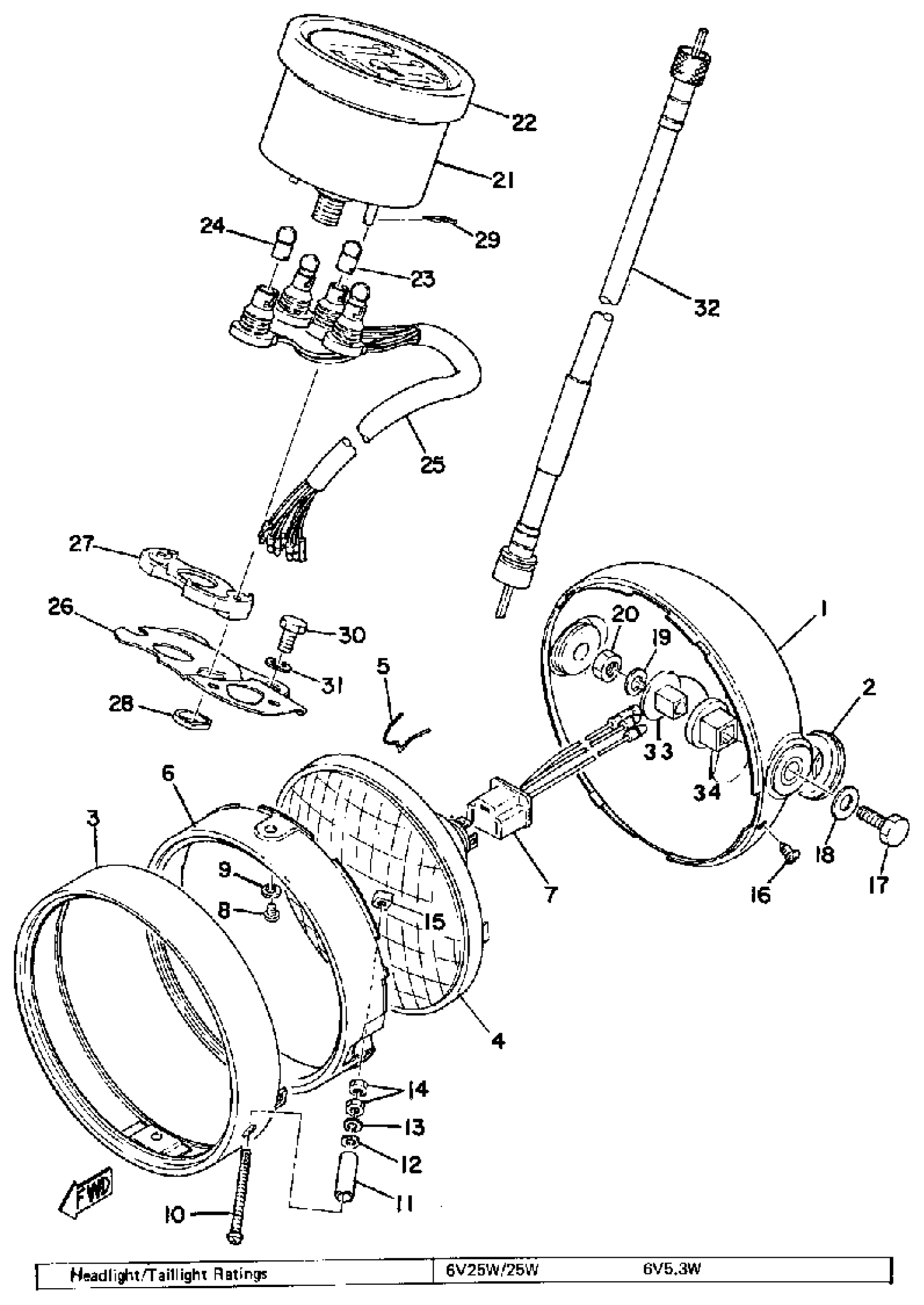

Find the part on the Head Lamp - Speedometer diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha RS100 (RS100B) Head Lamp - Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(507-84330-60-L2)

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

GROMMET (L)

150-84153-00-00

1

$17.41

In stock

3

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

4

LENS ASSEMBLY

443-84120-61-00

1
Out of stock

5

SPRING, REFLECTOR SET

148-84324-00-00

1

$6.45

In stock

6

. RING, RETAINING

498-84195-60-00

1
Out of stock

7

SOCKET

(465-84312-60-00)

1
Out of stock

8

. SCREW

438-84194-60-00

1
Out of stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

11

COLLAR, SCREW

438-84133-60-00

1
Out of stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

NUT(6TA)

95307-04600-00

1

$6.69

In stock

15

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

16

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

17

BOLT (682)

97013-08025-00

—

$6.80

In stock

18

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

NUT(6L2)

95333-08600-00

—

$3.20

In stock

21

SPEEDOMETER ASSEMBLY

(465-83510-60-00)

1
Out of stock

22

. DAMPER

336-83513-00-00

1
Out of stock

23

BULB (6V 1.7W)

388-83517-10-00

—

$4.74

In stock

24

BULB,(6V3W)

122-83516-10-00

1
Out of stock

25

SOCKET CORD ASSEMBLY

(465-83520-60-00)

1
Out of stock

26

BRACKET, METER

(507-83519-00-33)

1
Out of stock

27

DAMPER

237-83523-00-00

—

$8.70

In stock

28

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

29

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

30

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

31

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

32

SPEEDOMETER CABLE ASSY

336-83550-02-00

1
Out of stock

33

UNAVAILABLE IN PRICE BOOK

(509-84338-60-00)

1
Out of stock

34

DAMPER, HDLT STAY

(214-84143-60-00)

1
Out of stock
