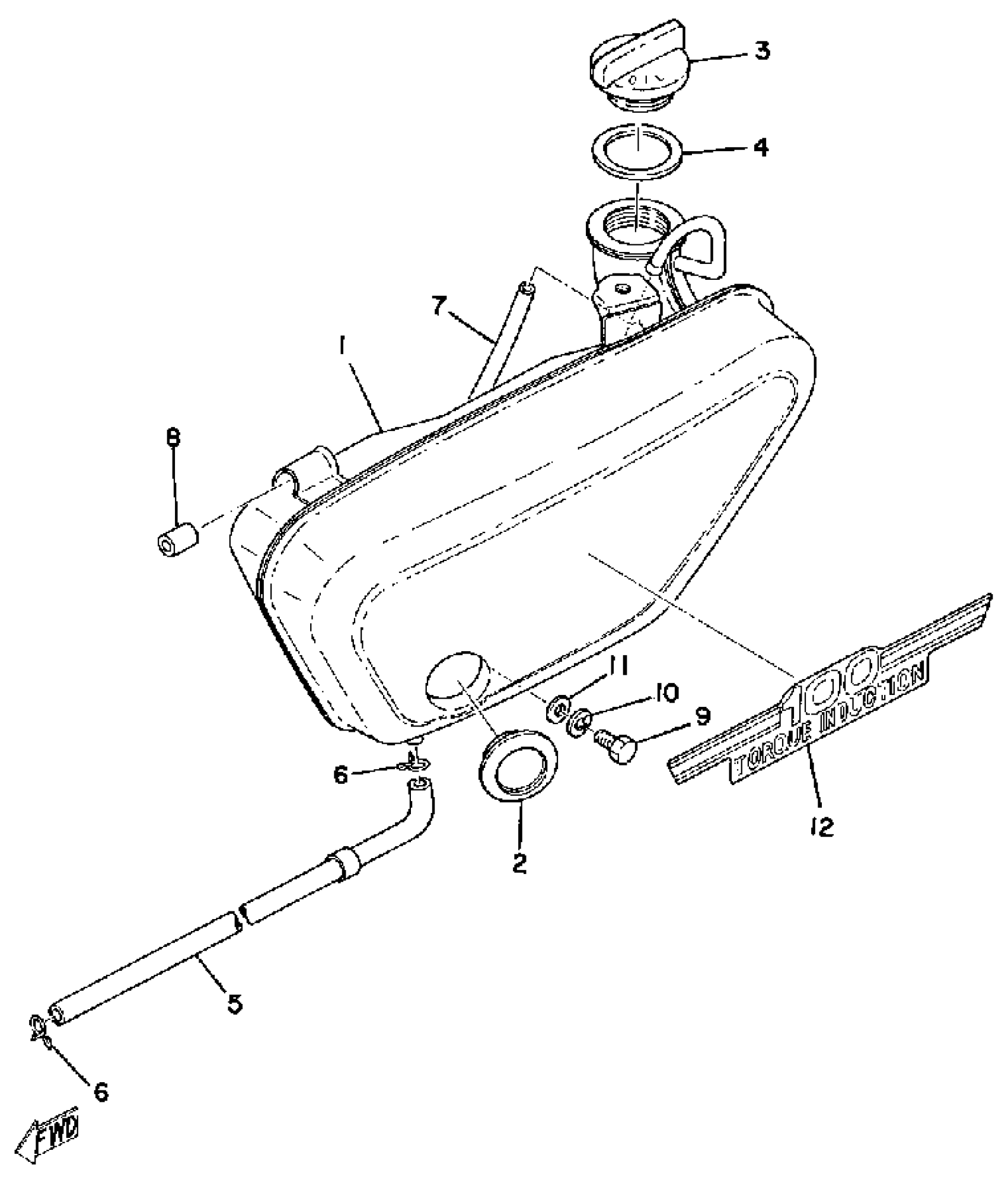

Yamaha RS100B (RS100) 1975 OIL TANK Diagram

#

Description
Price

1

OIL TANK ASSEMBLY

(463-21705-02-L2)

Unavailable

2

GAUGE, LEVEL

214-21761-00-00

Unavailable

3

BODY, OIL TANK CAP

1A0-21771-00-00

$29.13

4

GASKET 214217720000

90430-29114-00

$5.79

5

HOSE (L420)

90445-092K1-00

$10.47

6

CLIP 101235600

90467-08003-00

$5.88

7

HOSE (L1500)

90445-090F6-00

$24.98

8

DAMPER, OIL TANK

437-21779-00-00

Unavailable

9

BOLT (661)

97013-06012-00

$4.40

10

WASHER, SPRING

92995-06100-00

$2.95

11

WASHER, PLATE (371)

90201-06431-00

$4.18

12

EMBLEM 1

(465-21781-00-00)

Unavailable
