1975 Yamaha RS100 (RS100B) Carburetor Diagram

← All diagrams

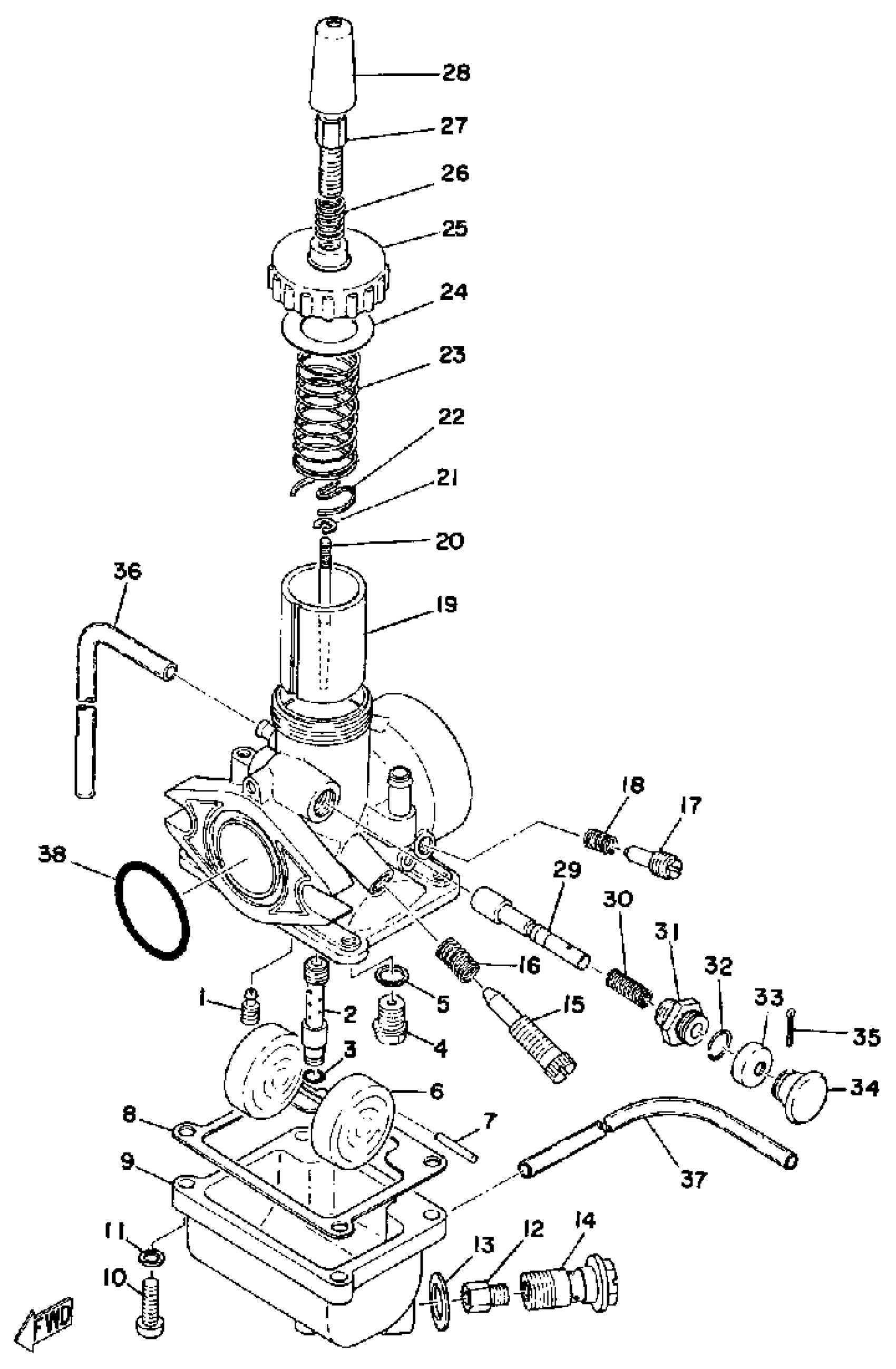

Find the part on the Carburetor diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha RS100 (RS100B) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PILOT (# 22.5)

260-14142-22-A0

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(463-14101-90-00)

1
Out of stock

2

NOZZLE, MAIN

(437-14141-36-00)

1
Out of stock

3

O-RING

214-14147-00-00

1
Out of stock

4

VALVE SEAT ASSY

353-14190-15-00

—

$36.18

In stock

5

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

6

FLOAT

4NR-14185-00-00

1

$36.11

In stock

7

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

8

GASKET,FLOAT CHAMBER

304-14184-00-00

1
Out of stock

9

BODY, FLOAT CHMBR 1

(437-14181-00-00)

1
Out of stock

10

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

. JET, MAIN #90

137-14143-18-00

1
Out of stock

12

JET, MAIN #100

137-14143-20-00

—

$7.34

In stock

12

JET, MAIN #110

137-14143-22-A0

1
Out of stock

12

. JET, MAIN #120

137-14143-24-00

1
Out of stock

12

JET, MAIN #130

137-14143-26-A0

—
Out of stock

13

GASKET

304-14198-00-00

—

$5.85

In stock

14

BOLT,BANJO

479-14166-00-00

1
Out of stock

15

. SCREW, THROTTLE

304-14122-00-00

1
Out of stock

16

SPRING, THROTTLE STOP

137-14133-00-00

—

$6.15

In stock

17

AIR SCREW SET

22K-14104-00-00

—

$9.95

In stock

18

SPRING, AIR ADJUSTING

174-14134-00-00

—

$6.72

In stock

19

VALVE,THROTTLE 1

53V-14112-20-00

1
Out of stock

20

. NEEDLE

152-14116-10-00

1
Out of stock

21

CLIP

3FA-14137-00-00

—

$6.80

In stock

22

. SEAT, SPRING

137-14136-00-00

1
Out of stock

23

SPRING, THROTTLE VALVE

3X3-14131-00-00

—

$12.38

In stock

24

GASKET

193-14126-00-00

—

$5.35

In stock

25

TOP, MIXING CHAMBER

193-14158-00-00

—
Out of stock

26

SPRING, THRTL STOP

(193-14133-00-00)

1
Out of stock

27

SCREW, CABLE ADJUSTING

(193-14124-26-00)

1
Out of stock

28

CAP

307-14169-10-00

—

$7.09

In stock

29

. PLUNGER, STARTER

304-14171-00-00

1
Out of stock

30

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

31

CAP, PLUNGER

152-14174-00-00

—

$28.48

In stock

32

CLIP, PLUNGER

353-14138-00-00

—

$5.23

In stock

33

COVER, PLUNGER CAP

132-14173-00-00

—

$8.70

In stock

34

HOLDER

304-14261-00-00

—

$35.95

In stock

35

PIN, COTTER

91490-16020-00

1

$6.23

In stock

36

PIPE, AIR VENT

183-14197-01-00

—
Out of stock

37

PIPE

23F-14197-00-00

—

$24.11

In stock

38

O-RING

241-14147-00-00

—

$8.28

In stock
