1975 Yamaha RS100 (RS100B) Crank - Piston Diagram

← All diagrams

Find the part on the Crank - Piston diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

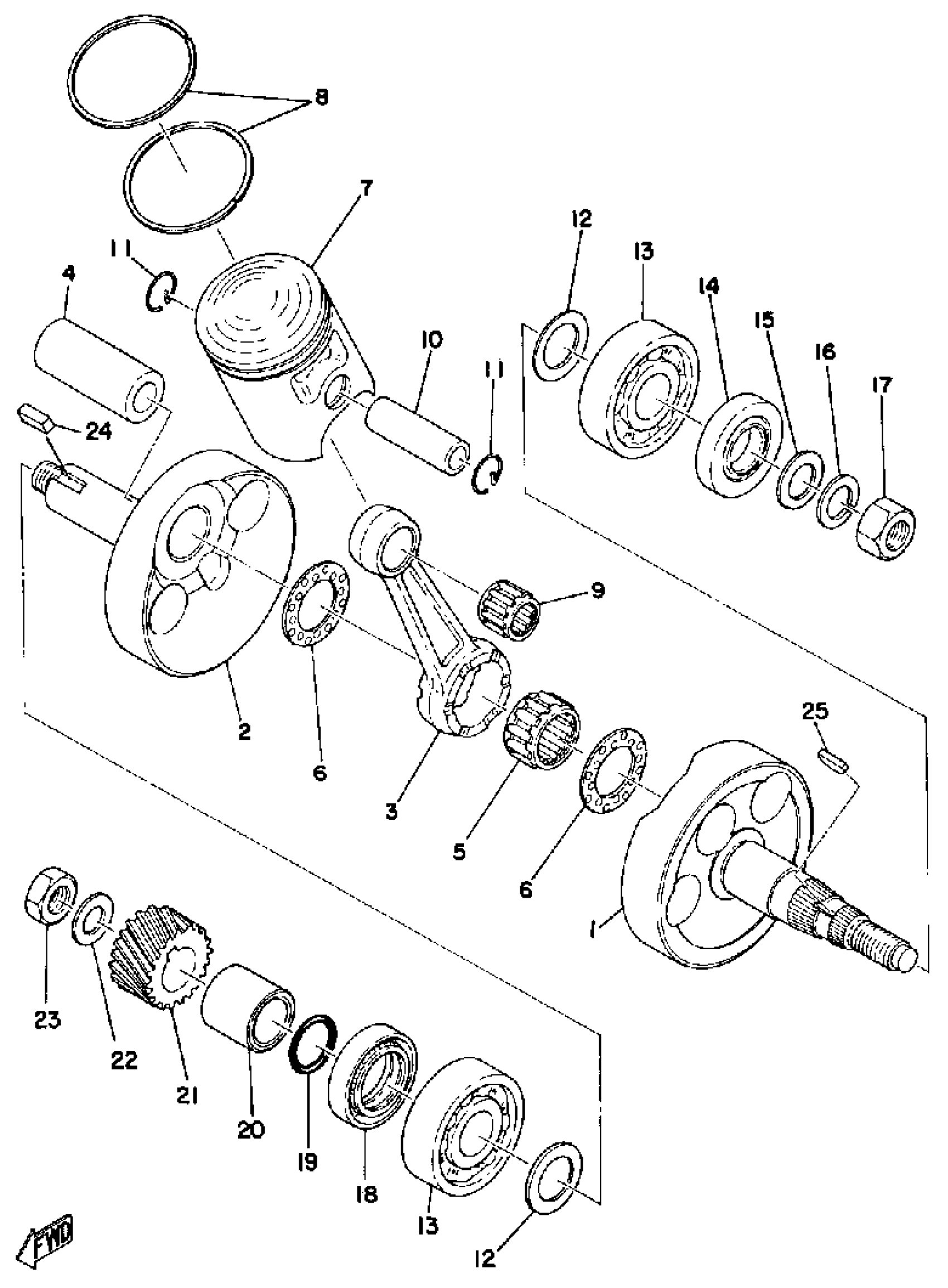

1975 Yamaha RS100 (RS100B) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

1M7-11400-00-00

1
Out of stock

1

CRANK 1

(427-11412-00-00)

1
Out of stock

2

CRANK 2

(336-11422-01-00)

1
Out of stock

2

PISTON KIT STD

(463-11630-00-00)

1
Out of stock

2

PISTON KIT 1ST

(463-11630-10-00)

1
Out of stock

2

PISTON KIT 2ND

(463-11630-20-00)

1
Out of stock

3

ROD, CONNECTING

1M7-11651-00-00

1

$106.31

In stock

4

PIN, CRANK

5E2-11681-00-00

1

$28.66

In stock

5

BRG,CYL-CAL ROLLER 16G TM

93310-422E7-00

—

$39.02

In stock

6

WASHER (29L)

90209-22248-00

—
Out of stock

7

PISTON STD

(463-11631-01-96)

1
Out of stock

7

PISTON 1 O/S 0.25

(463-11635-01-00)

1
Out of stock

7

PISTON 2 O/S 0.50

(463-11636-01-00)

1
Out of stock

8

PISTON RING SET (STD)

335-11601-00-00

—

$34.83

In stock

8

PISTON RING SET (1STO/S)

335-11601-10-00

—

$30.91

In stock

8

PISTON RING SET (2NDO/S)

335-11601-20-00

—

$28.23

In stock

9

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

—

$25.49

In stock

10

PIN, PISTON

131-11633-00-00

—

$18.28

In stock

11

CIRCLIP 131116340000

93450-15023-00

—

$5.20

In stock

12

SHIM, CRANK 1

136-11561-00-03

1
Out of stock

12

SHIM, CRANK 1

136-11561-00-04

1
Out of stock

12

SHIM, CRANK 1

136-11561-00-05

1
Out of stock

12

SHIM, CRANK 1

136-11561-00-06

1
Out of stock

12

SHIM, CRANK 1

136-11561-00-07

1
Out of stock

12

SHIM, CRANK 1

136-11561-00-08

1
Out of stock

13

—

$54.91

In stock

14

OIL SEAL(4BA)

93102-20447-00

—
Out of stock

15

WASHER (492)

90201-12535-00

—
Out of stock

16

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

17

NUT(3DM)

95304-12600-00

—

$6.68

In stock

18

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

19

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

20

—

$7.49

In stock

21

GEAR, PRIMARY DRIVE (19T)

336-16111-00-00

1
Out of stock

22

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

23

NUT(1EE)

90179-12659-00

—

$5.37

In stock

24

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

25

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock
