1975 Yamaha RS100 (RS100B) OIL Pump Diagram

← All diagrams

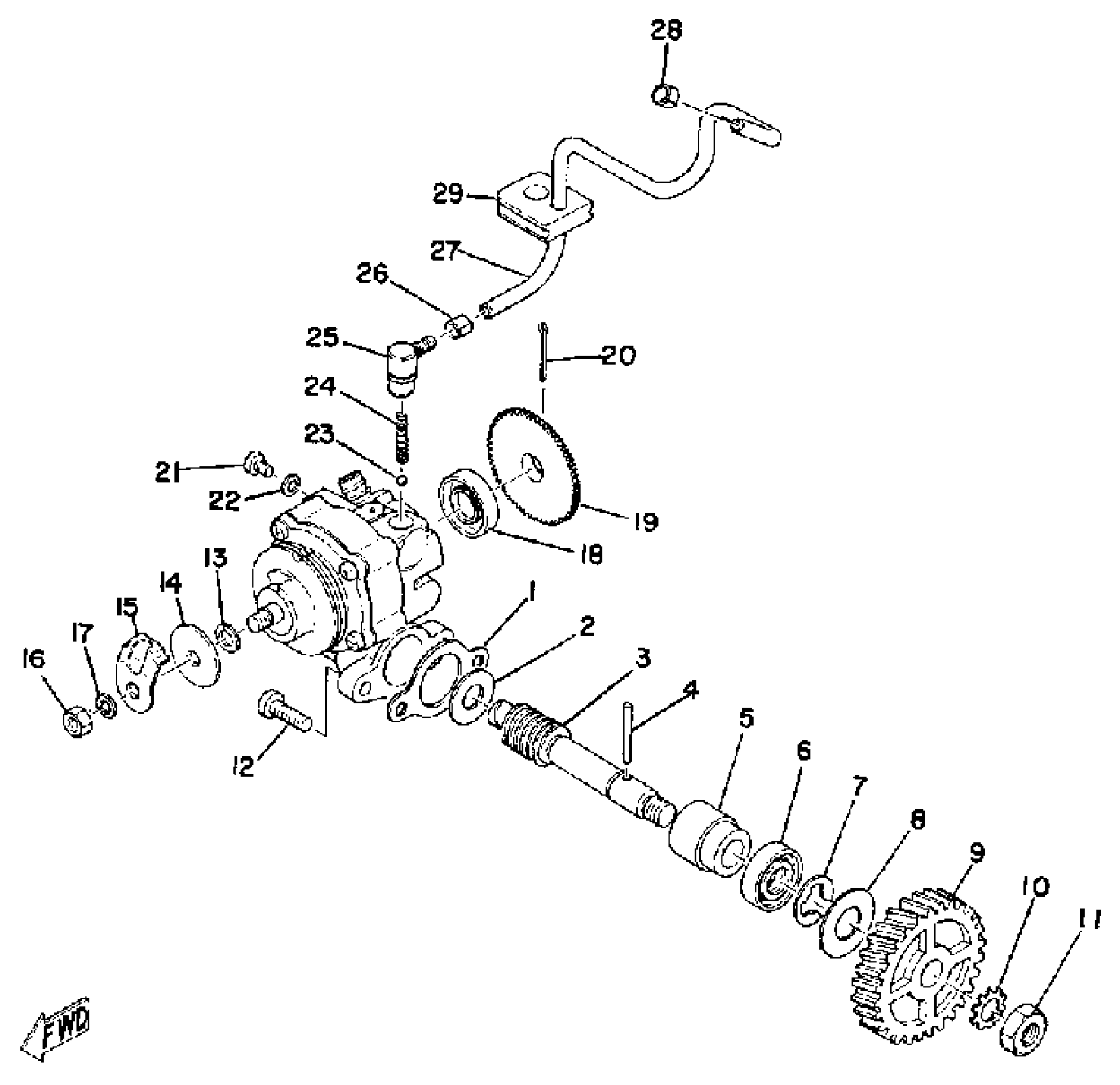

Find the part on the OIL Pump diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha RS100 (RS100B) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

OIL PUMP ASSEMBLY

(463-13101-01-00)

1
Out of stock

2

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

3

SHAFT, WORM

275-13175-02-00

1

$22.03

In stock

4

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

5

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

6

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

7

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

8

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

9

GEAR, DRIVE

248-13178-00-00

—

$23.02

In stock

10

WASHER (688)

92990-08400-00

1

$3.46

In stock

11

. NUT

95380-08700-00

1

$3.07

In stock

12

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

13

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

14

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

15

COVER, AJST PULLEY

(402-13146-00-00)

1
Out of stock

16

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

19

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

20

. PIN, COTTER

91401-12018-00

1
Out of stock

21

SCREW, BIND

98980-04008-00

1

$3.26

In stock

22

GASKET 137131870000

90430-04004-00

—
Out of stock

23

BALL

93505-32002-00

—

$2.22

In stock

24

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

25

NOZZLE

353-13552-01-00

—
Out of stock

26

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

27

HOSE

(90445-05266-00)

1
Out of stock

28

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

29

HOLDER, OIL PIPE

248-13174-00-00

—
Out of stock
