2017 Suzuki RMX450ZL7 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2017 Suzuki RMX450ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

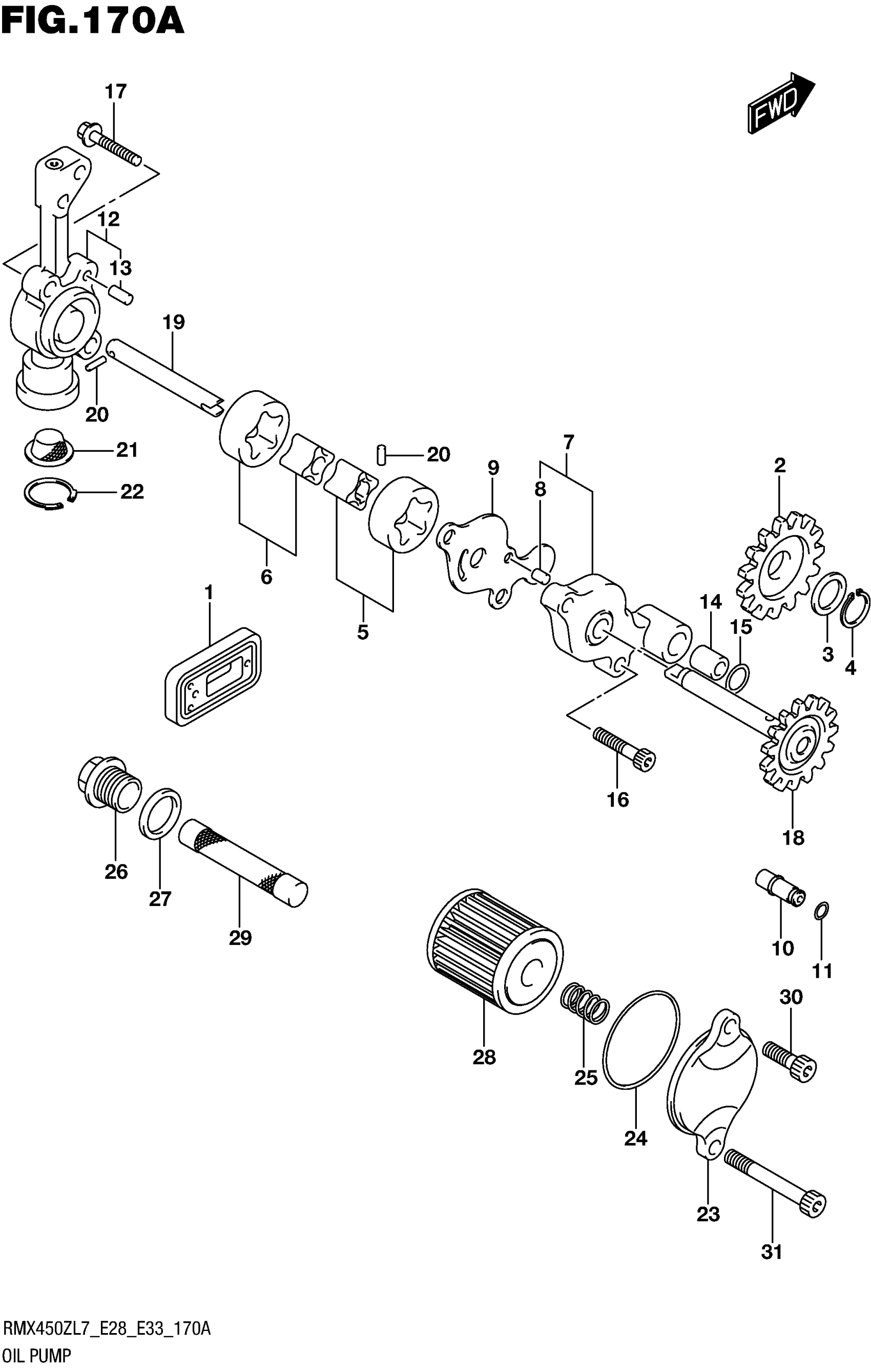

2017 Suzuki RMX450ZL7 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY, OIL REED

13150-28H00

1
Out of stock

2

GEAR,OIL PUMP IDLE (NT:15)

16321-28H00

1
Out of stock

3

SHIM (12X18X0.5)

09181-12130

1
Out of stock

4

CIRCLIP

08331-3112A

1
Out of stock

5

ROTOR SET,OIL PUMP NO.1

16410-35G00

1
Out of stock

6

ROTOR SET,OIL PUMP

16410-45G00

1
Out of stock

7

COVER,OIL PUMP NO.1

16430-28H00

1
Out of stock

8

PIN (4X13.8)

04221-04089

1
Out of stock

9

PLATE,OIL PUMP NO.1

16432-35G10

1
Out of stock

10

VALVE ASSY, OIL RELIEF

16440-28H00

1
Out of stock

11

O RING (D:1.2,ID:4.7)

09280-05007

1
Out of stock

12

COVER, OIL PUMP NO.2

16450-28H01

1
Out of stock

13

PIN (4X13.8)

04221-04089

1
Out of stock

14

PIN

04211-09149

1
Out of stock

15

.O RING (D:1.9,ID:8.6)

09280-09005

1
Out of stock

16

BOLT

07130-0520A

2
Out of stock

17

BOLT

01547-0625A

1
Out of stock

18

SHAFT,OIL PUMP DRIVEN GEAR (N

16440-35G10

1
Out of stock

19

SHAFT,OIL PUMP NO.2

16443-28H00

1
Out of stock

20

PIN (2.5X11.8)

09261-02008

2

$1.77

In stock

21

STRAINER,OIL PUMP NO.2

16530-28H00

1
Out of stock

22

CIRCLIP

08331-4119A

1
Out of stock

23

CAP,ENG OIL FILTER OUTER

16315-35G30

1
Out of stock

24

O-RING (D:2,ID:38.5) This part replaces 09280-39001.

09280-39002

1
Out of stock

25

SPRING

09440-10038

1
Out of stock

26

CAP, ENG OIL STRAINER

16316-10H01

1
Out of stock

27

GASKET (16X22X2)

09168-16002

1
Out of stock

28

FILTER, ENG OIL

16510-35G00

1
Out of stock

29

STRAINER, ENGINE OIL

16520-10H00

1
Out of stock

30

BOLT

01547-0616A

1
Out of stock

31

BOLT

01547-0640A

1
Out of stock
