1996 Suzuki RMX250T Steering Stem Diagram

← All diagrams

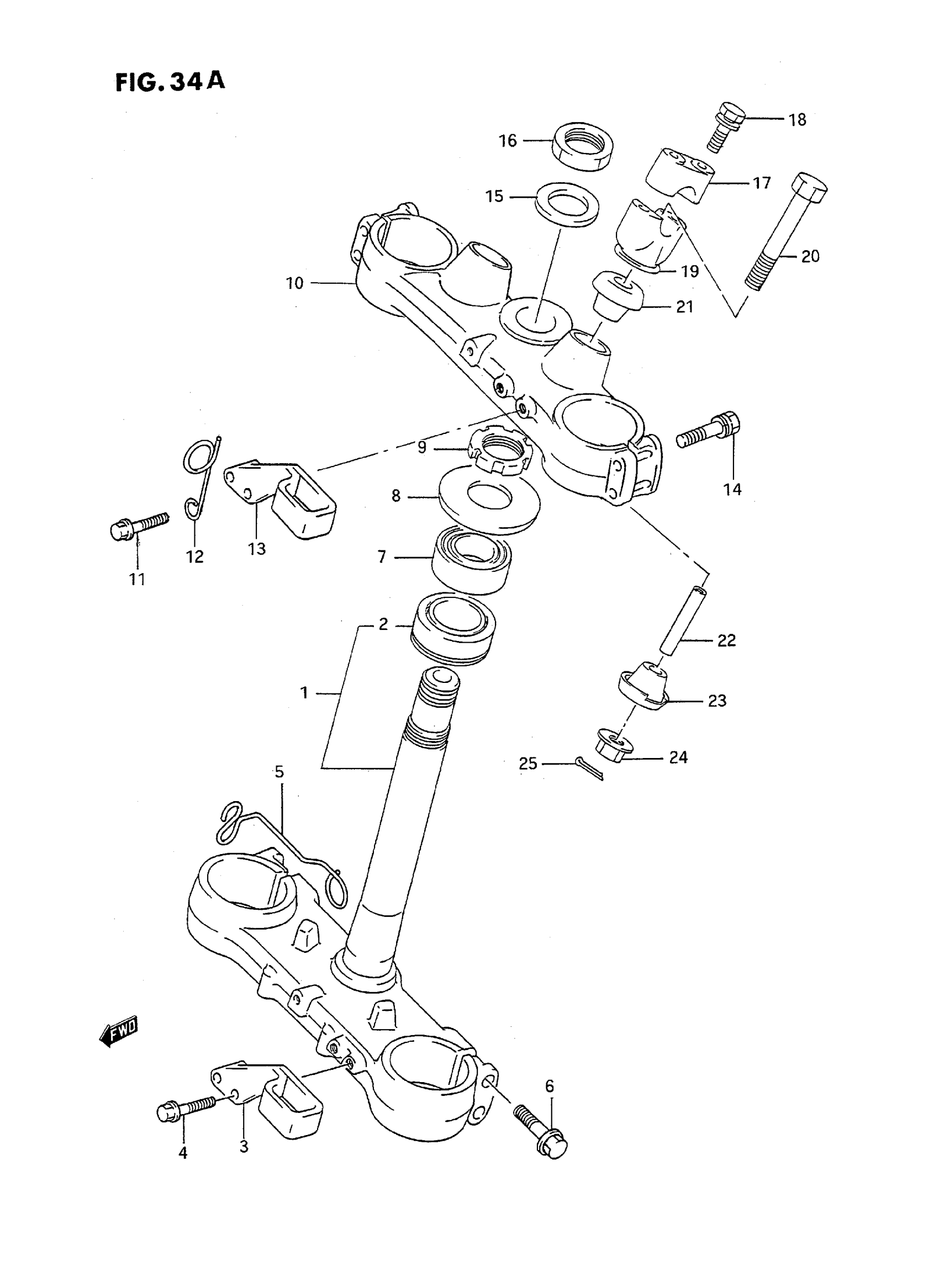

Find the part on the Steering Stem diagram for your 1996 Suzuki RMX250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki RMX250T Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | MODEL M This part replaces 51410-05D60.

51410-43D01

1
Out of stock

1

STEM, STEERING | MODEL N; Includes Item(s) 2

51410-43D01

1
Out of stock

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

1
Out of stock

3

GUIDE, HOSE LOWER

58621-05D60

1
Out of stock

4

BOLT This part replaces 58629-27C40.

01547-06257

2
Out of stock

5

GUIDE, METER CABLE

51452-05D60

1
Out of stock

6

BOLT This part replaces 51328-27C40.

51166-27E30

4
Out of stock

7

BEARING This part replaces 09265-28002.

09265-28003

1
Out of stock

8

SEAL, STEERING

51643-28C00

1
Out of stock

9

NUT, STEERING

51631-28C10

1
Out of stock

10

HEAD, STEERING STEM

51310-05D60

1
Out of stock

11

BOLT This part replaces 58629-27C40.

01547-06257

2
Out of stock

12

GUIDE,CLUTCH CA This part replaces 58294-27C00.

58294-27C01

1
Out of stock

13

GUIDE, HOSE UPPER

58621-27C40

1
Out of stock

14

BOLT This part replaces 51328-27C40.

51166-27E30

4
Out of stock

15

1

$20.30

In stock

16

NUT, STEM HEAD

51353-27C40

1
Out of stock

17

HOLDER, HANDLE

56211-27100

2
Out of stock

18

4

$5.09

In stock

19

HOLDER, HANDLE LOWER

56221-28C60

2
Out of stock

20

BOLT, LOWER HANDLE

56321-28C60

2
Out of stock

21

CUSHION,RUBBER This part replaces 56241-28C60.

56241-28C61

2
Out of stock

22

SPACER

56243-42A00

2
Out of stock

23

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

2
Out of stock

24

NUT

08319-31107

2
Out of stock

25

PIN This part replaces 04111-20308.

04111-2030A

2
Out of stock

26

REFER TO FIG.34B(I- 4) FOR

SPECIAL NOTE

—
Out of stock
