1996 Suzuki RMX250T Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1996 Suzuki RMX250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

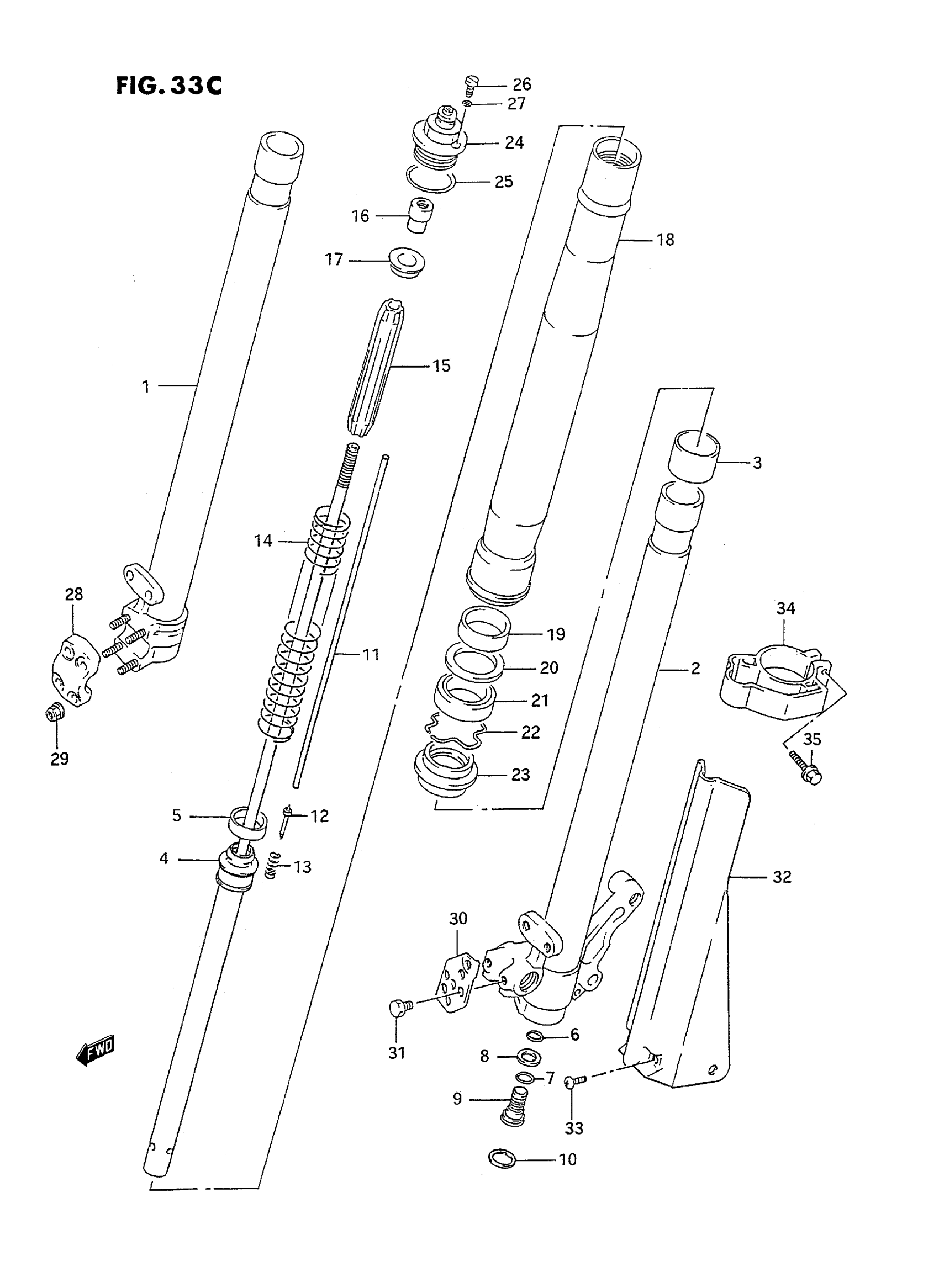

1996 Suzuki RMX250T Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, R

51103-05D80

1
Out of stock

DAMPER ASSY, L | Includes Item(s) 1 - 31

51104-05D80

1
Out of stock

1

TUBE, INNER RH

51110-43D00

1
Out of stock

2

TUBE, INNER LH

51120-43D00

1
Out of stock

3

BUSH, SLIDE

51121-27C40

2
Out of stock

4

DAMPER

51190-05D80

2
Out of stock

5

RING, PISTON

51176-43D00

2
Out of stock

6

O RING, CENTER BOLT UPPER

51174-43D00

2
Out of stock

7

O RING, CENTER BOLT

51177-43D00

2
Out of stock

8

GASKET, CENTER BOLT

51148-43D00

2
Out of stock

9

BOLT, CENTER

51170-05D80

2
Out of stock

10

RING, STOPPER

51133-43D00

2
Out of stock

11

ROD, PUSH

51191-43D00

2
Out of stock

12

NEEDLE

51192-05D80

2

$24.27

In stock

13

2

$7.12

In stock

14

SPRING, MAIN This part replaces 51171-05D80.

51171-28C80

2
Out of stock

15

GUIDE, SPRING

51172-43D00

2
Out of stock

16

NUT, ROD

51129-43D00

2
Out of stock

17

SEAT, SPRING UPPER

51175-43D00

2
Out of stock

18

TUBE, OUTER

51130-43D00

2
Out of stock

19

BUSH, GUIDE

51167-27C40

2
Out of stock

20

SPACER, SEAL

51158-27C40

2
Out of stock

21

SEAL, OIL This part replaces 51153-43D00.

51153-28E30

2
Out of stock

22

RING, STOPPER

51156-27C40

2

$5.33

In stock

23

SEAL, DUST This part replaces 51173-43D00.

51173-28E40

2
Out of stock

24

BOLT, FORK

51351-43D00

2
Out of stock

25

O RING, FORK BOLT

51117-27C40

2

$7.02

In stock

26

BOLT, PLUG

51357-27C40

2
Out of stock

27

O RING, ROD This part replaces 51358-27C40.

51117-19C10

2
Out of stock

28

HOLDER, AXLE RH

51132-27C40

1
Out of stock

29

NUT

08319-31067

4
Out of stock

30

GUIDE, HOSE LH

59248-27C40

1
Out of stock

31

BOLT This part replaces 59249-27C40.

01500-05087

2
Out of stock

32

PROTECTOR, RH This part replaces 51501-05D80.

51501-29E00

1
Out of stock

32

PROTECTOR, LH This part replaces 51511-43D00.

51511-29E00

1
Out of stock

33

BOLT, PROTECTOR

58627-27C40

4

$3.87

In stock

34

GUIDE, FORK PROTECTOR

51210-43D00

2
Out of stock

35

BOLT This part replaces 58628-43D00.

01547-06207

2
Out of stock

36

REFER TO FIG.33D(H-10) FOR

SPECIAL NOTE

—
Out of stock
