1996 Suzuki RMX250T Front Damper Diagram

← All diagrams

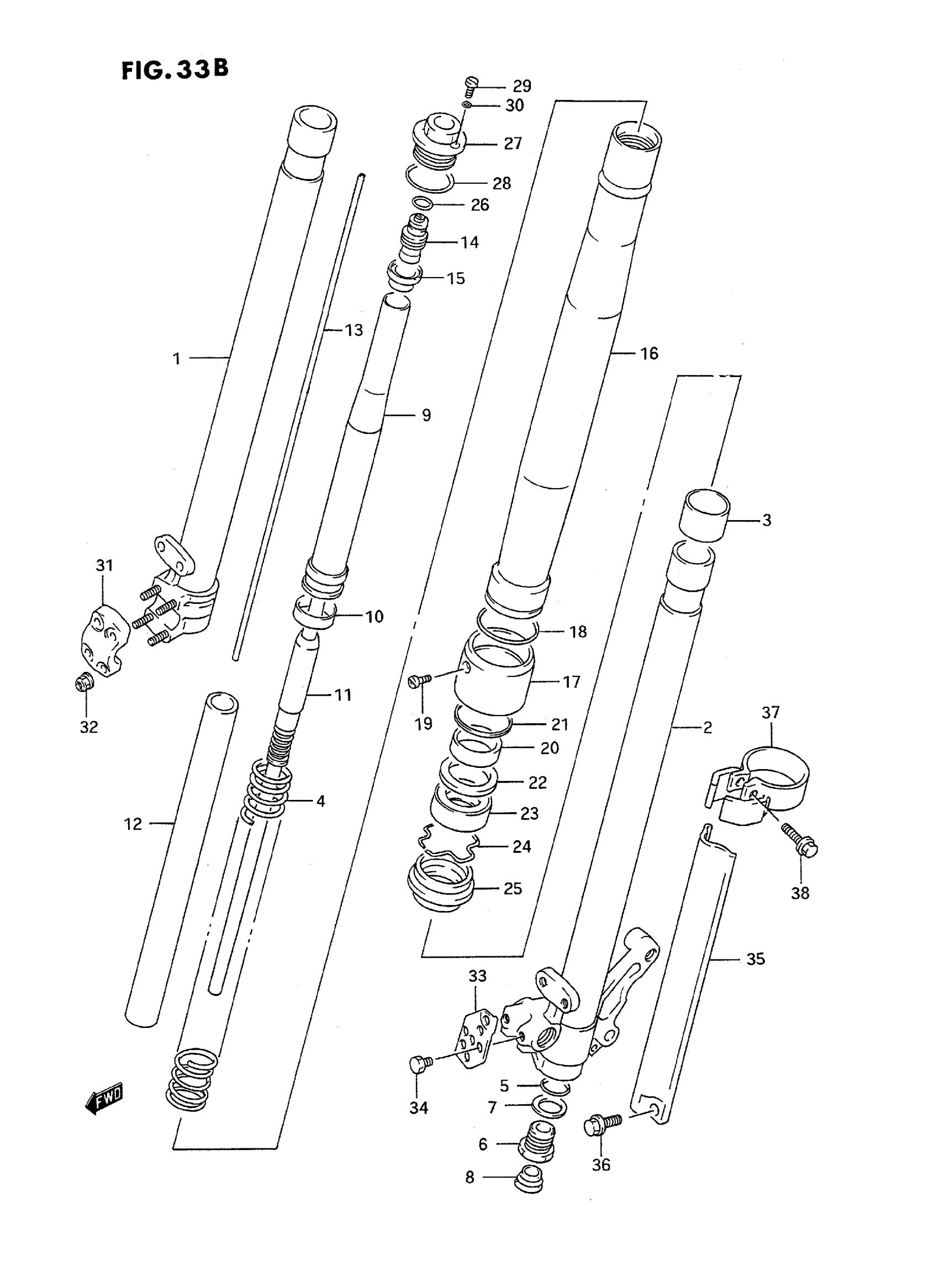

Find the part on the Front Damper diagram for your 1996 Suzuki RMX250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki RMX250T Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, RH

51103-05D60

1
Out of stock

DAMPER ASSY, LH | Includes Item(s) 1 - 34

51104-05D60

1
Out of stock

1

TUBE, INNER RH

51110-27C40

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 51120-27C40.

51120-27C41

1
Out of stock

3

BUSH, SLIDE

51121-27C40

2
Out of stock

4

SPRING, MAIN This part replaces 51171-05D60.

51171-27C40

2
Out of stock

5

O RING This part replaces 51174-27C40.

51175-03B30

2
Out of stock

6

BOLT, CENTER

51170-05D60

2
Out of stock

7

GASKET

51148-27C40

2
Out of stock

8

CAP

51189-08D00

2
Out of stock

9

SPACER, SPRING

51175-27C40

2
Out of stock

10

RING, PISTON

51176-27C40

2
Out of stock

11

ROD ASSY, PISTON

51190-05D60

2
Out of stock

12

CYLINDER

51146-27C40

2
Out of stock

13

ROD, PUSH

51191-27C40

2
Out of stock

14

ADJUSTER, SPRING

51180-27C40

2
Out of stock

15

SEAT, SPRING STOPPER

51355-27C41

2
Out of stock

16

TUBE, OUTER

51130-27C40

2
Out of stock

17

CASE, OIL SEAL

51135-27C40

2
Out of stock

18

O RING

51131-27C40

2
Out of stock

19

SCREW

51134-27C40

2
Out of stock

20

BUSH, GUIDE

51167-27C40

2
Out of stock

21

RING, STOPPER UPPER

51133-27C40

2
Out of stock

22

SPACER, SEAL

51158-27C40

2
Out of stock

23

SEAL, OIL This part replaces 51153-27C41.

51153-28E30

2
Out of stock

24

2

$5.33

In stock

25

SEAL, DUST This part replaces 51173-27C41.

51173-28E40

2
Out of stock

26

O RING, OIL GALLERY This part replaces 51129-27C40.

09280-12012

2
Out of stock

27

BOLT, FORK

51351-27C40

2
Out of stock

28

O RING

51117-27C40

2

$7.02

In stock

29

BOLT, PLUG

51357-27C40

2
Out of stock

30

O RING, ROD This part replaces 51358-27C40.

51117-19C10

2
Out of stock

31

HOLDER, AXLE RH

51132-27C40

1
Out of stock

32

NUT

08319-31067

4
Out of stock

33

GUIDE, HOSE LH

59248-05D60

1
Out of stock

34

BOLT This part replaces 59249-27C40.

01500-05087

2
Out of stock

35

PROTECTOR, FORK RH

51501-05D60

1
Out of stock

35

PROTECTOR, FORK LH

51511-27C40

1
Out of stock

36

BOLT, PROTECTOR

58627-27C40

4

$3.87

In stock

37

GUIDE, FORK PROTECTOR RH

51201-27C40

1
Out of stock

37

GUIDE, FORK PROTECTOR LH

51211-27C40

1
Out of stock

38

BOLT, GUIDE

58628-27C40

2
Out of stock

39

REFER TO FIG.33C(H- 8) FOR

SPECIAL NOTE

—
Out of stock
