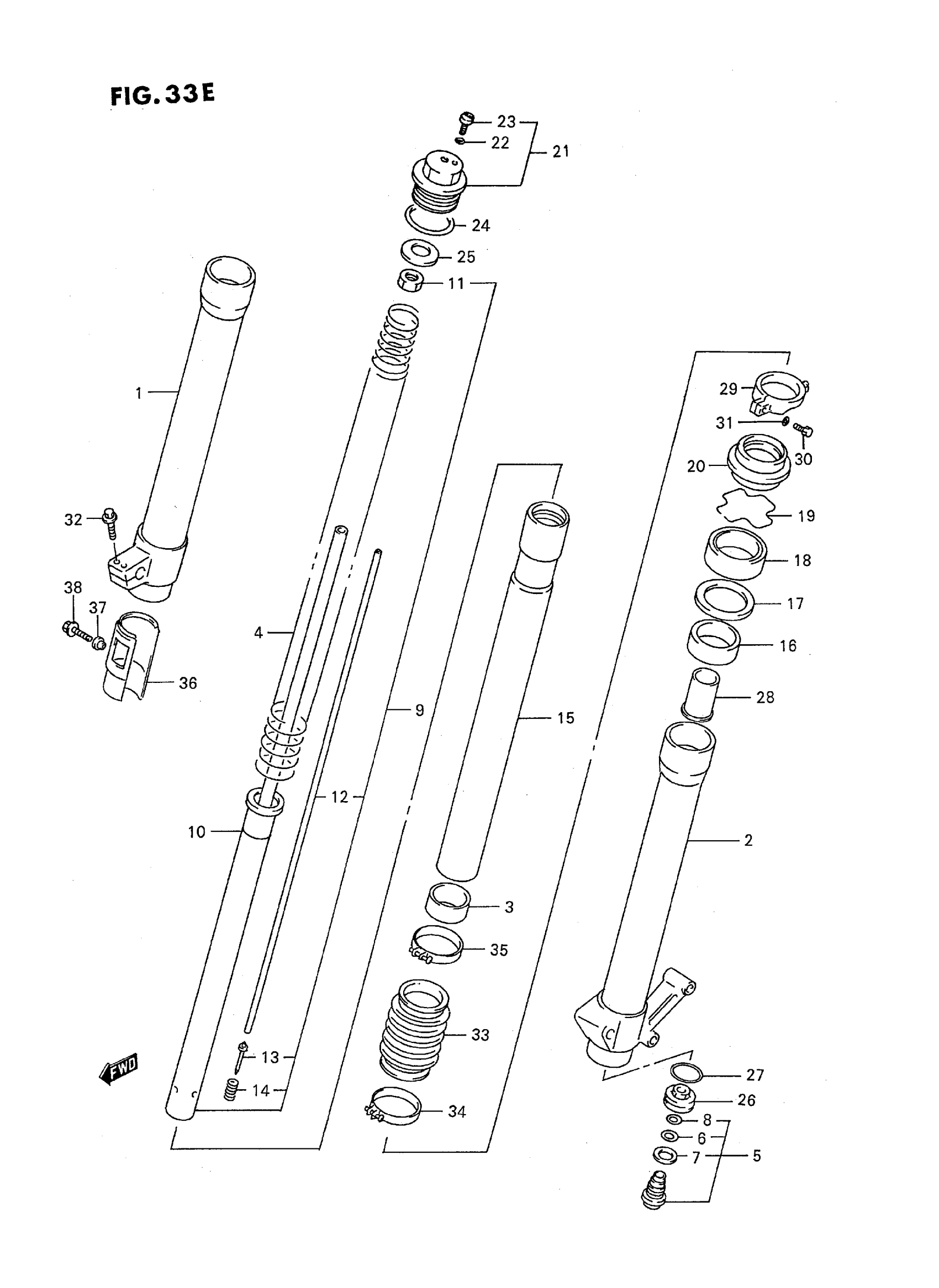

Find the part on the Front Damper diagram for your 1996 Suzuki RMX250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki RMX250T Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, RH

51103-29EA0

1
Out of stock

DAMPER ASSY, LH | Includes Item(s) 1 - 32

51104-29EA0

1
Out of stock

1

TUBE, OUTER RH

51130-29EA0

1
Out of stock

2

TUBE, OUTER LH

51140-29EA0

1
Out of stock

3

BUSH, SLIDE

51121-27C40

2
Out of stock

4

SPRING, FRONT

51171-29EA0

2
Out of stock

5

BOLT, CENTER

51170-29EA0

2
Out of stock

6

O RING, CENTER BOLT UPPER

51177-43D00

2
Out of stock

7

GASKET

51148-43D00

2
Out of stock

8

O RING, CENTER BOLT UPPER

51174-43D00

2
Out of stock

9

DAMPER, FRONT

51190-29EA0

2
Out of stock

10

BUSH, SLIDE

51122-29EA0

2
Out of stock

11

NUT, PUSH

51827-33E00

2
Out of stock

12

ROD, PUSH

51191-29EA0

2
Out of stock

13

NEEDLE

51192-05D80

2

$24.27

In stock

14

SPRING, PUSH ROD

51193-28E00

2

$7.12

In stock

15

TUBE, INNER

51110-29EA0

2
Out of stock

16

BUSH, GUIDE

51167-27C40

2
Out of stock

17

SPACER, SEAL

51158-27C40

2
Out of stock

18

SEAL, OIL

51153-28E30

2
Out of stock

19

2

$5.33

In stock

20

SEAL, DUST This part replaces 51173-28E30.

51173-28E40

2
Out of stock

21

BOLT, FORK

51351-29EA0

2
Out of stock

22

...O-RING

51358-28E30

2

$4.83

In stock

23

BOLT

51357-28E30

2

$16.23

In stock

24

O RING

51117-29EA0

2
Out of stock

25

JOINT, SPRING

51172-29EA0

2
Out of stock

26

PLATE, END

51205-29EA0

2
Out of stock

27

O RING

51187-08D00

2
Out of stock

28

PIECE, OIL LOCK

51195-29EA0

2
Out of stock

29

HOLDER, BOOT

51203-29EA0

2
Out of stock

30

BOLT

07130-05207

2

$3.30

In stock

31

2

$2.33

In stock

32

BOLT, RH

01550-08407

2
Out of stock

33

BOOT (YELLOW)

51571-29EA0-163

2
Out of stock

34

CLAMP, LOWER

09402-66303

2
Out of stock

35

CLAMP, UPPER

51575-29EA0

2
Out of stock

36

PROTECTOR SET,O This part replaces 51551-36E30-25Y.

51500-36E30-25Y

1
Out of stock

37

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

1
Out of stock

38

BOLT This part replaces 01547-06123.

01547-0612B

1
Out of stock
