1996 Suzuki RMX250T Front Wheel Diagram

← All diagrams

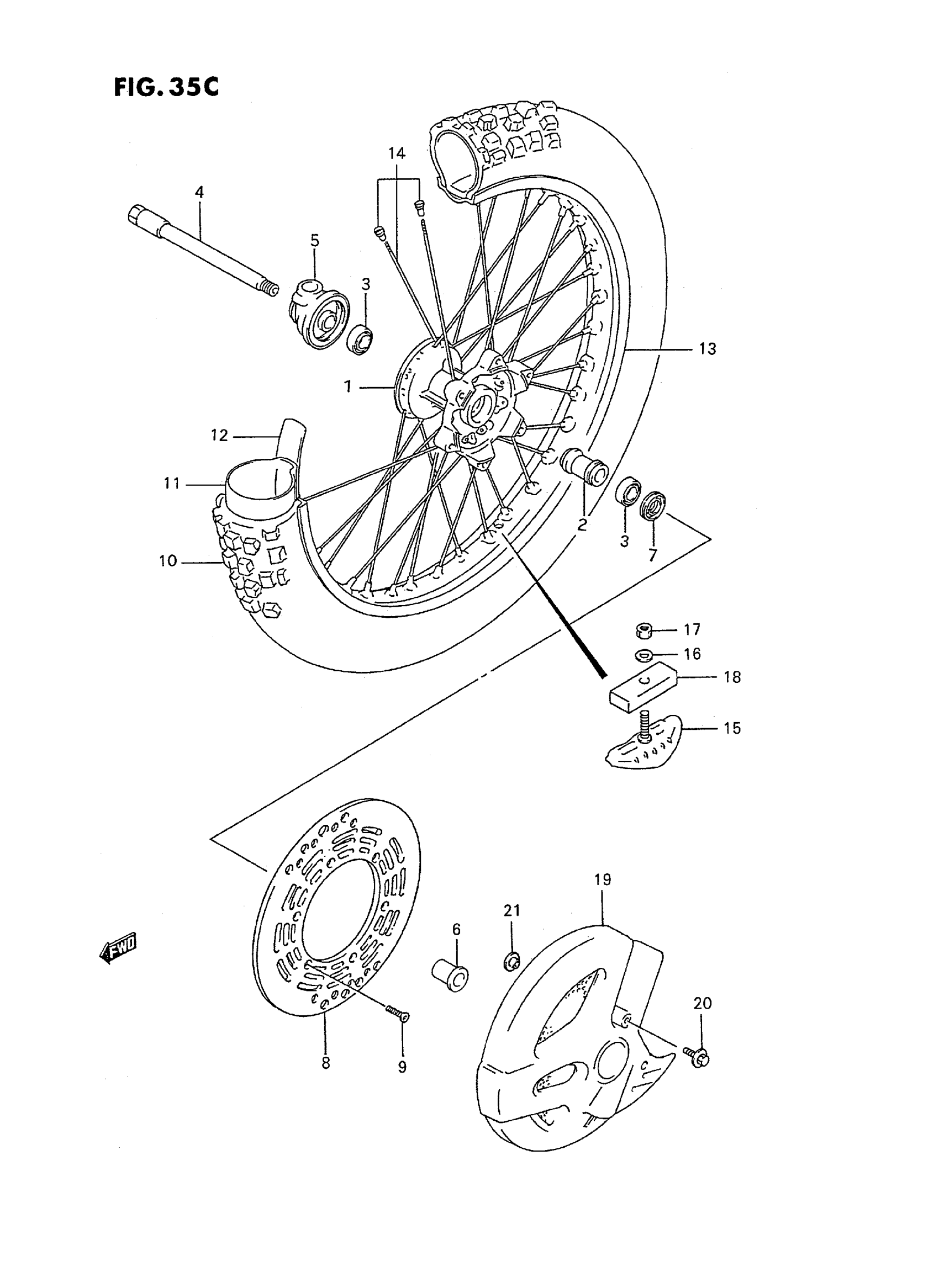

Find the part on the Front Wheel diagram for your 1996 Suzuki RMX250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki RMX250T Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT WHEEL

54111-05D00

1
Out of stock

2

SPACER, FRONT HUB

54730-01B00

1
Out of stock

3

BEARING

08123-60037

2
Out of stock

4

AXLE, FRONT

54711-05D01

1
Out of stock

5

BOX ASSY,SPEEDOMETER GEAR This part replaces 54600-05D00.

54600-05D01

1
Out of stock

6

SPACER, AXLE, LH

54751-05D00

1
Out of stock

7

OIL SEAL (23X35X6)

09284-23001

1
Out of stock

8

DISC, FRONT BRAKE

59221-28C00

1
Out of stock

9

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

6
Out of stock

10

TIRE, FRONT (80/100-21)

55110-28C21

1
Out of stock

11

TIRE, FRONT This part replaces 55200-16510.

55200-16511

1
Out of stock

12

PROTECTOR, INNER TUBE

55261-14540

1
Out of stock

13

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-27C00.

55311-28C01

1
Out of stock

14

SPOKE SET, FRONT WHEEL

55320-28E00

1
Out of stock

15

STOPPER, BEAD

65270-14300

1
Out of stock

16

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock

17

NUT This part replaces 08310-00083.

08310-0008A

1
Out of stock

18

CUSHION, BEAD STOPPER

65271-27C00

1
Out of stock

19

NO DESCRIPTION AVAILABLE This part replaces 59231-36E10-25Y.

59200-36E11-25Y

1
Out of stock

20

BOLT

09116-06170

2

$2.68

In stock

21

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

2
Out of stock
