1996 Suzuki RMX250T Front Wheel Diagram

← All diagrams

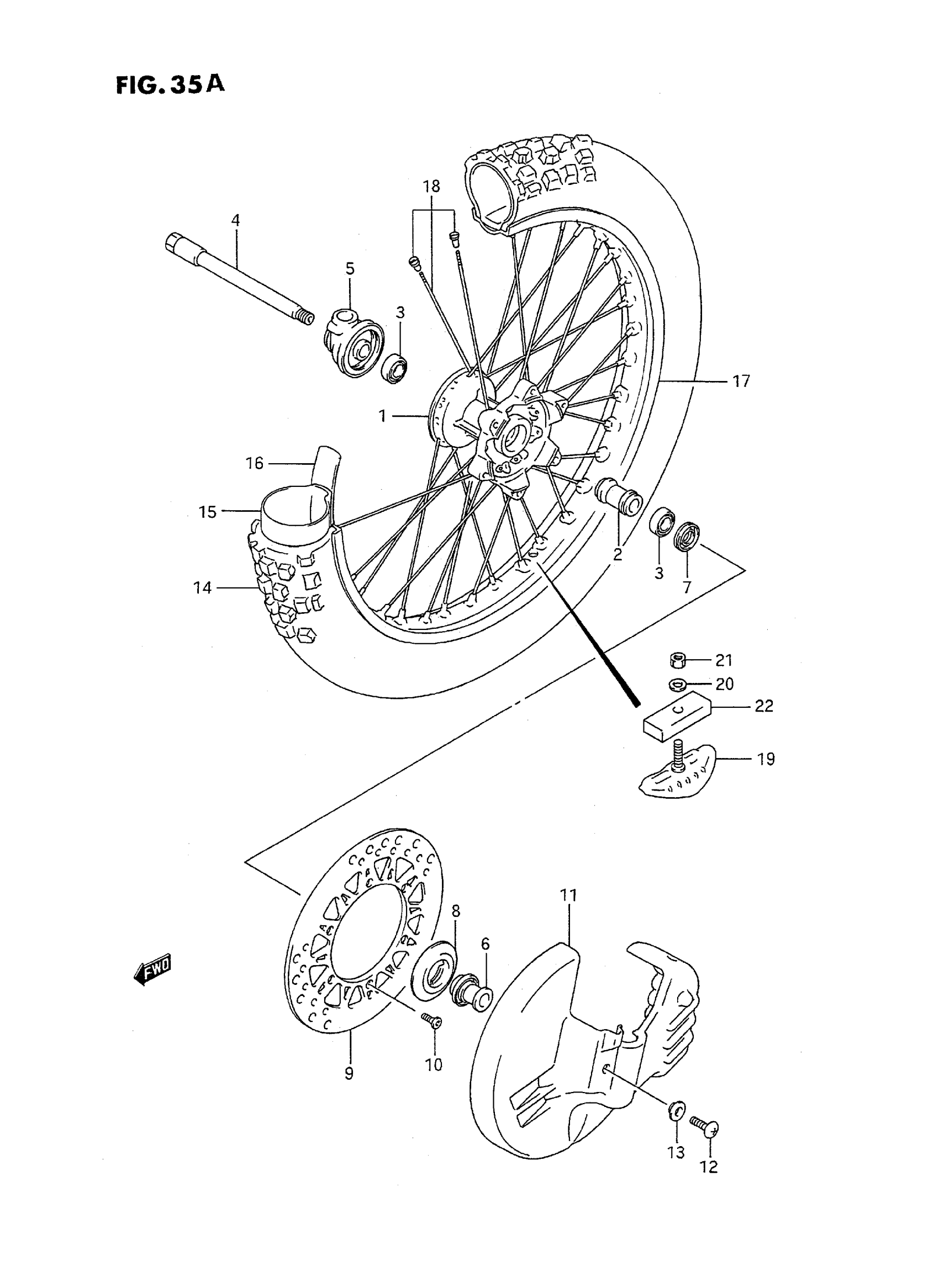

Find the part on the Front Wheel diagram for your 1996 Suzuki RMX250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki RMX250T Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT WHEEL

54111-05D00

1
Out of stock

2

SPACER, FRONT HUB

54730-01B00

1
Out of stock

3

BEARING

08123-60037

2
Out of stock

4

AXLE, FRONT This part replaces 54711-05D00.

54711-05D01

1
Out of stock

5

BOX ASSY,SPEEDOMETER GEAR This part replaces 54600-05D00.

54600-05D01

1
Out of stock

6

SPACER, AXLE, LH

54750-05D00

1
Out of stock

7

OIL SEAL (23X35X6)

09284-23001

1
Out of stock

8

CAP, FRONT HUB LH

54138-27C10

1
Out of stock

9

DISC, FRONT BRAKE This part replaces 59221-27C00.

59221-28C00

1
Out of stock

10

SCREW

02122-06167

6
Out of stock

11

COVER, FRONT BRAKE DISC

59231-05D10

1
Out of stock

12

SCREW

02142-06127

3
Out of stock

13

3

$2.35

In stock

14

TIRE, FRONT (80/100-21) | BRIDGESTONE This part replaces 55100-05D00.

55110-28C21

1
Out of stock

15

TIRE, FRONT This part replaces 55200-16510.

55200-16511

1
Out of stock

16

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

1
Out of stock

17

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-27C00.

55311-28C01

1
Out of stock

18

SPOKE SET, FRONT WHEEL This part replaces 55320-01B00.

55320-28E00

1
Out of stock

19

STOPPER, BEAD

65270-14300

1
Out of stock

20

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

21

1

$1.93

In stock

22

CUSHION, BEAD STOPPER

65271-27C00

1
Out of stock

23

REFER TO FIG.35B(I- 8) FOR

SPECIAL NOTE

—
Out of stock
← Front Wheel Front Wheel →
