1995 Suzuki RMX250 Fuel Tank Diagram

← All diagrams

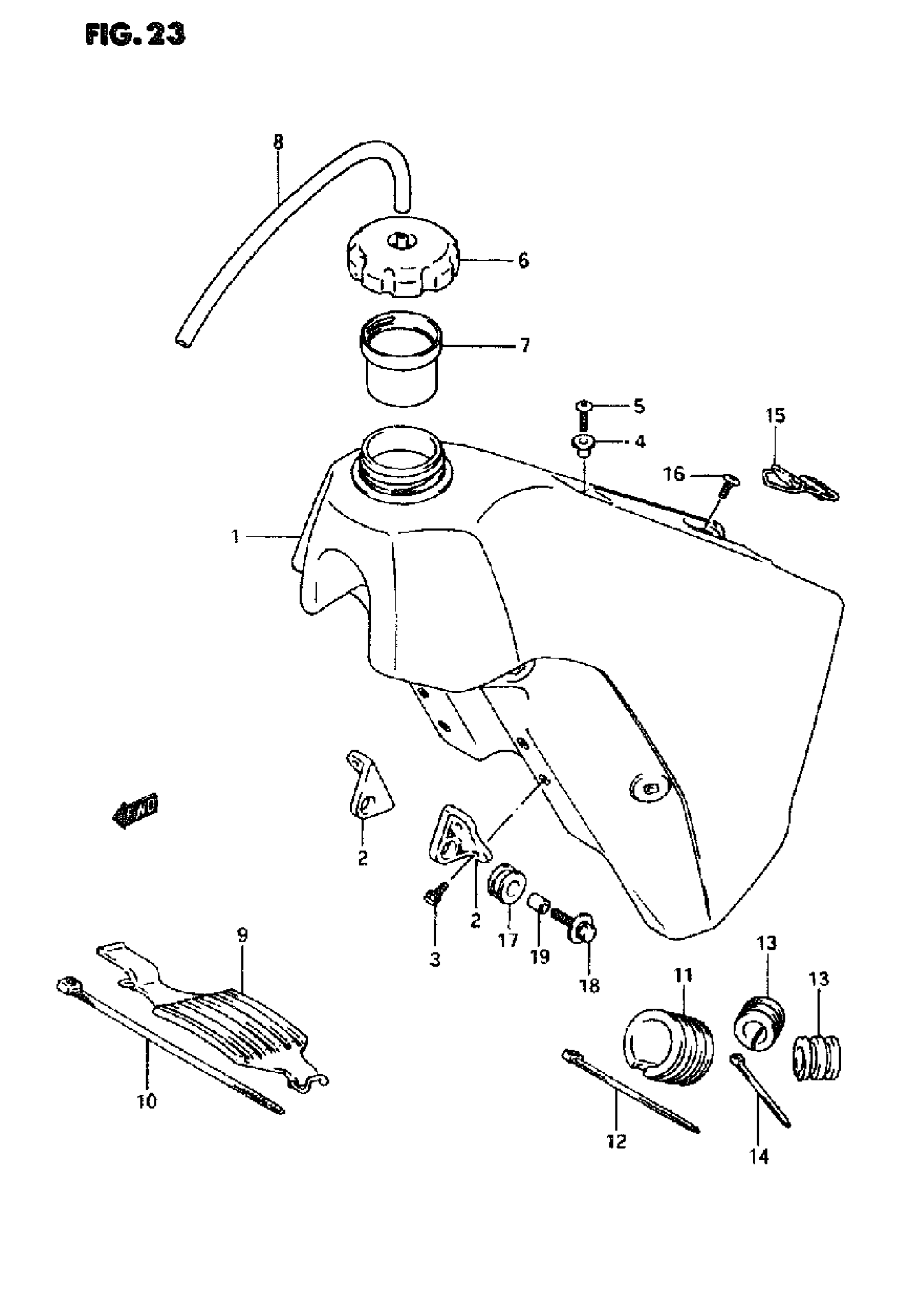

Find the part on the Fuel Tank diagram for your 1995 Suzuki RMX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki RMX250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK SET, FUEL (YELLOW) | MODEL K/L This part replaces 44100-05850-25Y.

44100-05853-25Y

1
Out of stock

1

TANK SET, FUEL (YELLOW) | MODEL M/N This part replaces 44100-05851-25Y.

44100-05853-25Y

1
Out of stock

1

TANK SET, FUEL (YELLOW) | MODEL P/R/S This part replaces 44100-05852-25Y.

44100-05853-25Y

1
Out of stock

2

BRACKET. FRONT

44131-27C01

2
Out of stock

3

BDLT, FRONT

01547-06127

4
Out of stock

4

HOOK, SEAT FR | MODEL K/L/M/N/P This part replaces 44132-27C00.

44132-27C01

1
Out of stock

4

HOOK, SEAT FR | MODEL R/S

44132-27C01

1
Out of stock

5

SCREW, HOOK

02142-06207

1
Out of stock

6

CAP, FUEL TANK

44200-19A01

1
Out of stock

7

TUBE, FILLER INLET

44199-19A00

1
Out of stock

8

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

9

CUSHION, UPPER NO.1 | MODEL K

44541-27C00

1
Out of stock

9

CUSHION. UPPER NO.1 | MODEL L/M/N/P/R/S

44541-26C00

1
Out of stock

10

CLAW | MODEL K

09407-30402

1

$5.25

In stock

10

CLAMP | MODEL L/M/N/P/R/S This part replaces 09407-20405.

09407-25402

1
Out of stock

11

CUSHION, UPPER REAR

44542-26C00

2
Out of stock

12

1

$5.25

In stock

13

CUSHION, UPPER NO.2

44541-26C00

1
Out of stock

14

CLAW

09407-14407

1
Out of stock

15

BAND, REAR

44560-27C00

1
Out of stock

16

SCREW | MODEL K/L/M/N/P This part replaces 02142-06164.

02142-0616A

1
Out of stock

16

SCREW | MODEL R/S This part replaces 02142-06163.

02142-0616A

1
Out of stock

17

CUSHION

09320-12030

2
Out of stock

18

BOLT

09118-08132

2
Out of stock

19

SPACER This part replaces 09180-08003.

09180-08191

2
Out of stock
