1995 Suzuki RMX250 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1995 Suzuki RMX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

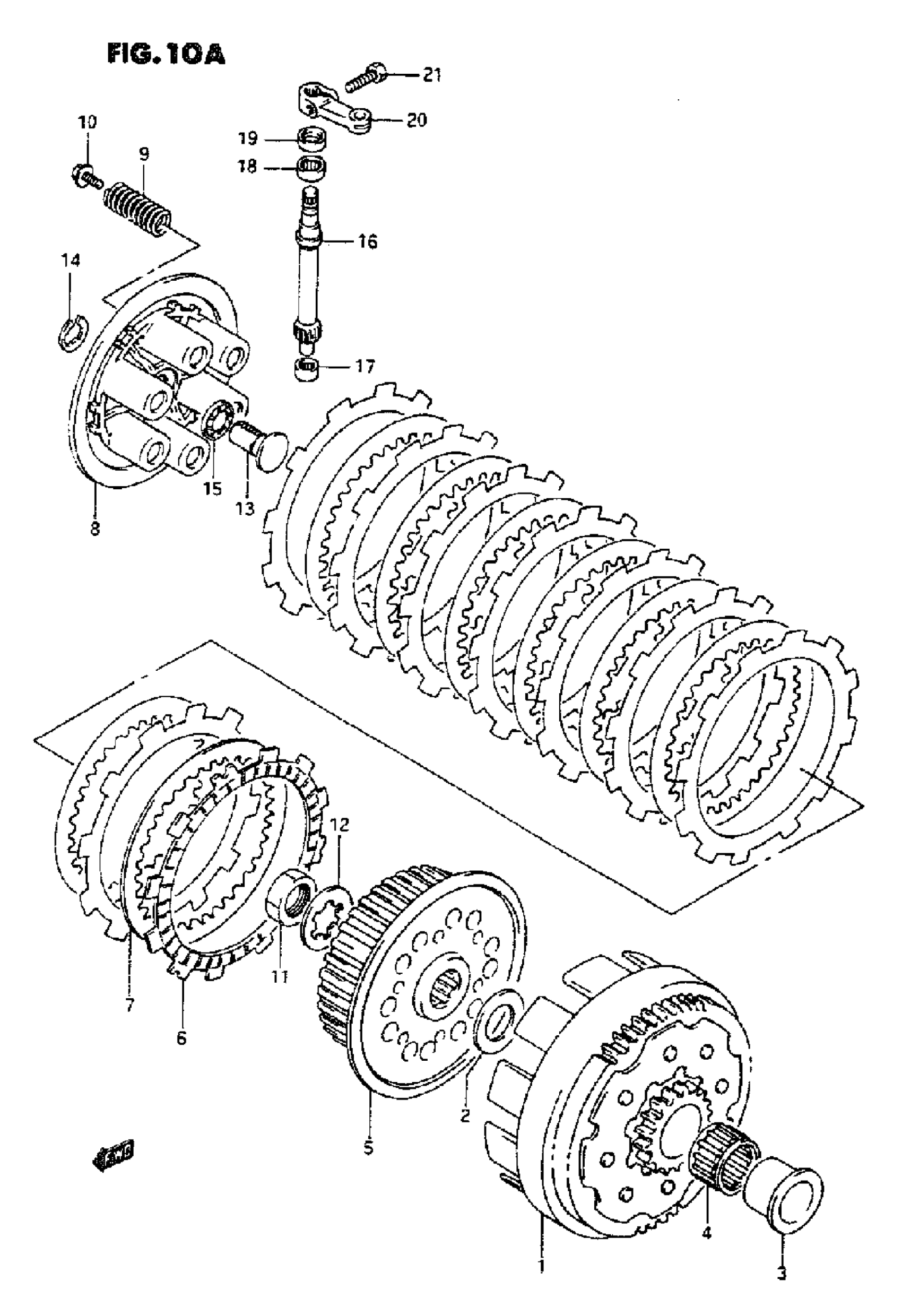

1995 Suzuki RMX250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN This part replaces 21200-28E10.

21200-28E12

1
Out of stock

2

WASHER (22X38X2)

09160-22067

1

$10.90

In stock

3

SPACER

21251-28C01

1
Out of stock

4

BEARING (29X34X21.8) | MODEL N This part replaces 09263-29007.

09263-29006

1
Out of stock

4

BEARING (29X34X2L.8) | MODEL P

09263-29006

1
Out of stock

5

HUB, SLEEVE | MODEL N This part replaces 21410-28C32.

21411-28E10

1
Out of stock

5

HUB, SLEEVE | MODEL P This part replaces 21410-28C33.

21411-28E10

1
Out of stock

6

PLATE, DRIVE NO.1 | MODEL N This part replaces 21441-07A01.

21441-12D01

9
Out of stock

6

PLATE, DRIVE NO.1 | MODEL P This part replaces 21441-07A02.

21441-12D01

9
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 21462-28C32.

21462-28C33

1
Out of stock

9

SPRING

09440-18025

6

$7.98

In stock

10

BOLT (5XI8)

09116-05019

6

$2.49

In stock

11

HOT | MODEL N

09140-20016

1
Out of stock

11

MT | MODEL P

09140-18013

1

$15.33

In stock

12

LOCK WASHER

09167-22021

1

$2.11

In stock

13

1

$29.48

In stock

14

.E-RING This part replaces 08332-11086.

08332-1108A

1
Out of stock

15

THRUST BEARING

09263-10002

1

$9.87

In stock

16

PINION

23261-00B20

1
Out of stock

17

BEARING. NO.1

09263-09001

1

$15.80

In stock

18

BEARING, NO.2

09263-12024

1
Out of stock

19

OIL SEAL (1OXI7X5)

09285-10004

1
Out of stock

21

BOLT This part replaces 01547-06163.

01547-0616B

1
Out of stock
