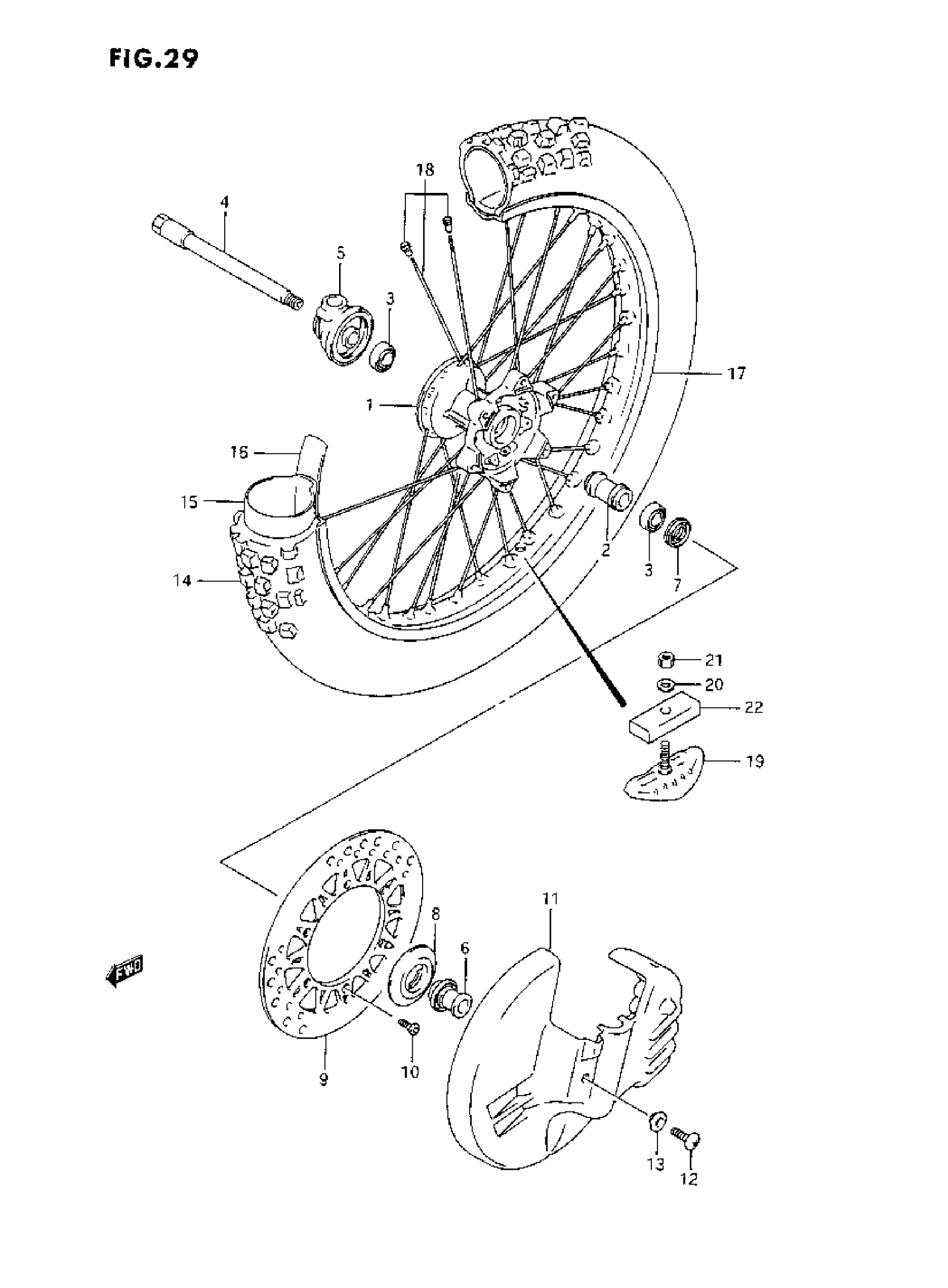

Suzuki RMX250 (1993) FRONT WHEEL (K/L) Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-05D00

Unavailable

2

SPACER, FRONT HUB

54730-01B00

$60.85

3

BEARING

08123-60037

$19.92

4

AXLE, FRONT This part replaces 54711-05D00.

54711-05D01

$110.18

5

BOX ASSY,SPEEDOMETER GEAR This part replaces 54600-05D00.

54600-05D01

$139.57

6

SPACER, AXLE, LH

54750-05D00

Unavailable

7

OIL SEAL (23X35X6)

09284-23001

$7.33

8

CAP, FRONT HUB LH

54138-27C10

Unavailable

9

DISC, FRONT BRAKE This part replaces 59221-27C00.

59221-28C00

Unavailable

10

SCREW

02122-06167

$1.45

11

NO DESCRIPTION AVAILABLE This part replaces 59231-05D00.

59231-05D01

Unavailable

12

SCREW

02142-06127

$1.38

13

WASHER This part replaces 09169-06028.

09169-06041

$1.97

14

TIRE, FRONT (80/100-21) | BRIDGESTONE This part replaces 55100-05D00.

55110-28C21

Unavailable

15

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$34.58

16

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.61

17

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-27C00.

55311-28C01

Unavailable

18

SPOKE SET, FRONT WHEEL This part replaces 55320-01B00.

55320-28E00

$152.52

19

STOPPER, BEAD

65270-14300

$59.52

20

WASHER This part replaces 08322-11088.

08322-01087

$1.86

21

NUT | MODEL K This part replaces 08310-22088.

08310-00087

$1.83

21

NUT | MODEL L This part replaces 08310-12088.

08310-00087

$1.83

22

CUSHION, BEAD STOPPER | MODEL L

65271-27C00

$8.37
