1993 Suzuki RMX250 Front Damper Diagram

← All diagrams

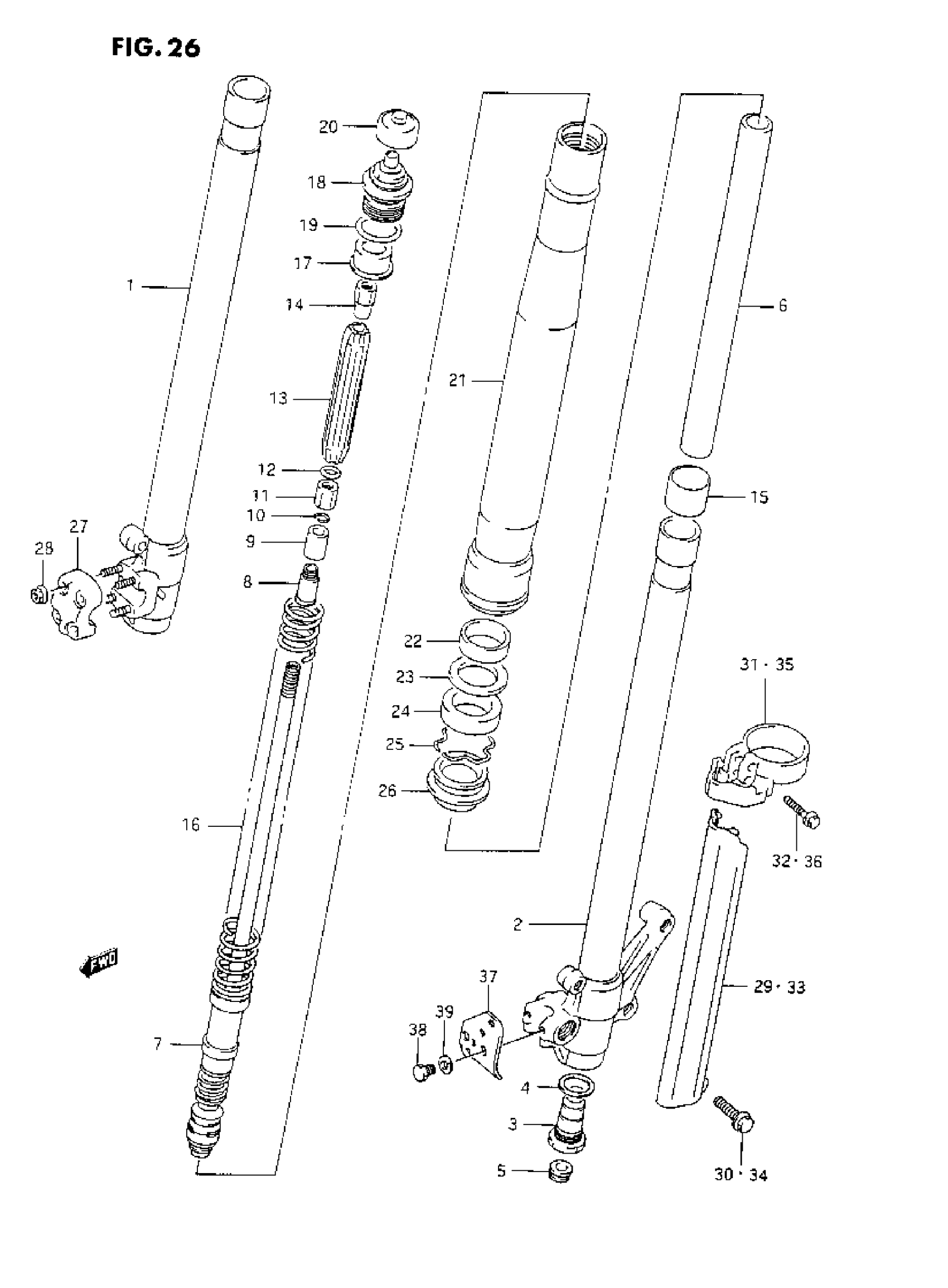

Find the part on the Front Damper diagram for your 1993 Suzuki RMX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki RMX250 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, RH

51103-05D00

1
Out of stock

1

DAMPER ASSY, LH

51104-05D00

1
Out of stock

1

TUBE, INNER RH

51110-28C20

1
Out of stock

2

TUBE, INNER LH

51120-28C20

1
Out of stock

3

VALVE ASSY, BASE

51173-05D00

2
Out of stock

4

GASKET

51148-01B40

2
Out of stock

5

CAP, BASE VALVE

51189-28C00

2
Out of stock

6

CYLINDER

51146-28C00

2
Out of stock

7

ROD ASSY, PISTON

51128-05D00

2
Out of stock

8

PIECE, HOLDER

51812-28C00

2
Out of stock

9

PIECE, OIL LOCK

51811-28C00

2
Out of stock

10

RING, SNAP

51813-28C00

2
Out of stock

11

NUT, PIECE

51814-28C00

2
Out of stock

12

O RING (D:2.4,ID:12.3) This part replaces 51187-28C00.

09280-12008

2
Out of stock

13

GUIDE, SPRING LOWER

51172-28C00

2
Out of stock

14

NUT, ROD

51129-27C00

2
Out of stock

15

.PISTON This part replaces 51121-28C00.

51121-26E10

2
Out of stock

16

SPRING

51171-28C00

2
Out of stock

17

GUIDE, SPRING UPPER

51175-28C00

2
Out of stock

18

CAP, FORK

51351-28C00

2
Out of stock

19

O RING This part replaces 51117-28C00.

51117-28C01

2
Out of stock

20

RUBBER, CAP

51188-01B20

2
Out of stock

21

TUBE, OUTER

51130-28C20

2
Out of stock

22

METAL, SLIDE This part replaces 51167-28C00.

51167-26E10

2
Out of stock

23

WASHER

51158-05A00

2
Out of stock

24

SEAL, OIL This part replaces 51153-28C00.

51153-27C20

2
Out of stock

25

RING, SNAP

51156-49440

2
Out of stock

26

DUST SEAL

51173-28C00

2
Out of stock

27

HOLDER, AXLE

51132-28C00

1
Out of stock

28

NUT, AXLE HOLDER

08319-31067

4
Out of stock

29

PROTECTOR, RH

51201-05D00

1
Out of stock

30

BOLT, LOWER

01547-06357

1
Out of stock

31

GUIDE, PROTECTOR RH This part replaces 51203-28C00.

51201-27C20

1
Out of stock

32

BOLT This part replaces 01514-05358.

01550-0535B

2
Out of stock

33

PROTECTOR, LH

51211-28C00

1
Out of stock

34

BOLT, LOWER

01547-06357

1
Out of stock

35

GUIDE, PROTECTOR LH This part replaces 51213-28C00.

51211-27C20

1
Out of stock

36

BOLT This part replaces 01514-05358.

01550-0535B

2
Out of stock

37

COVER, HOSE

59248-05D00

1
Out of stock

38

BOLT This part replaces 01107-05108.

01500-0510B

2
Out of stock

39

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock
