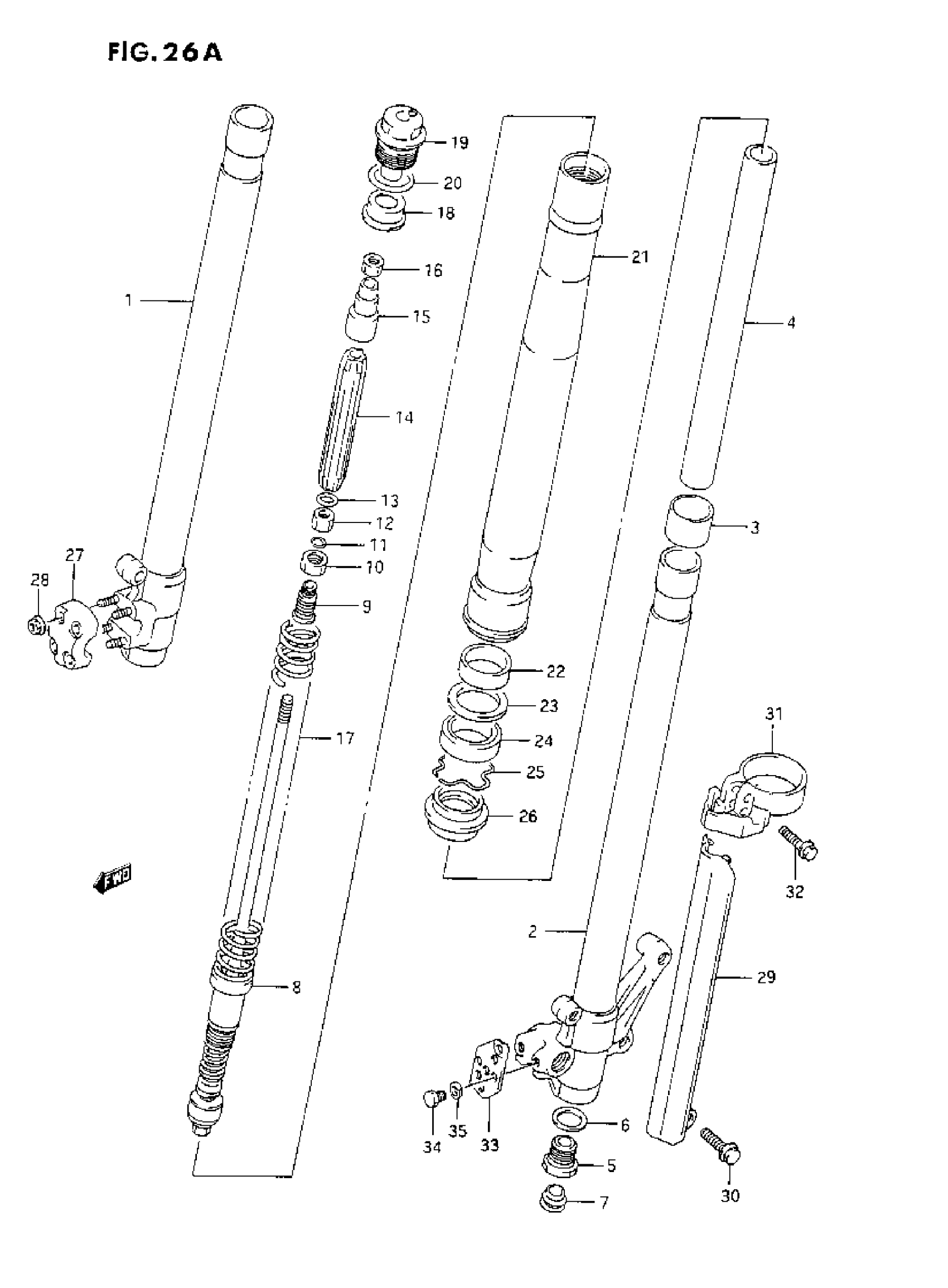

Find the part on the Front Damper diagram for your 1993 Suzuki RMX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki RMX250 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, RH

51103-05D30

1
Out of stock

1

DAMPER ASSY, LH

51104-05D30

1
Out of stock

1

TUBE, INNER RH

51110-27C20

1
Out of stock

2

TUBE, INNER LH

51120-27C20

1
Out of stock

3

.PISTON This part replaces 51121-28C00.

51121-26E10

2
Out of stock

4

CYLINDER

51146-27C20

2
Out of stock

5

VALVE ASSY, BASE

51170-05D30

2
Out of stock

6

GASKET

51148-01B40

2
Out of stock

7

CAP, BASE VALVE

51189-28C00

2
Out of stock

8

ROD ASSY, PISTON

51128-05D30

2
Out of stock

9

PIECE, HOLDER

51812-27C20

2
Out of stock

10

PIECE, OIL LOCK

51811-27C20

2
Out of stock

11

RING, SNAP

51813-27C20

2
Out of stock

12

NUT, PIECE

51814-27C20

2
Out of stock

13

O RING (D:2.4,ID:12.3) This part replaces 51187-28C00.

09280-12008

2
Out of stock

14

GUIDE, SPRING

51172-27C20

2
Out of stock

15

SPACER, GUIDE SPRING

51127-27C20

2
Out of stock

16

NUT, FIXED DRIVE FACE This part replaces 51129-27C20.

09140-12039

2
Out of stock

17

SPRING

51171-05D30

2
Out of stock

18

GUIDE, SPRING WASHER

51175-27C20

2
Out of stock

19

CAP, FORK

51351-27C20

2
Out of stock

20

O RING This part replaces 51117-28C00.

51117-28C01

2
Out of stock

21

TUBE, OUTER

51130-05D30

2
Out of stock

22

METAL, SLIDE This part replaces 51167-28C00.

51167-26E10

2
Out of stock

23

WASHER

51158-05A00

2
Out of stock

24

SEAL, OIL This part replaces 51153-28C00.

51153-27C20

2
Out of stock

25

RING, SNAP

51156-49440

2
Out of stock

26

SEAL, DUST

51173-27C20

2
Out of stock

27

HOLDER, AXLE RH

51132-28C00

1
Out of stock

28

NUT, HOLDER

08319-31067

4
Out of stock

29

PROTECTOR, RH

51201-05D00

1
Out of stock

29

PROTECTOR, LH

51211-28C00

1
Out of stock

30

BOLT, LOWER

01547-06357

2
Out of stock

31

GUIDE, PROTECTOR RH

51201-27C20

1
Out of stock

31

GUIDE, PROTECTOR LH

51211-27C20

1
Out of stock

32

BOLT This part replaces 01514-05358.

01550-0535B

4
Out of stock

33

COVER, HOSE

59248-05D00

1
Out of stock

34

BOLT This part replaces 01107-05108.

01500-0510B

2
Out of stock

35

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock
