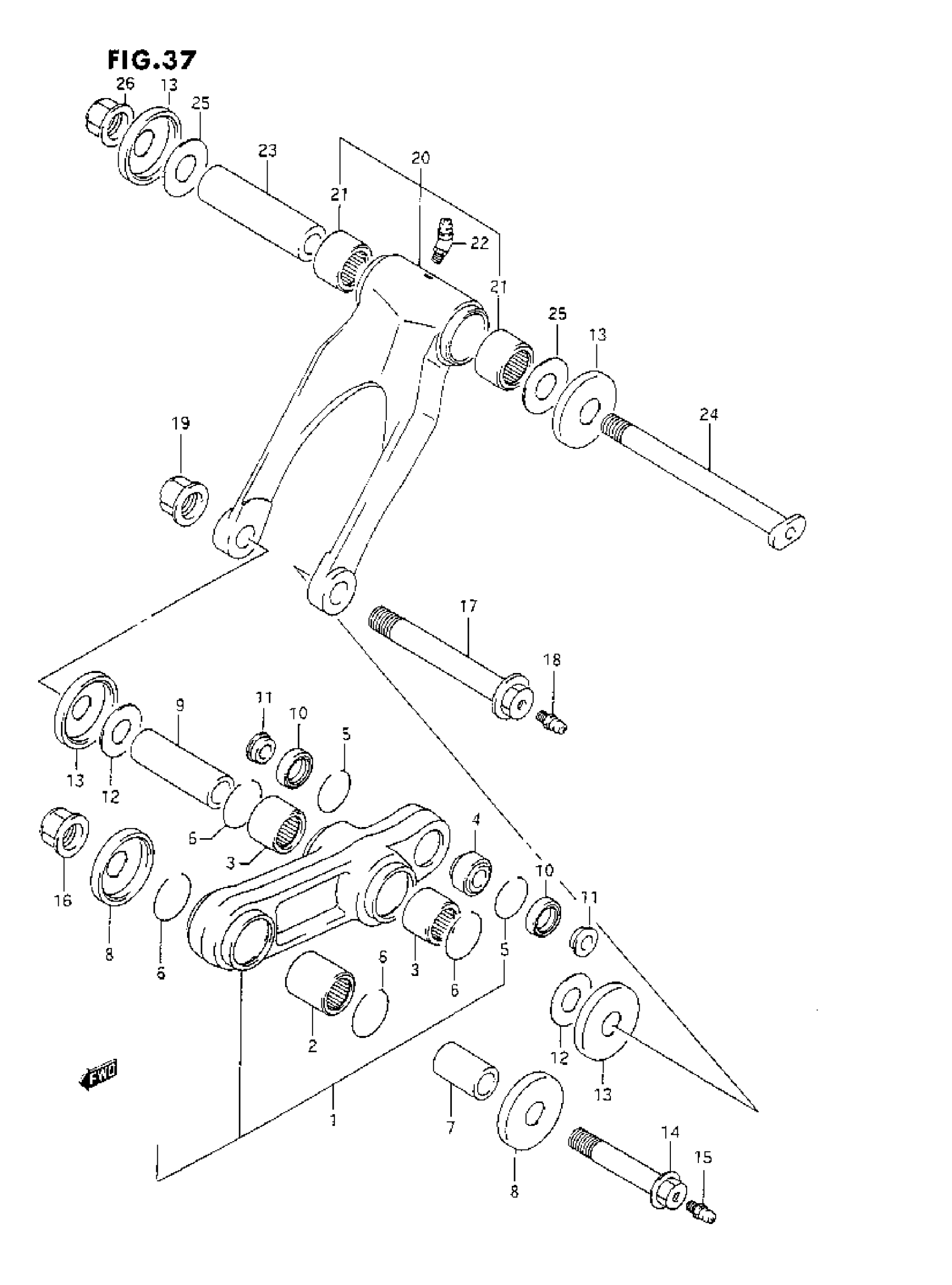

Suzuki RMX250 (1993) CUSHION LEVER (K/L) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | MODEL K This part replaces 62600-28830.

62600-05880

Unavailable

1

LEVER SET, REAR CUSHION | MODEL L

62600-05880

Unavailable

2

BEARING, FRONT

09263-20053

$29.42

3

BEARING, CENTER

09263-20063

Unavailable

4

BEARING, REAR | MODEL K

62175-00B00

$57.58

4

BEARING, REAR (10x24x14.5) | MODEL L This part replaces 62175-27C00.

62175-00B00

$57.58

5

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$2.06

6

RING, STOPPER, FR/CTR

09381-26002

$2.25

7

SPACER, FRONT

62317-05D00

$26.03

8

SEAL, DUST This part replaces 62162-28C01.

62162-28E01

$10.07

9

SPACER, CENTER

62626-05D00

Unavailable

10

.SEAL,OIL (17X24X3) | MODEL K This part replaces 09285-17001.

09285-17007

$3.38

10

DUST SEAL, REAR | MODEL L

62226-28C00

$11.37

11

SPACER, REAR | MODEL K

62684-27C10

Unavailable

11

SPACER, REAR | MODEL L

62684-28C10

$16.77

12

WASHER, CENTER

08211-14322

$4.03

13

SEAL This part replaces 62683-27C00.

62683-27C01

Unavailable

14

BOLT, FRONT This part replaces 62658-05D00.

62650-05D00

Unavailable

15

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.28

16

NUT This part replaces 08319-31128.

08319-3112A

$3.38

17

BOLT, CENTER

62621-05D00

Unavailable

18

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.28

19

NUT This part replaces 08319-31148.

08319-3114A

$8.84

20

ROD SET, CUSHION LEVER

62600-05870

Unavailable

21

BEARING

09263-20063

Unavailable

22

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.07

23

SPACER, ROD

62646-27C00

Unavailable

24

BOLT

62622-27C00

Unavailable

25

WASHER

08211-14322

$4.03

26

NUT This part replaces 08319-31148.

08319-3114A

$8.84
