2023 Suzuki RM85M3 Rear Swingingarm Diagram

← All diagrams

Find the part on the Rear Swingingarm diagram for your 2023 Suzuki RM85M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

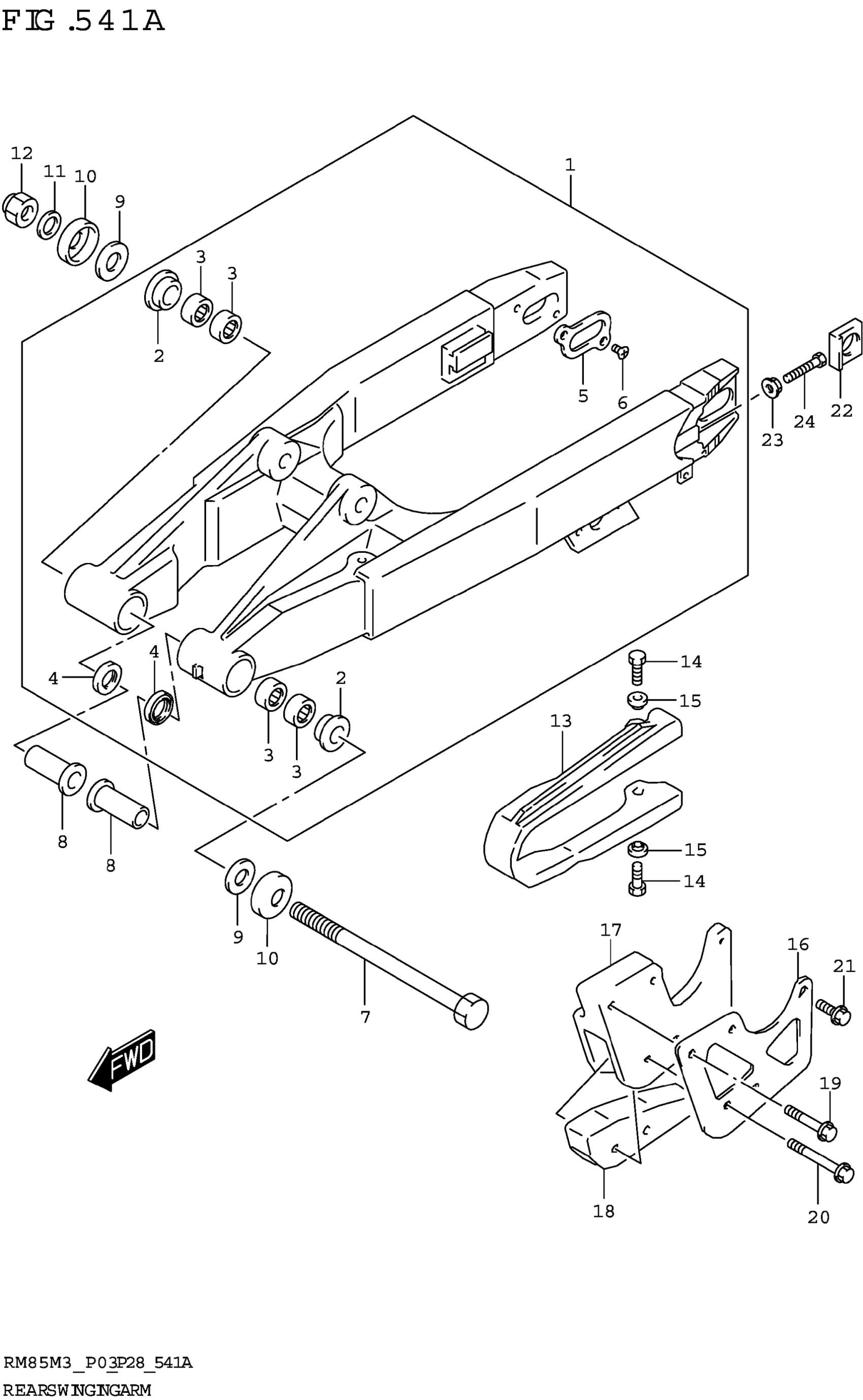

2023 Suzuki RM85M3 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGINGARM ASSY,REAR

61000-03BD1

1
Out of stock

2

.BUSHING,SWGARM PIVOT

61261-02B00

2
Out of stock

3

.BEARING

09263-17058

4
Out of stock

4

.SEAL,OIL (17X24X3)

09285-17007

2
Out of stock

5

.PLATE, SWGARM RR

61128-03BD0

2
Out of stock

6

.SCREW (5X8)

09126-05009

4

$2.48

In stock

7

SHAFT,RR SWGARM PIVOT

61211-02B40

1
Out of stock

8

SPACER,RR SWGARM PIVOT

61251-02B40

2
Out of stock

9

WASHER

08211-12282

2
Out of stock

10

COVER SWGARM PIVOT

61262-03B01

2
Out of stock

11

WASHER

08322-0112B

1
Out of stock

12

NUT

08319-2112A

1
Out of stock

13

BUFFER,CHAIN TOUCH DEFENSE

61273-02B20

1
Out of stock

14

BOLT

01547-0616A

2
Out of stock

15

WASHER

09169-06057

2
Out of stock

16

PLATE, GUIDE CHAIN OUTER

61342-02B40

1
Out of stock

17

GUIDE, CHAIN

61343-02B40

1
Out of stock

18

DEFENSE,CHAIN GUIDE

61348-02B20

1
Out of stock

19

BOLT (6X30)

09103-06251

2
Out of stock

20

BOLT (6X40)

09103-06241

2
Out of stock

21

BOLT

01547-0616A

1
Out of stock

22

WASHER,CHAIN ADJUSTER

61445-03B00

2
Out of stock

23

BOLT (8X43)

09100-08301

2
Out of stock

24

NUT

09159-08034

2

$1.73

In stock
