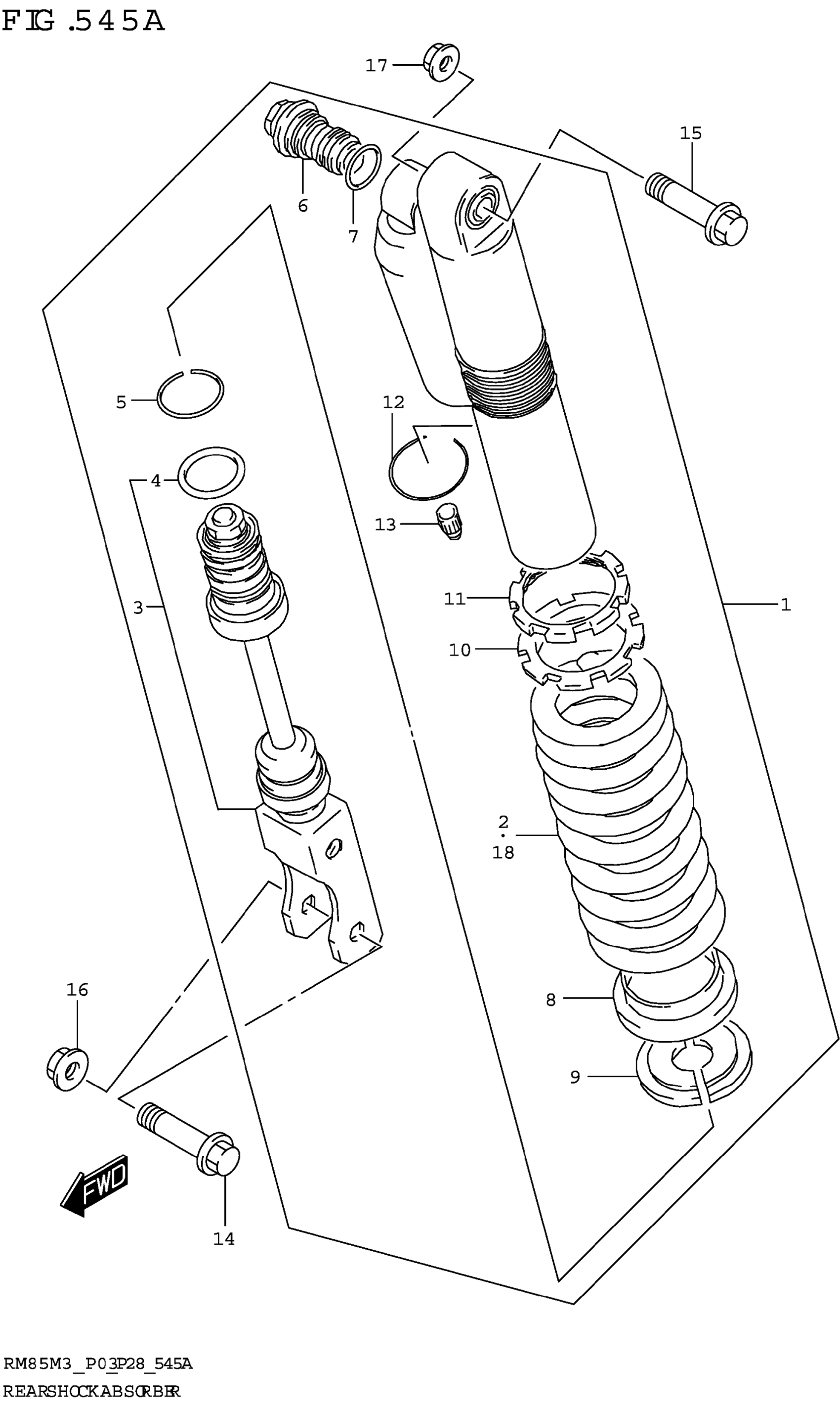

Suzuki RM85M3 (2023) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY,REAR SHOCK (RED

62100-03BK1-YKS

$1,007.45

2

.SPRING,REAR (K=4.8)

62211-03BA0

Unavailable

3

.ROD,PISTON

62120-03BB0

Unavailable

4

..O RING

62153-03BB0

Unavailable

5

.RING,STOPPER

62279-03BB0

Unavailable

6

.BOLT,PLUG

62130-03B30

Unavailable

7

..O RING

51177-36E20

$5.43

8

.SEAT,SPRING

62249-17C00

$33.67

9

.SEAT,SPRING STOPPER

62225-17C00

$36.87

10

.ADJUSTER,SPRING

62191-19C00

Unavailable

11

.NUT,SPRING ADJUSTER

62194-03BB0

Unavailable

12

.RING,STOPPER

62278-03B30

Unavailable

13

.CAP

51294-20400

$8.32

14

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$8.45

15

BOLT,REAR CUSHION ROD,UPPER ( | 0X48)

62648-14500

$4.09

16

NUT

09159-10067

$5.60

17

NUT (M10)

09159-10115

$3.21

18-1

SPRING,REAR (K=4.4)

62211-03B80

Unavailable

18-2

.SPRING,REAR (K=4.8)

62211-03BA0

Unavailable
