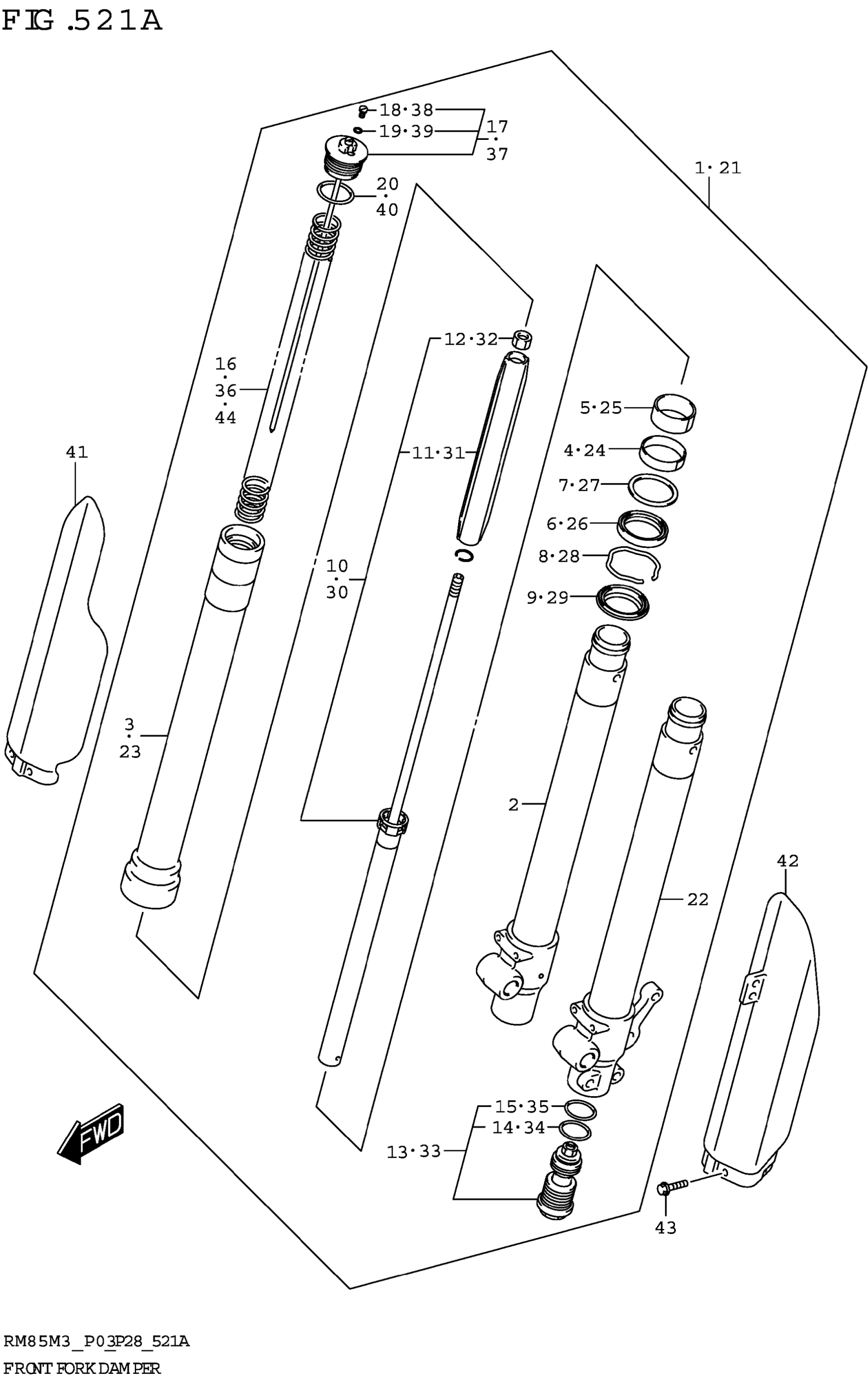

Suzuki RM85M3 (2023) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER FRONT,RH

51103-03B71

$1,337.45

2

.TUBE,INNER RH

51110-03B30

Unavailable

3

.TUBE,OUTER

51130-03B30

$829.96

4

.BUSH,GUIDE

51167-03B30

$23.48

5

.BUSH,SLIDE

51121-03B30

$16.65

6

.SEAL,OIL

51153-03B30

$16.95

7

.SPACER,SEAL

51168-38A00

$6.32

8

.RING,STOPPER

51156-03B30

$6.95

9

.SEAL,DUST

51173-03B30

$32.85

10

.CYLINDER

51190-03B70

Unavailable

11

..GUIDE,SPRING

51172-03B30

$33.12

12

..NUT

51129-03B30

Unavailable

13

.BOLT,CENTER

51170-03B70

Unavailable

14

..O RING

51177-36E20

$5.43

15

..O RING

51175-03B30

$6.83

16

.SPRING,FRONT (K=0.28)

51171-03B50

Unavailable

17

.BOLT,FORK

51351-03B70

$194.00

18

..BOLT,PLUG

51357-27C40

$11.80

19

..O RING

51117-19C10

$4.62

20

.O RING

51117-37F80

$7.83

21

DAMPER FRONT,LH

51104-03B71

$1,337.45

22

.TUBE,INNER LH

51120-03B70

Unavailable

23

.TUBE,OUTER

51130-03B30

$829.96

24

.BUSH,GUIDE

51167-03B30

$23.48

25

.BUSH,SLIDE

51121-03B30

$16.65

26

.SEAL,OIL

51153-03B30

$16.95

27

.SPACER,SEAL

51168-38A00

$6.32

28

.RING,STOPPER

51156-03B30

$6.95

29

.SEAL,DUST

51173-03B30

$32.85

30

.CYLINDER

51190-03B70

Unavailable

31

..GUIDE,SPRING

51172-03B30

$33.12

32

..NUT

51129-03B30

Unavailable

33

.BOLT,CENTER

51170-03B70

Unavailable

34

..O RING

51177-36E20

$5.43

35

..O RING

51175-03B30

$6.83

36

.SPRING,FRONT (K=0.28)

51171-03B50

Unavailable

37

.BOLT,FORK

51351-03B70

$194.00

38

..BOLT,PLUG

51357-27C40

$11.80

39

..O RING

51117-19C10

$4.62

40

.O RING

51117-37F80

$7.83

41

PROTECTOR, FRONT FORK, RH

51501-03B20

$92.93

42

PROTECTOR, FRONT FORK, LH

51511-03B30

$92.93

43

BOLT

01547-0610A

$1.47

44-1

SPRING,FRONT (K=0.26)

51171-03B30

Unavailable

44-2

SPRING,FRONT (K=0.30)

51171-03B60

Unavailable
