2015 Suzuki RM85L5 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2015 Suzuki RM85L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

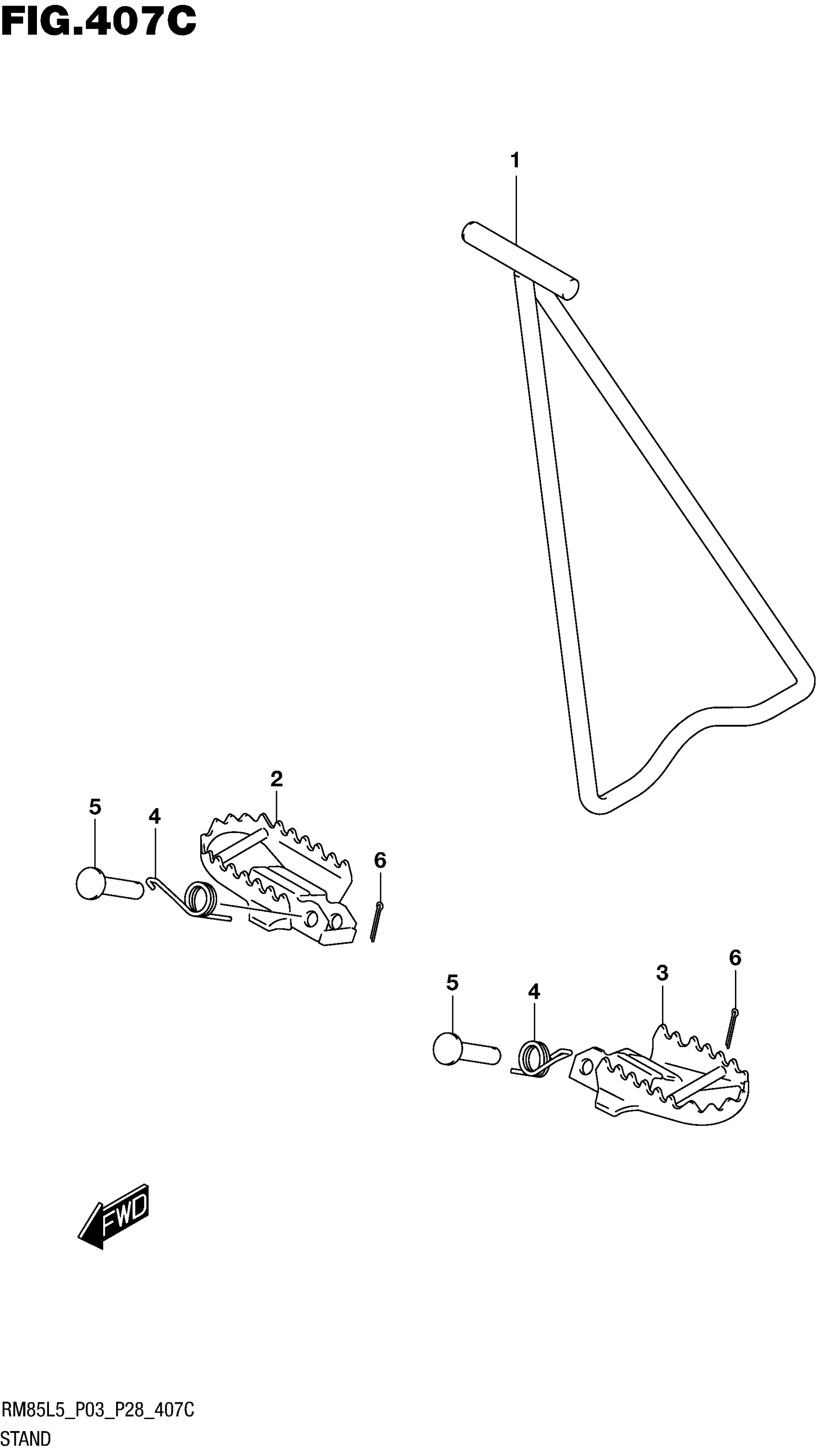

2015 Suzuki RM85L5 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-03B20

1
Out of stock

2

FOOTREST, FRONT RH

43551-14D21

1
Out of stock

3

FOOTREST, FRONT LH

43561-14D21

1
Out of stock

4

SPRING

09448-16032

2
Out of stock

5

PIN

09200-10013

2
Out of stock

6

PIN

09204-01002

2
Out of stock
