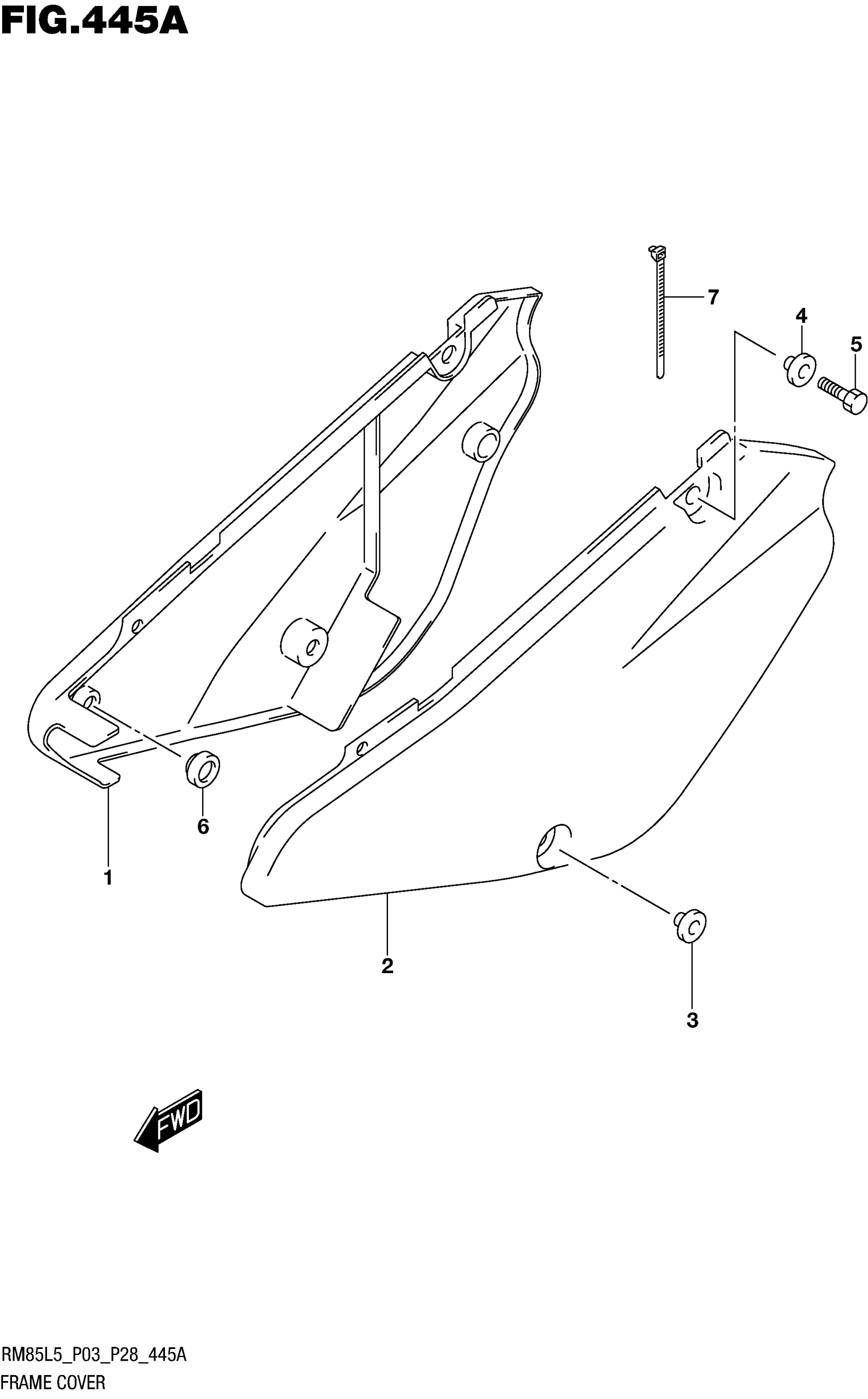

Suzuki RM85L5 (2015) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE)

47111-03B70-30H

$82.82

2

COVER, FRAME LH (WHITE)

47211-03B70-30H

$84.37

3

WASHER

09169-06010

$2.71

4

WASHER (6.5X20X1.6)

09160-06066

$1.97

5

BOLT (6X16)

01547-0616A

$2.09

6

CUSHION

09321-10024

$4.55

7

CLAMP (L:150)

09407-15401

$2.92
