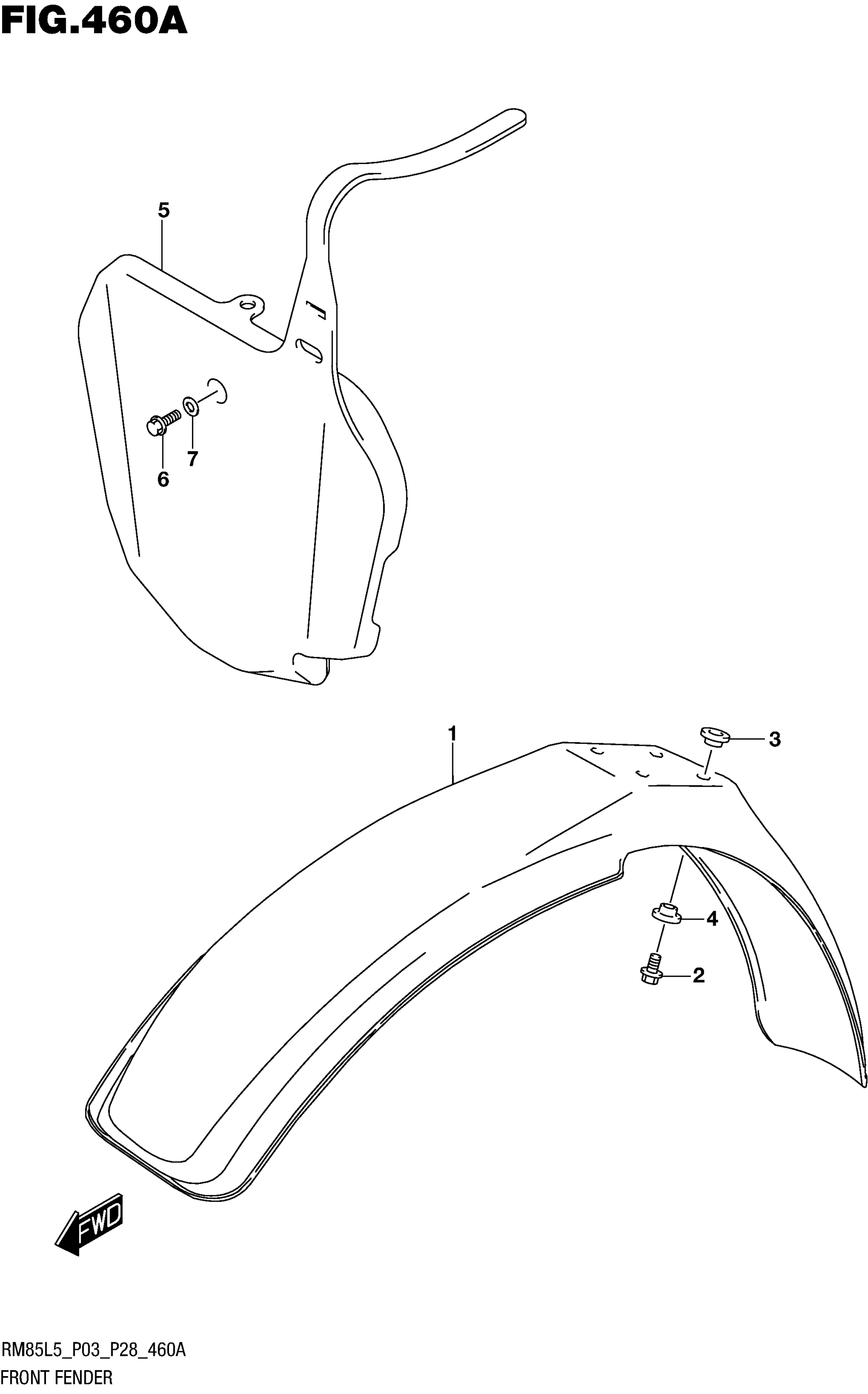

Suzuki RM85L5 (2015) FRONT FENDER Diagram

#

Description

Price

1

FENDER, FRONT (YELLOW)

53111-03B01-YU1

$54.52

2

BOLT

01547-06207

$2.09

3

WASHER

09169-06080

$4.65

4

WASHER (6.3X16X1)

09169-06053

$1.15

5

PLATE, NUMBER FRONT (WHITE)

94911-03B00-30H

$74.98

6

BOLT

01547-06207

$2.09

7

WASHER (6.5X14X1.6)

09160-06125

$1.97
