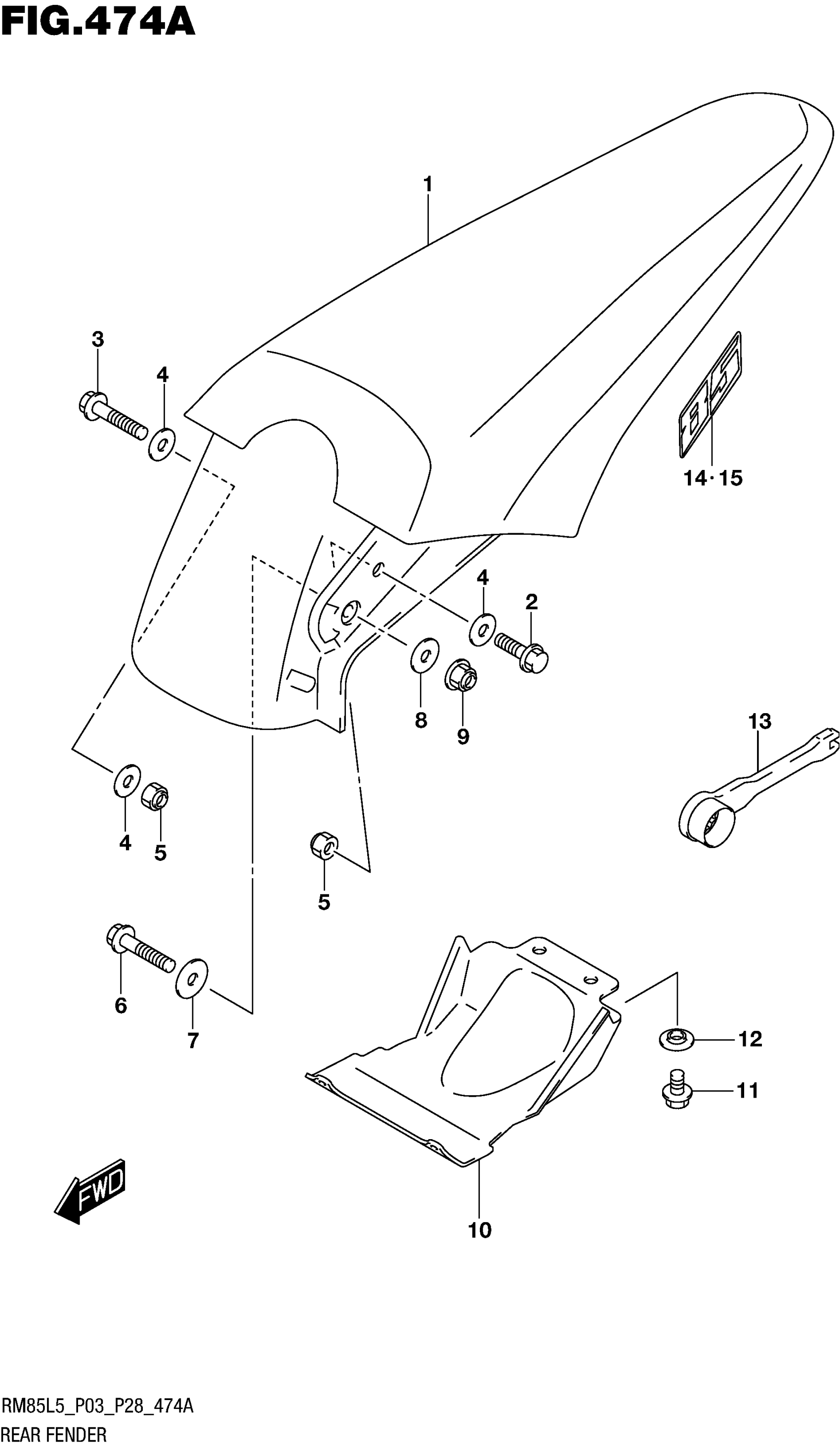

Suzuki RM85L5 (2015) REAR FENDER (RM85L5 P03) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-03B60-YU1

$41.28

2

BOLT | LH

01547-06207

$2.01

3

BOLT (6X30) | RH

09103-06251

$2.12

4

WASHER (6.5X20X1.2)

09160-06077

$1.89

5

NUT

08319-2106A

$1.89

6

BOLT (6X30)

09103-06251

$2.12

7

WASHER (6.5X26X2.3)

09160-06135

$2.15

8

WASHER This part replaces 09160-06132.

09160-06084

$1.77

9

NUT

08319-3106B

$2.47

10

MUDGUARD, REAR FENDER FRONT

63351-03B00

$39.35

11

BOLT

01547-0610B

$2.47

12

WASHER

09169-06010

$2.61

13

BOX SPANNER (21 & 5.8)

09816-00182

Unavailable

14

EMBLEM, RH

68175-03B50-GY8

$18.93

15

EMBLEM, LH

68176-03B50-GY8

$18.93
