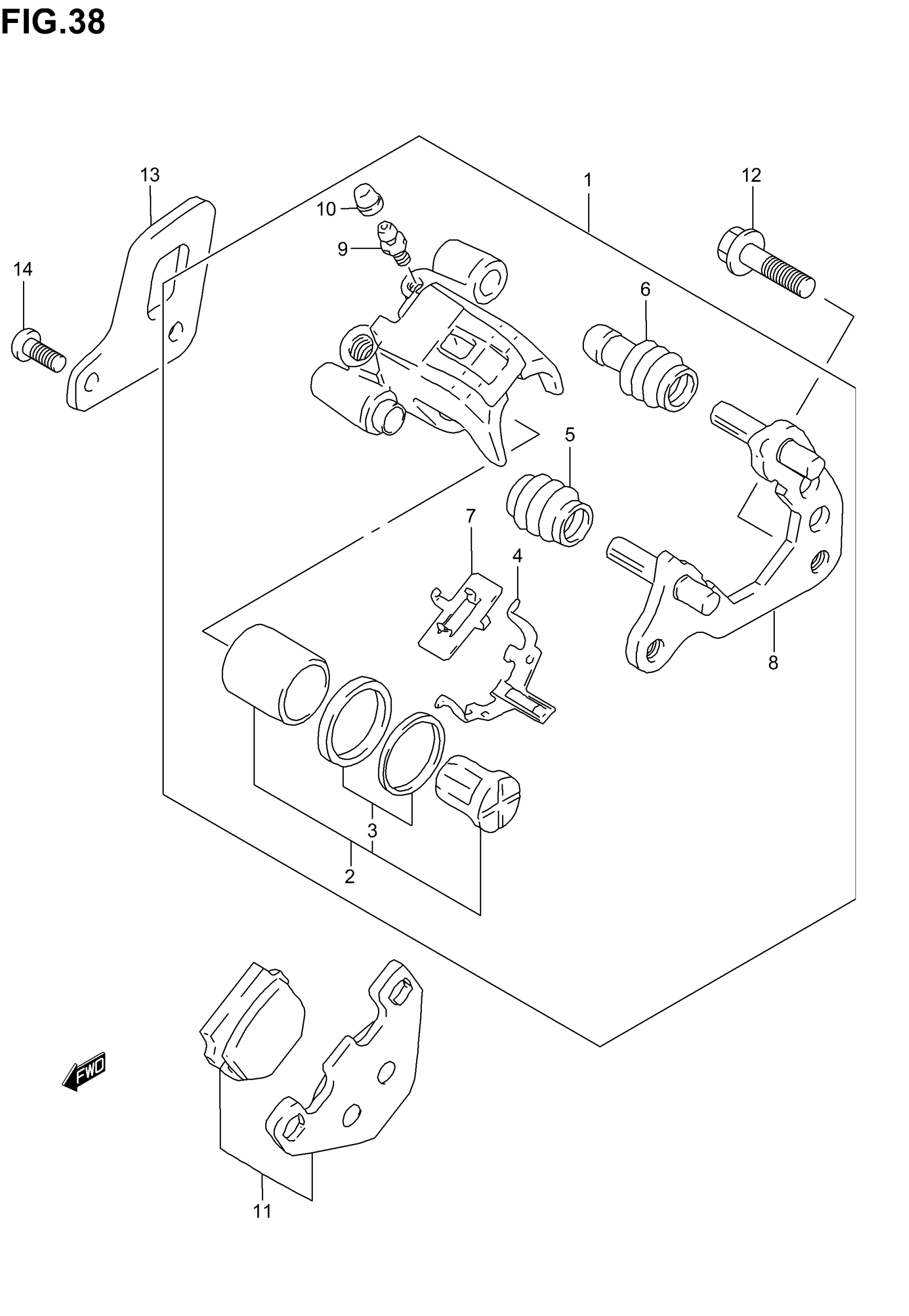

Suzuki RM85 (2006) REAR CALIPER (MODEL K2/K3/K4) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 10

69100-02B44-999

$254.03

2

PISTON SET

69100-02811

$39.45

3

SEAL SET, PISTON

59100-04841

$10.87

4

SPRING

59315-36500

$8.83

5

.BOOT, AXLE

59312-36500

$4.78

6

.INSULATOR, AXLE

59313-36500

$5.48

7

SHIM

69133-02B40

$13.65

8

BRACKET

69150-02B41

Unavailable

9

BLEEDER

59121-18410

$7.99

10

CAP, BLEEDER This part replaces 59122-02B40.

55156-66310

$4.73

11

PAD SET

69100-02822

$55.20

12

BOLT (8X18)

09103-08171

$3.98

13

GUARD, CALIPER

69725-02B40

Unavailable

14

SCREW (6X12)

09139-06027

$2.00
