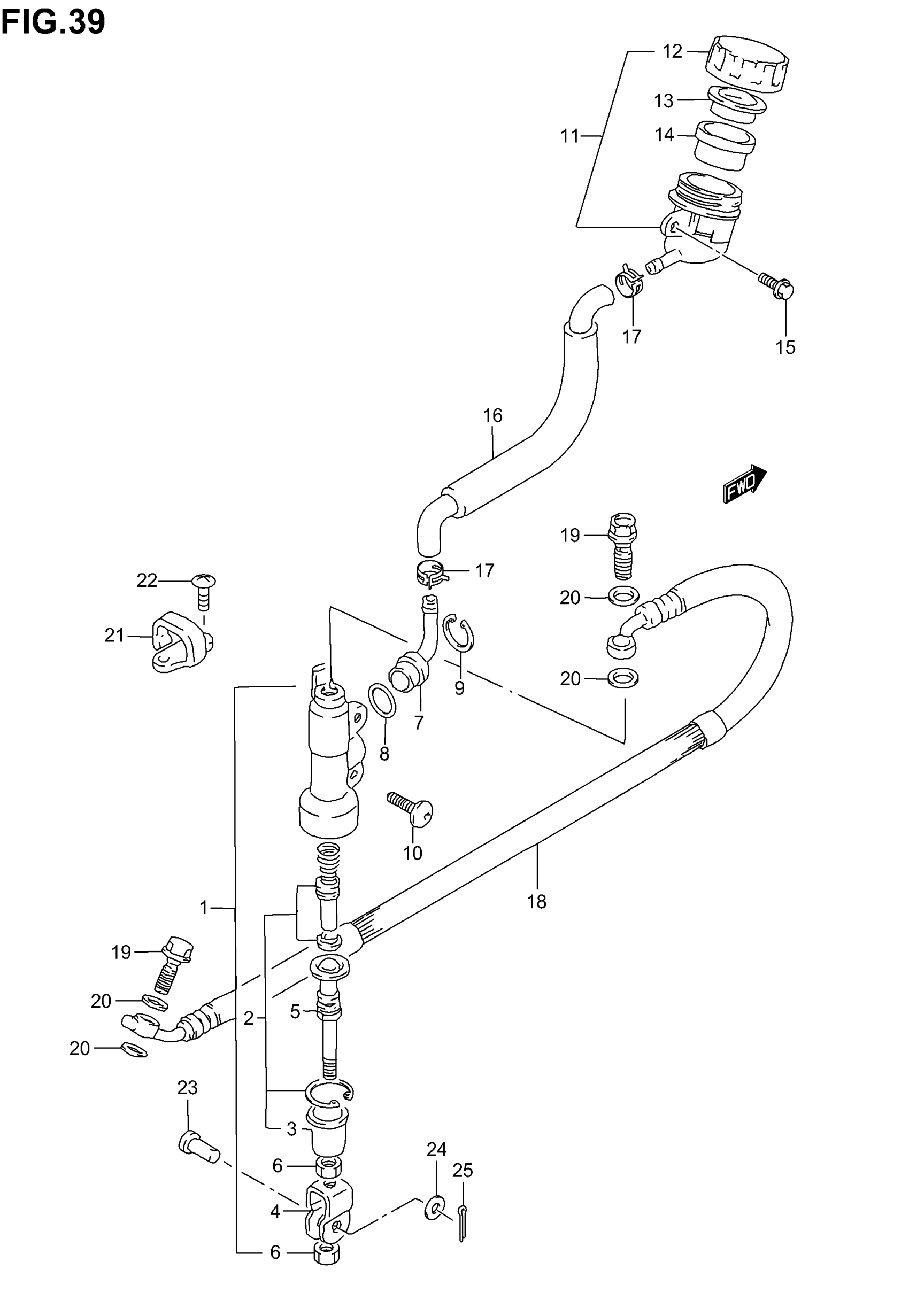

Suzuki RM85 (2006) REAR MASTER CYLINDER (MODEL K2/K3/K4) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-02B40

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$29.55

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-00B21

$19.22

5

ROD, PUSH

69670-27A30

$29.60

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-00B20

$6.42

8

O RING

69686-34200

$2.80

9

CIRCLIP

69674-00B20

$3.73

10

SCREW (6X16)

09139-06030

$3.33

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 14

69740-03D10

$85.27

12

CAP

69669-03D10

$25.55

13

PLATE

69668-00B20

$8.65

14

DIAPHRAGM

69667-00B20

$20.82

15

BOLT

09103-06233

$2.18

16

HOSE, RESERVOIR TANK

69731-02B50

$40.73

17

CLAMP

69735-00B20

$5.43

18

HOSE, REAR BRAKE | RM85K2/K3/K4

69480-02B41

Unavailable

18

HOSE, REAR BRAKE | RM85LK3/LK4

69480-03B50

Unavailable

19

UNION This part replaces 09360-10039.

09360-10061

$5.89

20

WASHER (10X15X1.5)

09161-10009

$1.83

21

CLAMP, REAR BRAKE HOSE

61196-00B21

$6.39

22

SCREW This part replaces 02142-05103.

02142-0510B

$1.77

23

PIN

09200-08048

$2.80

24

WASHER This part replaces 09160-08119.

09160-08090

$2.38

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22
