2006 Suzuki RM85 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2006 Suzuki RM85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

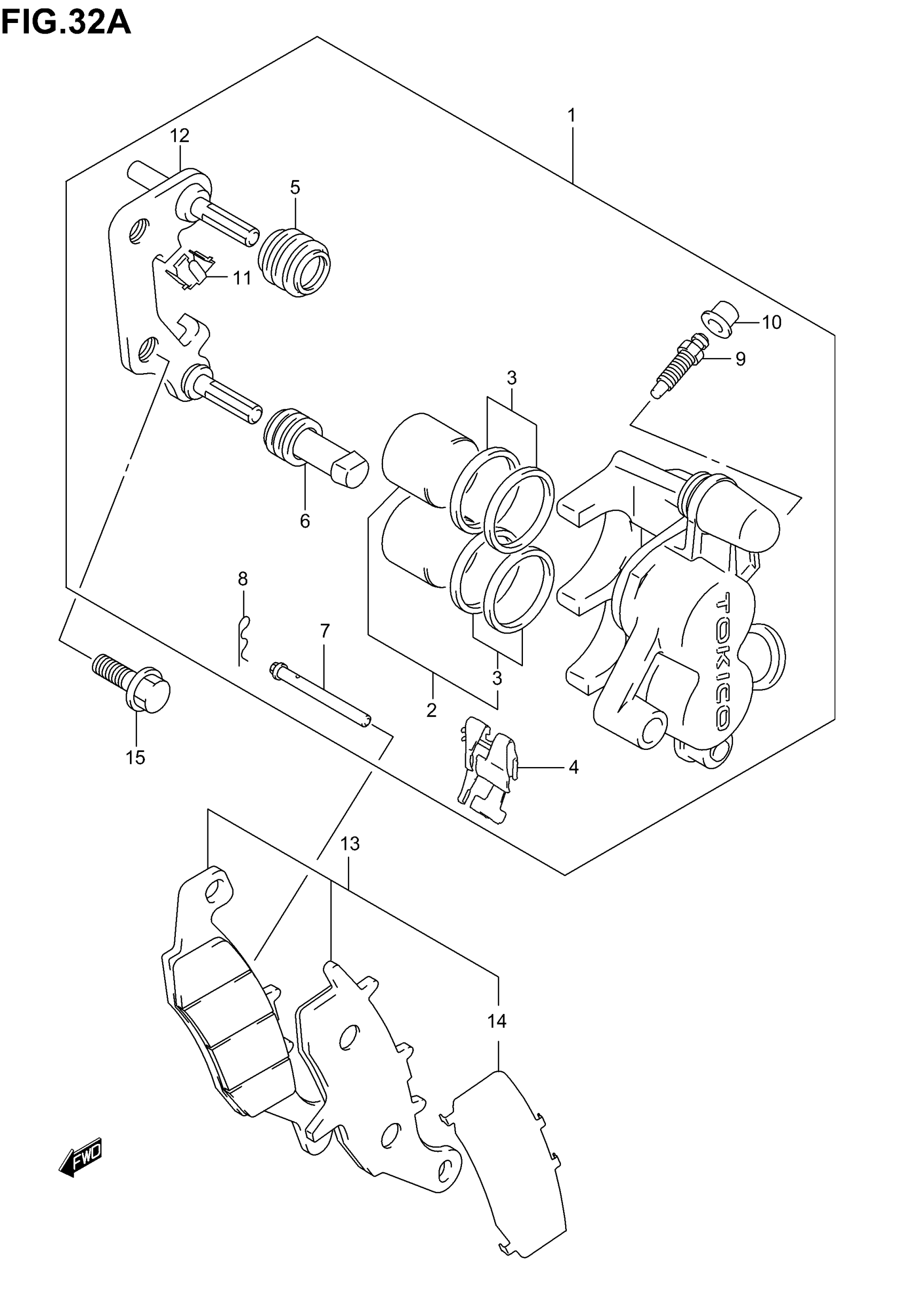

2006 Suzuki RM85 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 12

59300-03B20-999

1
Out of stock

2

PISTON SET

59301-03810

1
Out of stock

3

SEAL SET

59300-40810

1
Out of stock

4

.SPRING, PAD

59315-20E00

1
Out of stock

5

.BOOT, AXLE

59312-36500

1
Out of stock

6

.INSULATOR, AXLE

59313-36500

1
Out of stock

7

PIN

69141-03B00

1
Out of stock

8

.CLIP, PAD PIN

69142-45000

1
Out of stock

9

BLEEDER

59121-03B00

1
Out of stock

10

CAP, BLEEDER This part replaces 59122-02B40.

55156-66310

1
Out of stock

11

.GUIDE, PAD

59116-20E00

1
Out of stock

12

CARRIER, LH

59350-03B00

1
Out of stock

13

PAD & SHIM SET | Includes Item(s) 14

59301-03820

1
Out of stock

14

SHIM

59371-03B00

1
Out of stock

15

BOLT

09103-08377

2
Out of stock
