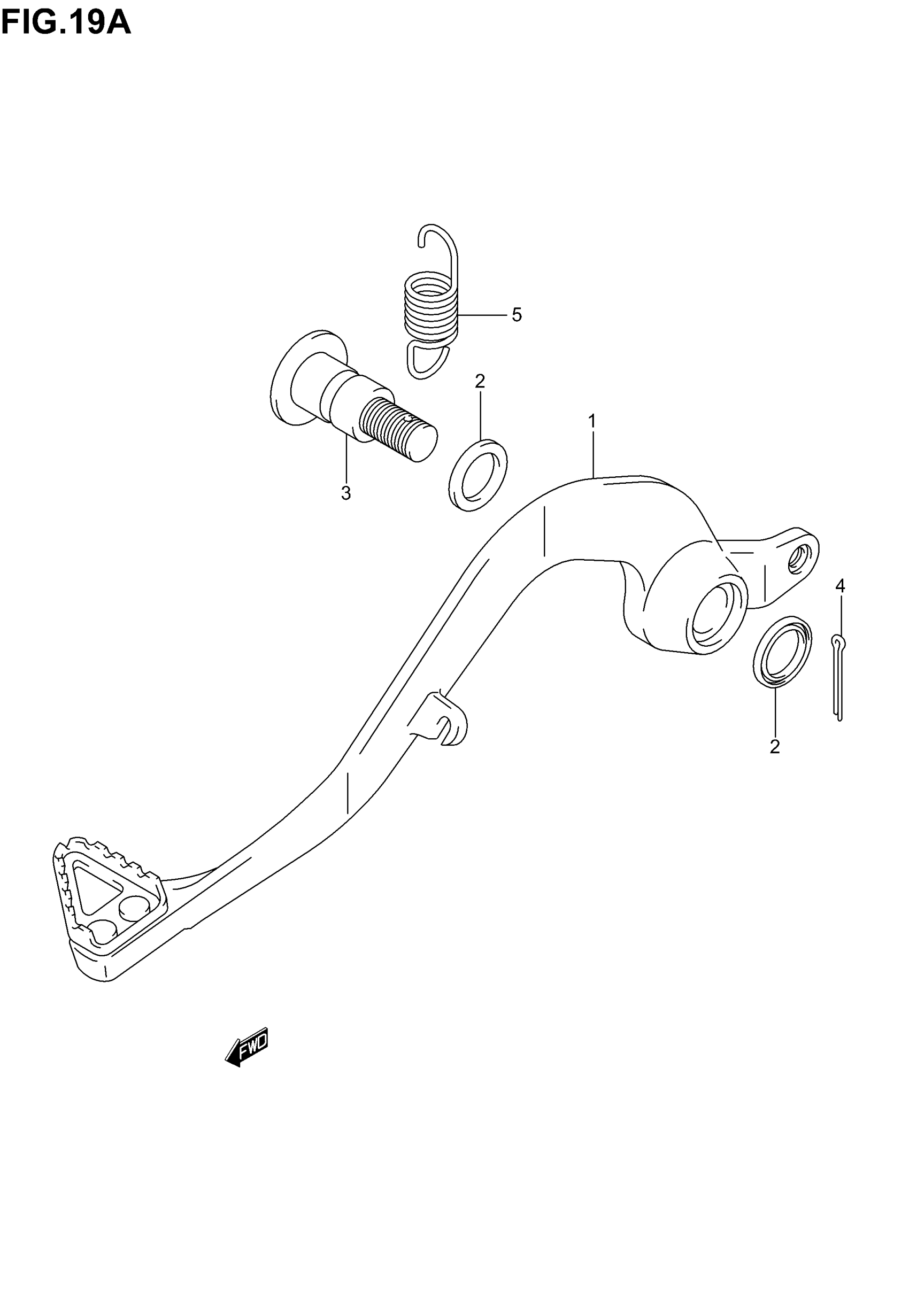

Suzuki RM85 (2006) REAR BRAKE (MODEL K5/K6) Diagram

#

Description

Price

1

PEDAL ASSY, BRAKE | Includes Item(s) 2

43100-03B10

$254.98

2

DUST SEAL

09284-15006

$3.21

3

SHAFT, BRAKE PEDAL

43142-37F00

$21.41

4

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

5

SPRING

09443-13024

$4.12
