2006 Suzuki RM85 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 2006 Suzuki RM85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

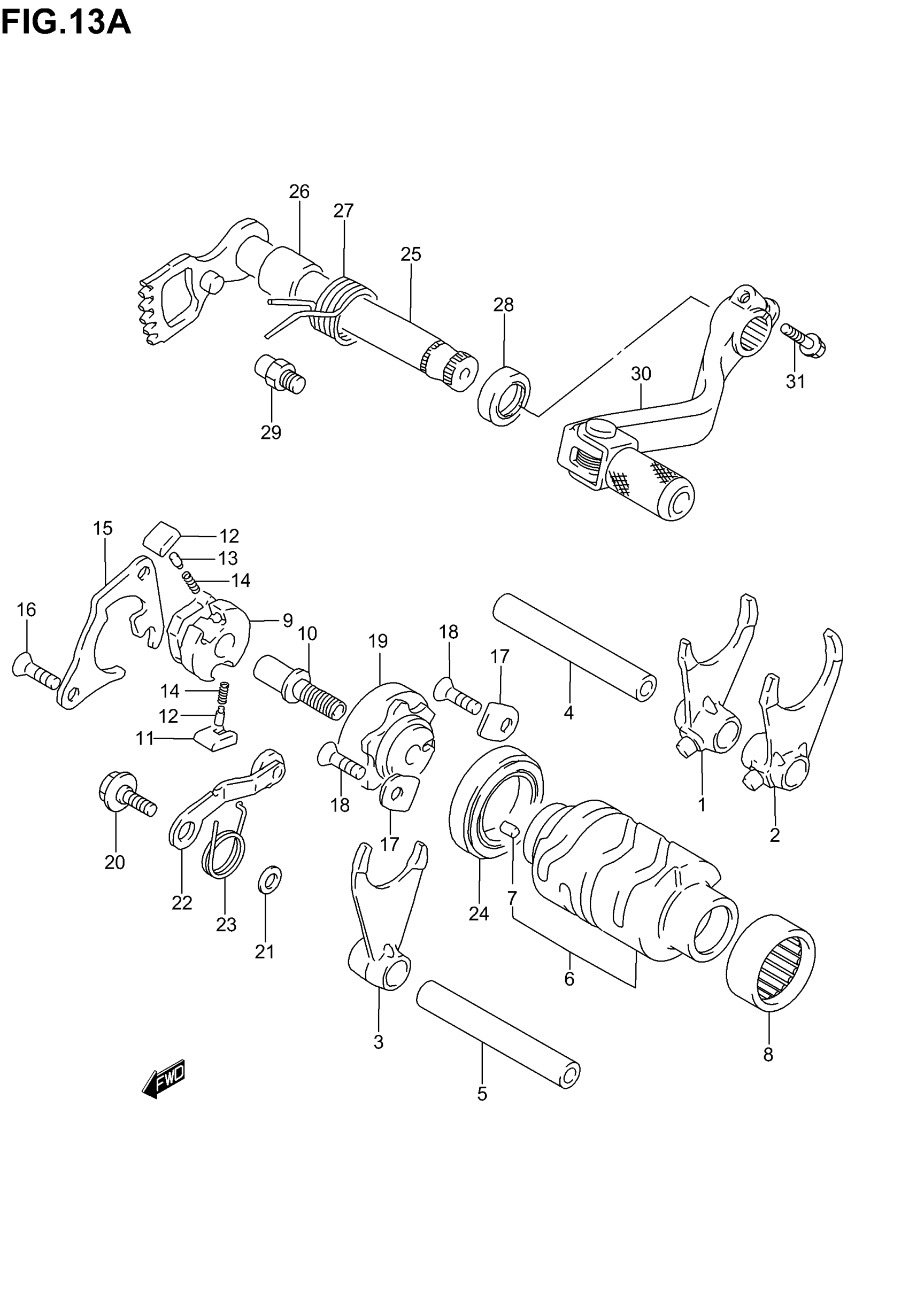

2006 Suzuki RM85 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, NO.1

25211-02B41

1
Out of stock

2

FORK, NO.2

25221-02B41

1
Out of stock

3

FORK, NO.3

25231-02B40

1
Out of stock

4

SHAFT, NO.1 (L:90)

25411-02B41

1
Out of stock

5

SHAFT, NO.2 (L:60)

25421-27C01

1
Out of stock

6

CAM | Includes Item(s) 7

25310-03B10

1
Out of stock

7

PIN (4X13.8)

04221-04089

1
Out of stock

8

BEARING, GEAR SHIFT, LH | 25X32X12

09263-25018

1
Out of stock

9

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

1
Out of stock

10

PIN, SHIFT CAM DRIVEN GEAR

25313-27C02

1
Out of stock

11

PAWL, GEAR SHIFT NO.1

25323-34201

1
Out of stock

12

PAWL, GEAR SHIFT NO.2

25324-34201

1
Out of stock

13

PIN (5X8)

09209-05023

2
Out of stock

14

SPRING

09440-04003

2
Out of stock

15

LIFTER, PAWL

25331-27C00

1
Out of stock

16

SCREW (6X12)

09126-06011

2
Out of stock

17

RETAINER

24741-20A00

2
Out of stock

18

SCREW (6X12)

09126-06011

2
Out of stock

19

PLATE, STOPPER

25381-37F30

1
Out of stock

20

BOLT, SHIFT CAM STOPPER

09111-06041

1
Out of stock

21

WASHER

08211-06121

1
Out of stock

22

STOPPER, CAM

25350-27C30

1
Out of stock

23

SPRING

25355-03B00

1
Out of stock

24

BEARING, RH

08140-69050

1
Out of stock

25

SHAFT, GEAR SHIFTING

25510-28C30

1
Out of stock

26

SPACER (14X20X17.5)

09180-14016

1
Out of stock

27

SPRING

09444-26013

1
Out of stock

28

OIL SEAL (14X22X6)

09283-14006

1
Out of stock

29

STOPPER, ARM

25671-01011

1
Out of stock

30

LEVER, GEAR SHIFTING

25600-03B10

1
Out of stock

31

BOLT This part replaces 09103-06235.

01547-06207

1
Out of stock
