Description

Price

1

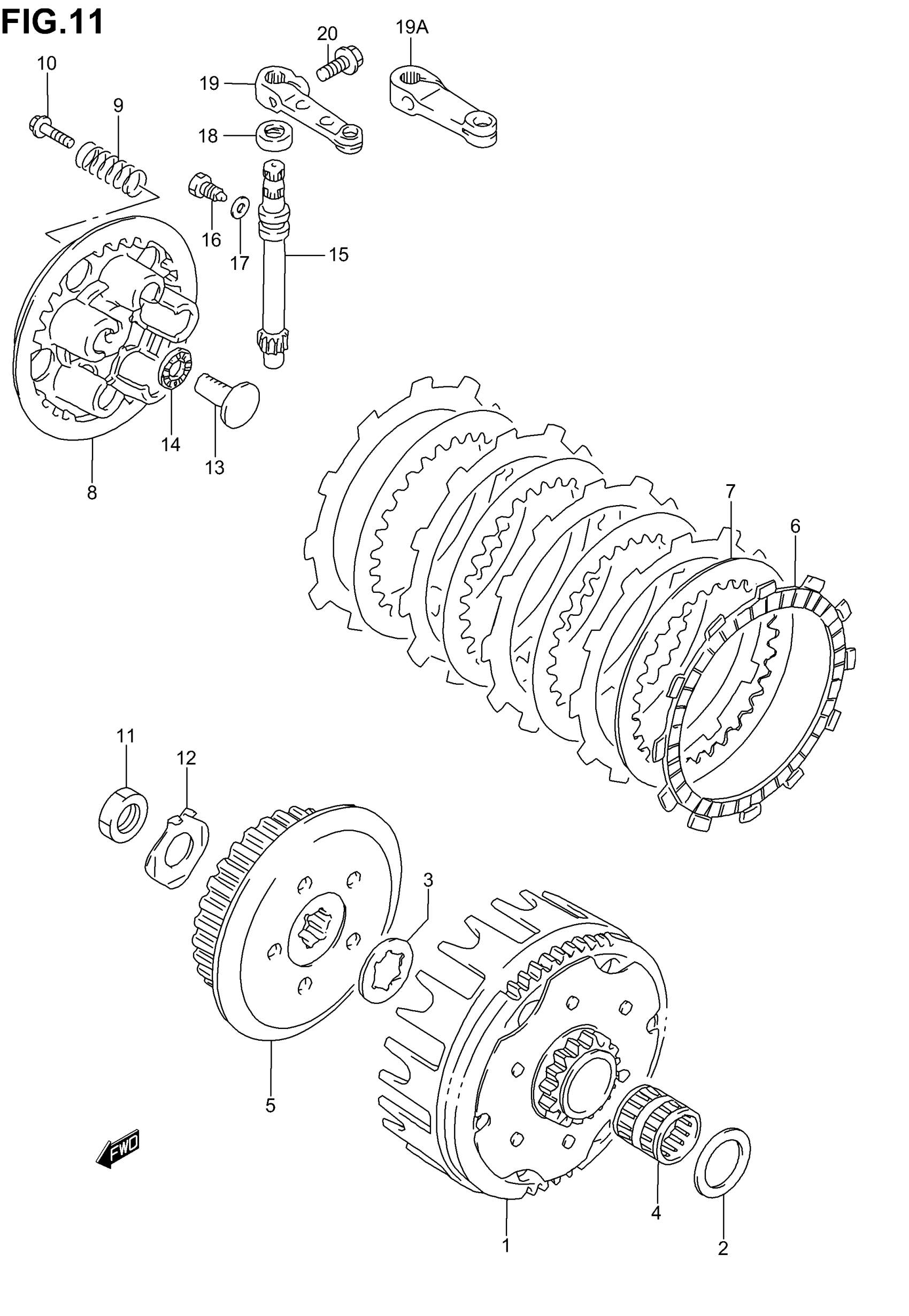

GEAR ASSY, PRIMARY DRIVEN | NT:62/16

21200-02B41

$293.55

2

WASHER (20X32X1.0)

09181-20223

$2.80

3

WASHER (20.1X30X2.0)

09167-20024

$3.90

4

BEARING (20X25X26)

09263-20023

$18.29

5

HUB, SLEEVE | MODEL K2/K3/K4 This part replaces 21410-01B00.

21410-01B01

$64.52

5

HUB, SLEEVE | MODEL K5/K6

21410-01B01

$64.52

6

PLATE, DRIVE (T:3)

21441-13A01

$13.49

7

PLATE, DRIVEN (T:2)

21451-36200

$7.14

8

DISC, PRESSURE This part replaces 21462-02B40.

21462-02B41

$32.67

9

SPRING

09440-16017

$4.27

10

BOLT (5X16) | MODEL K2/K3/K4

09116-05020

$2.06

10

BOLT (5X20) | MODEL K5/K6

09116-05021

$2.27

11

NUT

09140-16027

$7.28

12

LOCK WASHER

09169-16005

$2.17

13

RACK,CLUTCH RELEASE

23165-44B01

$28.13

14

THRUST BEARING (10.1X22X2.8)

09263-10002

$9.20

15

PINION,CLUTCH RELEASE

23261-20A01

$59.80

16

BOLT (6X10) This part replaces 09135-06013.

09135-06501

$2.80

17

WASHER (6.2X11X1.2)

09168-06004

$1.43

18

OIL SEAL (10X17X5)

09285-10004

$3.04

19

ARM, CLUTCH RELEASE | MODEL K2 This part replaces 23271-20901.

23271-20902

$27.09

19A

ARM, RELEASE | MODEL K3/K4/K5/K6
