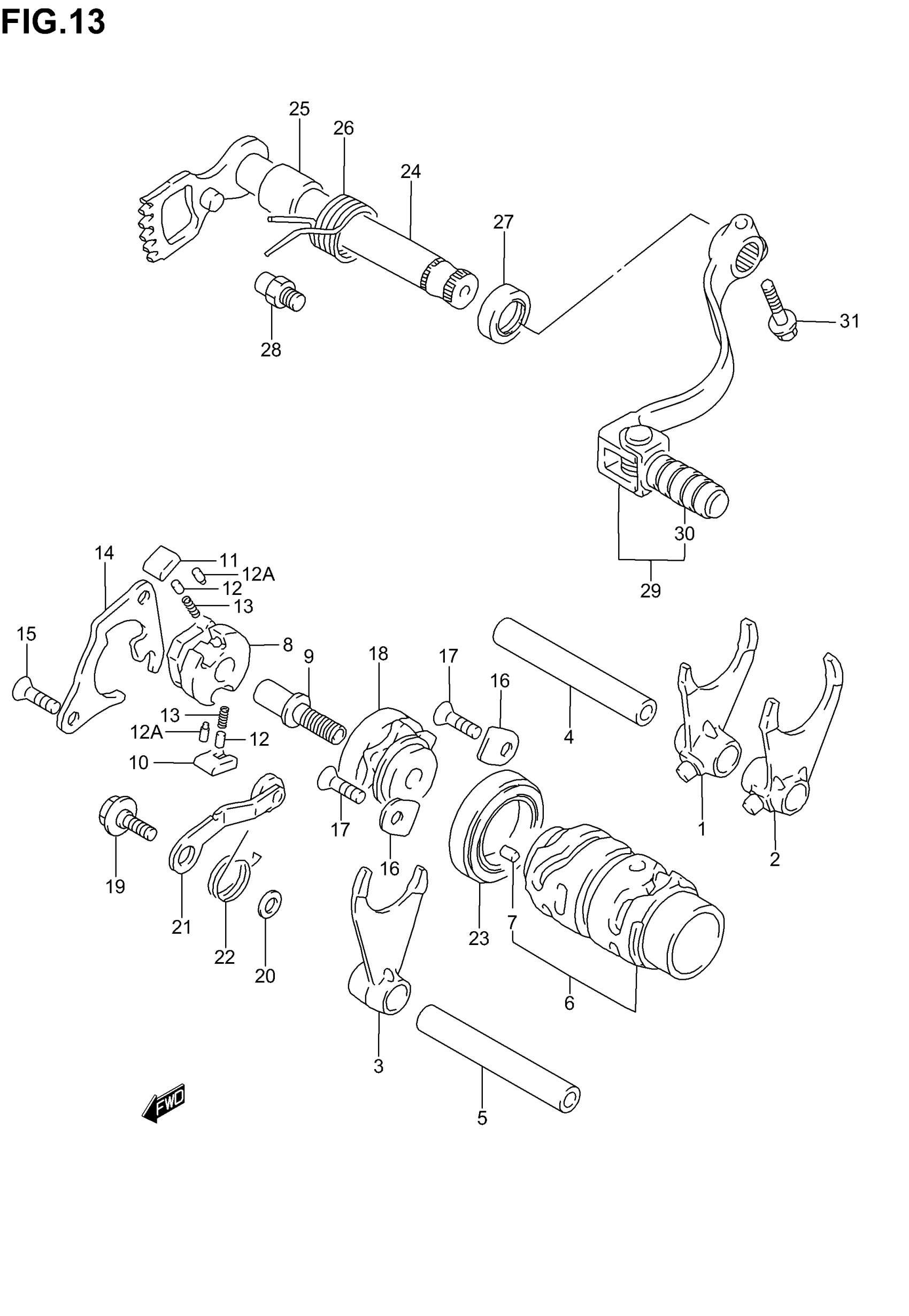

Suzuki RM85 (2006) GEAR SHIFTING (MODEL K2/K3/K4) Diagram

#

Description
Price

1

FORK, NO.1

25211-02B41

$71.03

2

FORK, NO.2

25221-02B41

$71.03

3

FORK, NO.3

25231-02B40

$66.48

4

SHAFT, NO.1 (L:90)

25411-02B41

Unavailable

5

SHAFT, NO.2 (L:60)

25421-27C01

$20.82

6

CAM | Includes Item(s) 7

25310-03B00

Unavailable

7

PIN (4X13.8)

04221-04089

$1.10

8

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$30.40

9

PIN, SHIFT CAM DRIVEN GEAR

25313-27C02

$14.73

10

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

11

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

12

PIN (5X8) | MODEL K2

09261-05003

$1.69

12A

PIN, SHIFT PAWL | MODEL K3/K4

09209-05023

$2.73

13

SPRING

09440-04003

$1.48

14

LIFTER, PAWL

25331-27C00

$27.32

15

SCREW This part replaces 02122-06123.

02122-0612A

$1.43

16

RETAINER

24741-20A00

$2.80

17

SCREW This part replaces 02122-06123.

02122-0612A

$1.43

18

PLATE, STOPPER

25381-28C20

Unavailable

19

BOLT, SHIFT CAM STOPPER

09111-06041

$2.63

20

WASHER

08211-06121

$1.56

21

STOPPER, CAM

25350-27C30

$18.03

22

SPRING

09448-18020

Unavailable

23

BEARING, RH

08140-69050

$32.18

24

SHAFT, GEAR SHIFTING

25510-28C30

$108.60

25

SPACER (14X20X17.5)

09180-14016

$3.57

26

SPRING

09444-26013

$2.84

27

OIL SEAL (14X22X6)

09283-14006

$6.04

28

STOPPER, ARM

25671-01011

$4.09

29

LEVER, GEAR SHIFTING | Includes Item(s) 30 This part replaces 25600-03B00.

25600-03B10

$120.40

30

RUBBER,GEAR SHI This part replaces 25652-27C00.

25652-27C01

$25.80

31

BOLT This part replaces 09103-06235.

01547-06207

$2.01
