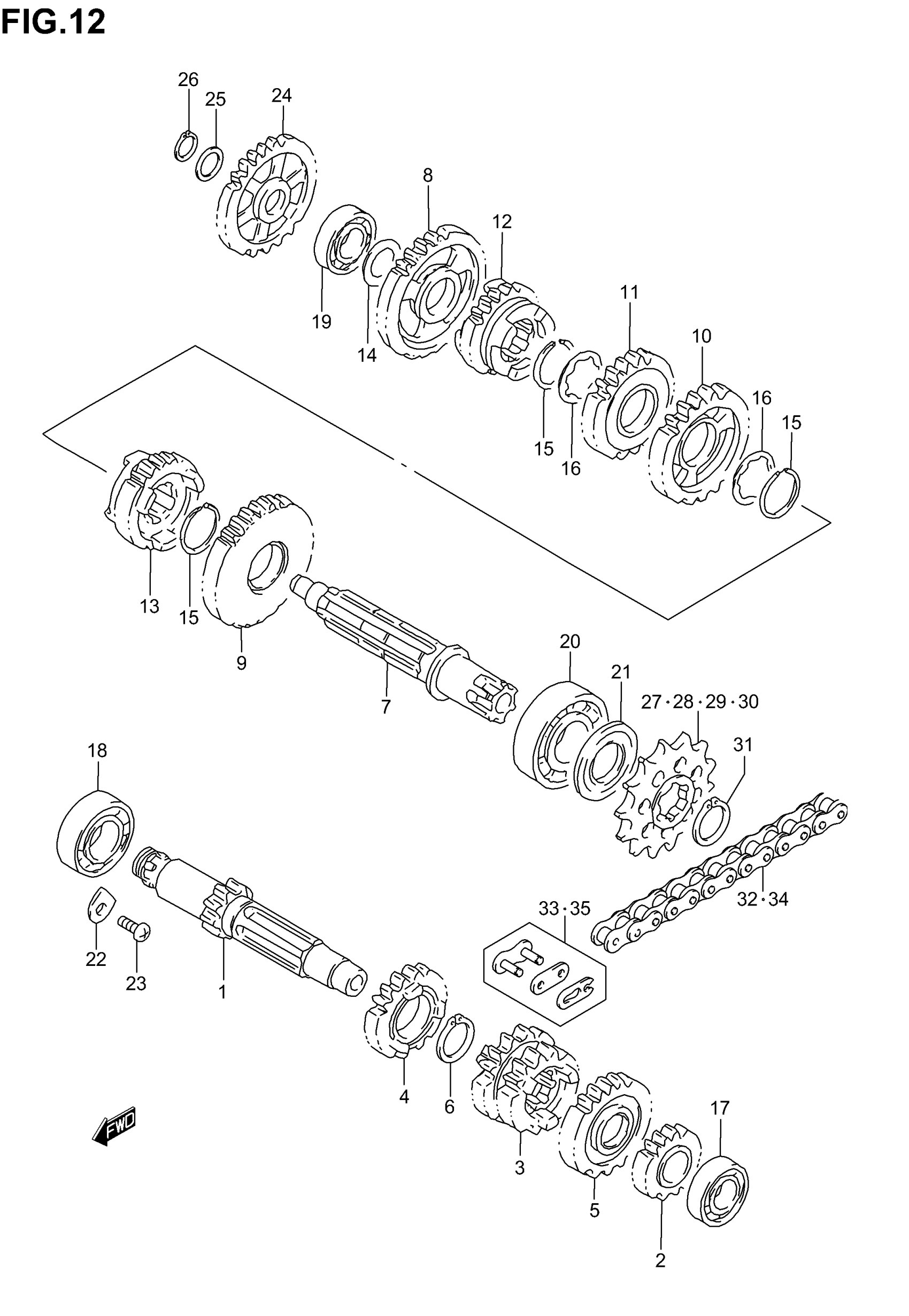

Suzuki RM85 (2006) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR (NT:11)

24121-02B42

$161.92

2

GEAR, 2ND DRIVE (NT:15)

24221-02B02

$40.16

3

GEAR, 3/4 DRIVE (NT:14/15)

24231-02B03

$122.53

4

GEAR, 5TH DRIVE (NT:18)

24251-02B02

$90.88

5

GEAR, 6TH DRIVE (NT:22)

24260-02B01

$98.98

6

CIRCLIP

09380-20009

$2.06

7

DRIVE SHAFT

24131-02B01

$194.00

8

GEAR, 1ST DRIVEN (NT:28)

24311-02B02

$127.82

9

GEAR, 2ND DRIVEN (NT:29)

24321-02B02

Unavailable

10

GEAR, 3RD DRIVEN (NT:22) | MODEL K2/K3 This part replaces 24331-03B01.

24331-03B02

$94.70

10

GEAR, 3RD DRIVEN (NT:22) | MODEL K4/K5/K6

24331-03B02

$94.70

11

GEAR, 4TH DRIVEN (NT:20) | MODEL K2/K3 This part replaces 24341-03B01.

24341-03B02

$64.45

11

GEAR, 4TH DRIVEN (NT:20) | MODEL K4/K5/K6

24341-03B02

$64.45

12

GEAR, 5TH DRIVEN (NT:21)

24351-02B02

$98.98

13

GEAR, 6TH DRIVEN (NT:23)

24361-02B03

$54.44

14

WASHER (15X26X1.0)

09181-15195

$2.59

15

CIRCLIP

09380-22006

$2.80

16

WASHER (22.1X27X0.5)

09167-22011

$2.95

17

BEARING, LH

08113-62027

$12.99

18

BEARING, RH (20X42X12)

09262-20106

$31.90

19

BEARING, RH

08113-62027

$12.99

20

BEARING, LH (20X47X14)

09262-20069

$21.00

21

OIL SEAL (20X35X5) | MODEL K2/K3/K4 This part replaces 09283-20038.

09283-20057

$5.51

21

OIL SEAL (20X35X5) | MODEL K5/K6

09283-20057

$5.51

22

RETAINER, BEARING

24741-21A00

$2.80

23

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

24

GEAR, KICK IDLE (NT:24)

26260-02B40

$86.48

25

WASHER (12X20X0.5)

09181-12158

$2.24

26

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

27

SPROCKET, ENGINE (NT:14) | RM80K2/K3/K4/K5/K6

27511-20421

$26.32

28

SPROCKET, ENGINE (NT:13) | RM80LK3/LK4/LK5/K6

27511-20401

$30.37

29

SPROCKET, ENGINE (NT:13) | OPT,RM80K2/K3/K4/K5/K6

27511-20401

$30.37

30

SPROCKET, ENGINE (NT:12) | OPT,RM80LK3/LK4/LK5/K6

27511-20411

$37.53

31

CIRCLIP

09380-20009

$2.06

32

CHAIN, DRIVE (DID428DS,118L) | RM80K2/K3/K4 This part replaces 27600-02B40-118.

27600-05350

$204.13

32

CHAIN, DRIVE (DID428DS,122L) | RM80LK3/LK4 This part replaces 27600-02B40-122.

27600-36611

Unavailable

33

JOINT SET, CHAIN | OPT RM80K2/K3/K4 RM80LK3/K4 This part replaces 27620-02B40.

27620-03B00

$12.62

34

CHAIN, DRIVE (DID428DS,118L) | RM80K5/K6

27600-05350

$204.13

34

CHAIN, DRIVE (DID428DS,122L) | RM80LK5/K6

27600-36611

Unavailable

35

JOINT SET, CHAIN | OPT RM80K5/K6 RM80LK5/LK6

27620-03B00

$12.62
