1999 Suzuki RM80 Crankcase Cover- Water Pump Diagram

← All diagrams

Find the part on the Crankcase Cover- Water Pump diagram for your 1999 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

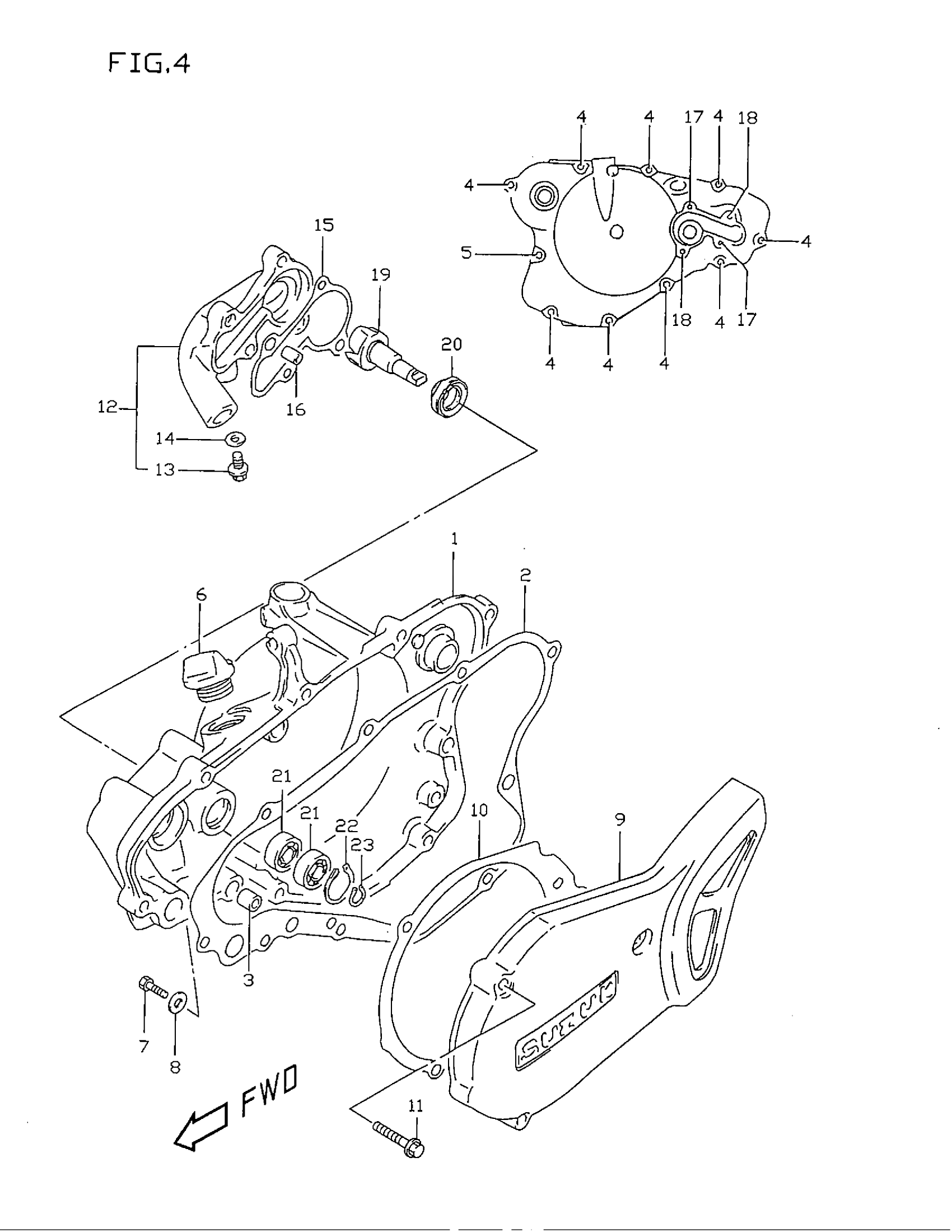

1999 Suzuki RM80 Crankcase Cover- Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 11341-02B42.

11341-02B43

1
Out of stock

3

PIN

04211-09129

2
Out of stock

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

9
Out of stock

5

1

$2.92

In stock

6

1

$3.90

In stock

7

SCREW (6X10) | MODEL T/V/W This part replaces 09128-06004.

09128-06044

1
Out of stock

7

SCREW, OIL LEVEL (6X10) | MODEL X

09128-06044

1
Out of stock

8

GASKET

09168-06004

1
Out of stock

9

COVER, MAGNETO

11351-02B41

1
Out of stock

10

GASKET, MAGNETO COVER

11483-02B50

1
Out of stock

11

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

3
Out of stock

12

CASE, WATER PUMP | Includes Item(s) 13 - 14

17410-02B44

1
Out of stock

13

BOLT, DRAIN

17415-43D00

1

$3.95

In stock

14

GASKET

17413-28C10

1

$2.48

In stock

16

PIN (L:12)

04211-09129

2
Out of stock

17

..BOLT This part replaces 01547-06203.

01547-0620B

2
Out of stock

18

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

2
Out of stock

19

1

$27.66

In stock

21

BEARING (8X19X6)

08113-06980

2

$12.27

In stock

22

CIRCLIP

09381-19003

1

$2.43

In stock

23

1

$1.90

In stock
