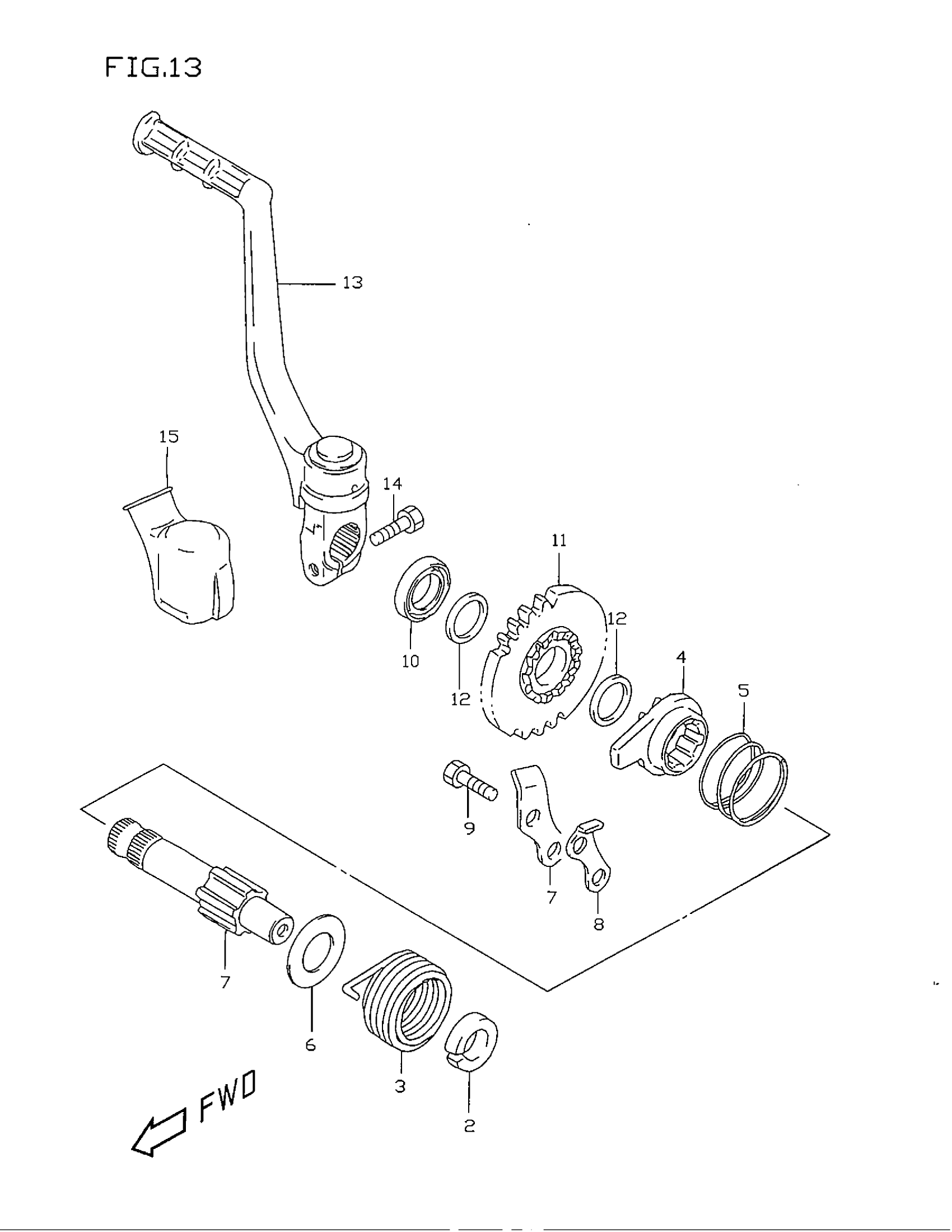

Suzuki RM80 (1999) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | MODEL T/V This part replaces 26211-02B02.

26211-02B04

$109.53

1

SHAFT, KICK STARTER | MODEL W/X This part replaces 26211-02B03.

26211-02B04

$109.53

2

GUIDE, SPRING

26221-02B00

$3.67

3

SPRING

09448-35007

$11.72

4

STARTER, KICK | MODEL T/V This part replaces 26231-02B00.

26231-02B02

$40.83

4

STARTER, KICK | MODEL W/X This part replaces 26231-02B01.

26231-02B02

$40.83

5

SPRING

09440-31002

$2.08

6

PLATE

08211-12301

$2.13

7

GUIDE, KICK STARTER

26232-40200

$7.98

8

STOPPER, KICK STARTER | MODEL T This part replaces 26233-40200.

26233-40201

$6.23

8

STOPPER, KICK STARTER | MODEL V/W/X

26233-40201

$6.23

9

BOLT This part replaces 01500-06123.

01500-0612A

$1.85

10

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$15.68

11

GEAR, KICK DRIVE (NT:26) | MODEL T This part replaces 26241-02B40.

26241-02B41

$94.70

11

GEAR, KICK DRIVE (NT:26) | MODEL V/W/X

26241-02B41

$94.70

12

WASHER (14X20X1.0) | MODEL T This part replaces 08211-14201.

09181-14139

$2.66

12

WASHER (14X20X1.0) | MODEL V/W/X

09181-14139

$2.66

13

LEVER, KICK STARTER

26300-02B12

$137.97

14

BOLT

01500-06207

$2.06

15

COVER,JOINT This part replaces 26341-20401.

26341-20402

$9.60
