1993 Suzuki RM80 Crankshaft Diagram

← All diagrams

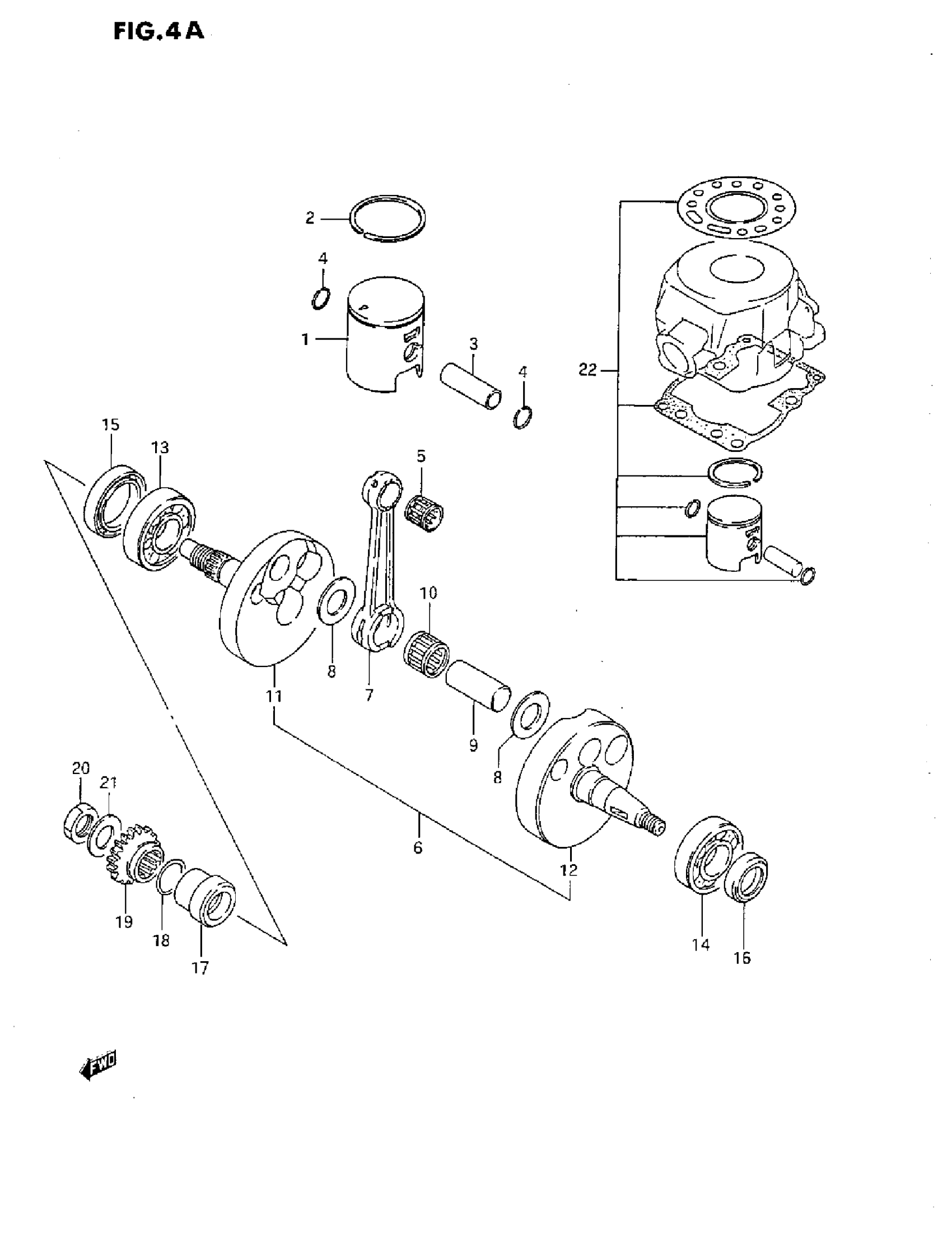

Find the part on the Crankshaft diagram for your 1993 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki RM80 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (STD) This part replaces 12110-02B21-0F0.

12110-02B22-0F0

1
Out of stock

1

PISTON SET | OPT This part replaces 12110-02B21-050.

12103-02811-050

1
Out of stock

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-02B21-100.

12103-02811-100

1
Out of stock

2

RING, PISTON This part replaces 12141-02B50.

12141-02B70

1
Out of stock

2

RING, PISTON ( OS:0.5) | OPT

12141-02B50-050

1
Out of stock

2

RING, PISTON (OS:1.0) | OPT

12141-02B50-100

1
Out of stock

3

PIN, PISTON

12151-20910

1
Out of stock

4

RING

09381-14001

2
Out of stock

5

BEARING, PISTON PIN

09263-14016

1
Out of stock

6

CRANKSHAFT ASSY

12200-02B10

1
Out of stock

7

ROD, CONNECTING

12161-02B10

1
Out of stock

8

WASHER

09160-18023

2
Out of stock

9

PIN, CRANK This part replaces 12211-20901.

12211-02B42

1
Out of stock

10

BEARING This part replaces 09263-18026.

09263-18026-0C0

1
Out of stock

11

CRANKSHAFT, RH

12221-02B10

1
Out of stock

12

CRANKSHAFT, LH

12261-02B10

1
Out of stock

13

1

$33.28

In stock

14

BEARING, LH (2OX47XL4)

09262-20083

1
Out of stock

15

OIL SEAL, RH (32X52X8.4)

09289-32003

1
Out of stock

16

OIL SEAL, LH (18X3OX8)

09283-18004

1
Out of stock

17

SPACER, PRI DRIVE GEAR

12359-02B00

1
Out of stock

18

0 RING

09280-20004

1
Out of stock

19

GEAR, PRIMARY DRIVE (NT:18)

21111-02B01

1
Out of stock

20

NUT

09140-16024

1
Out of stock

21

WASHER

09164-16002

1
Out of stock

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12101-02871.

12101-02872

1
Out of stock

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12101-02871-050.

12101-02872-050

1
Out of stock
