1993 Suzuki RM80 Crankcase Diagram

← All diagrams

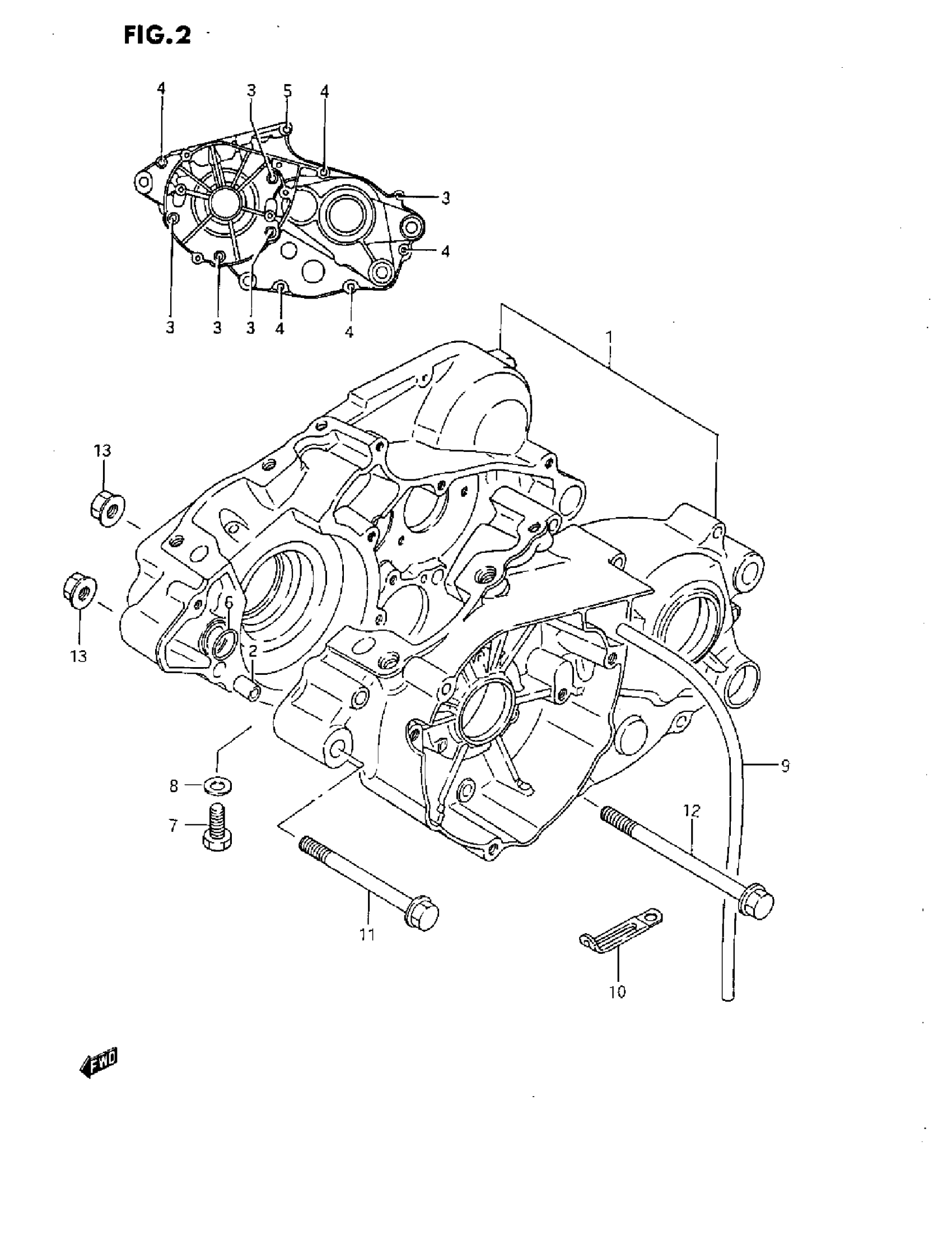

Find the part on the Crankcase diagram for your 1993 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki RM80 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11305-02820

1
Out of stock

2

PIN

04211-09129

2
Out of stock

3

SCREW (6X4D)

02112-06407

5

$1.94

In stock

4

5

$2.16

In stock

5

1

$2.75

In stock

6

0 RING

09280-14004

1

$1.80

In stock

7

1

$2.68

In stock

8

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

10

1

$1.86

In stock

11

BOLT (8X95)

09103-08183

1
Out of stock

12

BOLT (8XLO5)

09103-08184

1
Out of stock

13

NUT

09159-08067

2

$5.39

In stock
